S90-500 O
Page 20

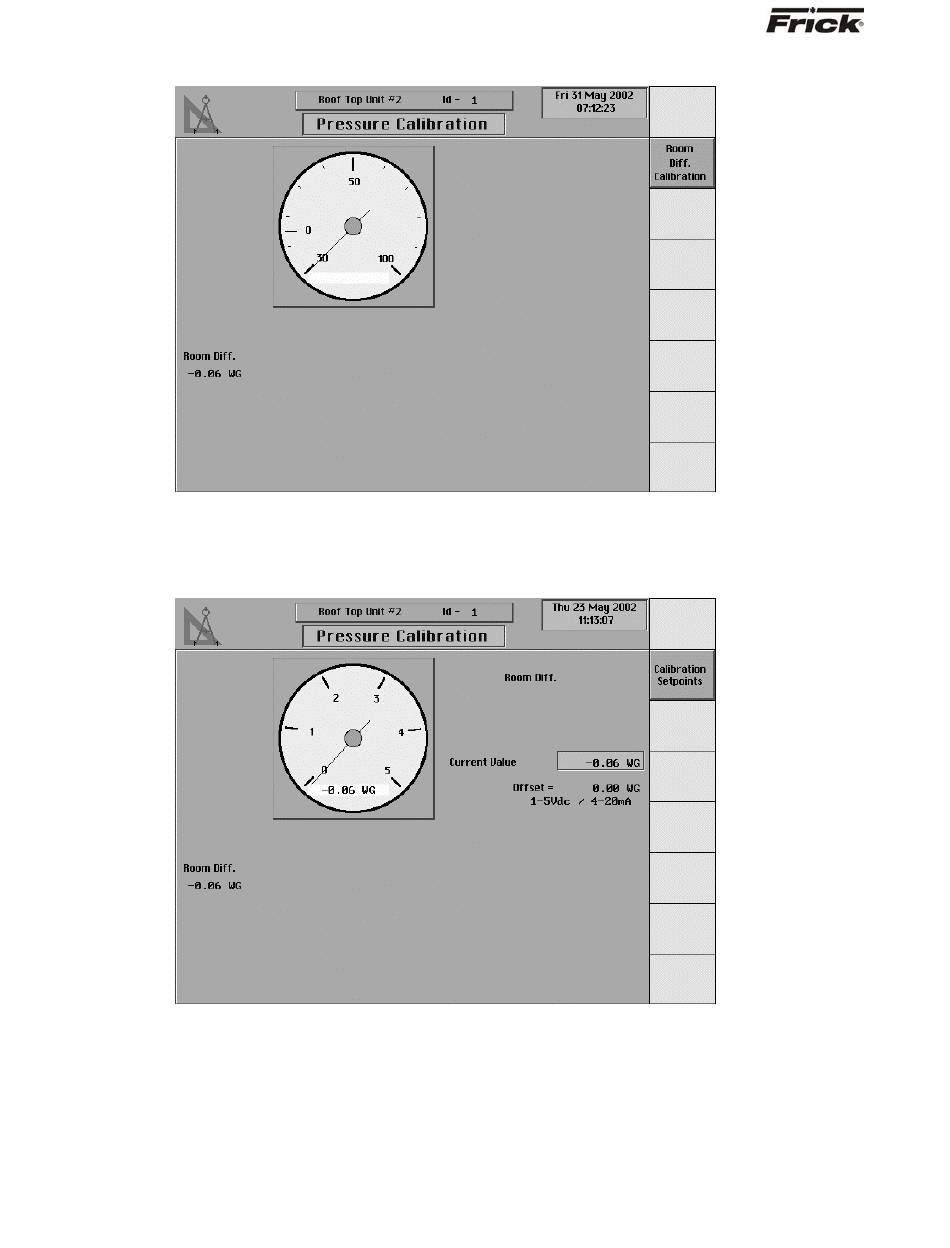

ANALOG CALIBRATION - "PRESSURE CALIBRATION" SCREEN
A screen key exists for each of the displayed analog
readings. This screen shows a pressure gauge and the
current pressure reading for:
When a pressure calibration is selected, the identification
of the pressure measurement transducer and its settings
are shown. It is at this time that the pressure gauge will
®
FRICK
QUANTUM™ ACUair
OPERATION
®
CONTROL PANEL
Room Differential
·
also show the current reading. Select the [Calibration
Setpoints] screen key to modify the present calibration
.
