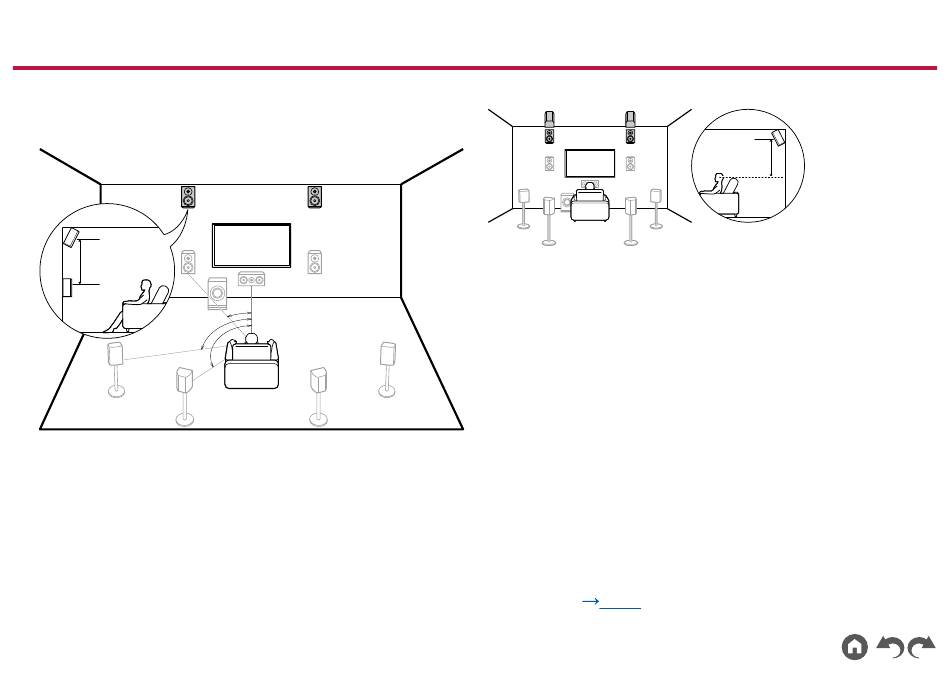

‰ Combination example when Front High
Speakers are used at the front
About the front high speakers

3´ (0.9 m)
or more
b
c
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
Install the front high speakers immediately above the front speakers minimum of
3'/0.9 m higher, and tilted so they will point toward the listener. When the front
high speakers are used in front, the combination of the height speakers at the
rear can be selected from the following 5 examples shown at the right.
9,10 Front High Speakers
Contents

a
Connections
≫
(Example 1) Use rear high speakers at the rear
 
 
The width between the rear high speakers should match the one for the front
speakers, and they should be installed minimum of 3'/0.9 m higher than the front
speakers, and tilted so they will point toward the listener.
11,12 Rear High Speakers
‰ Speaker Layouts and Selectable Listening
Modes ( p136)
