Section 3 Product Description

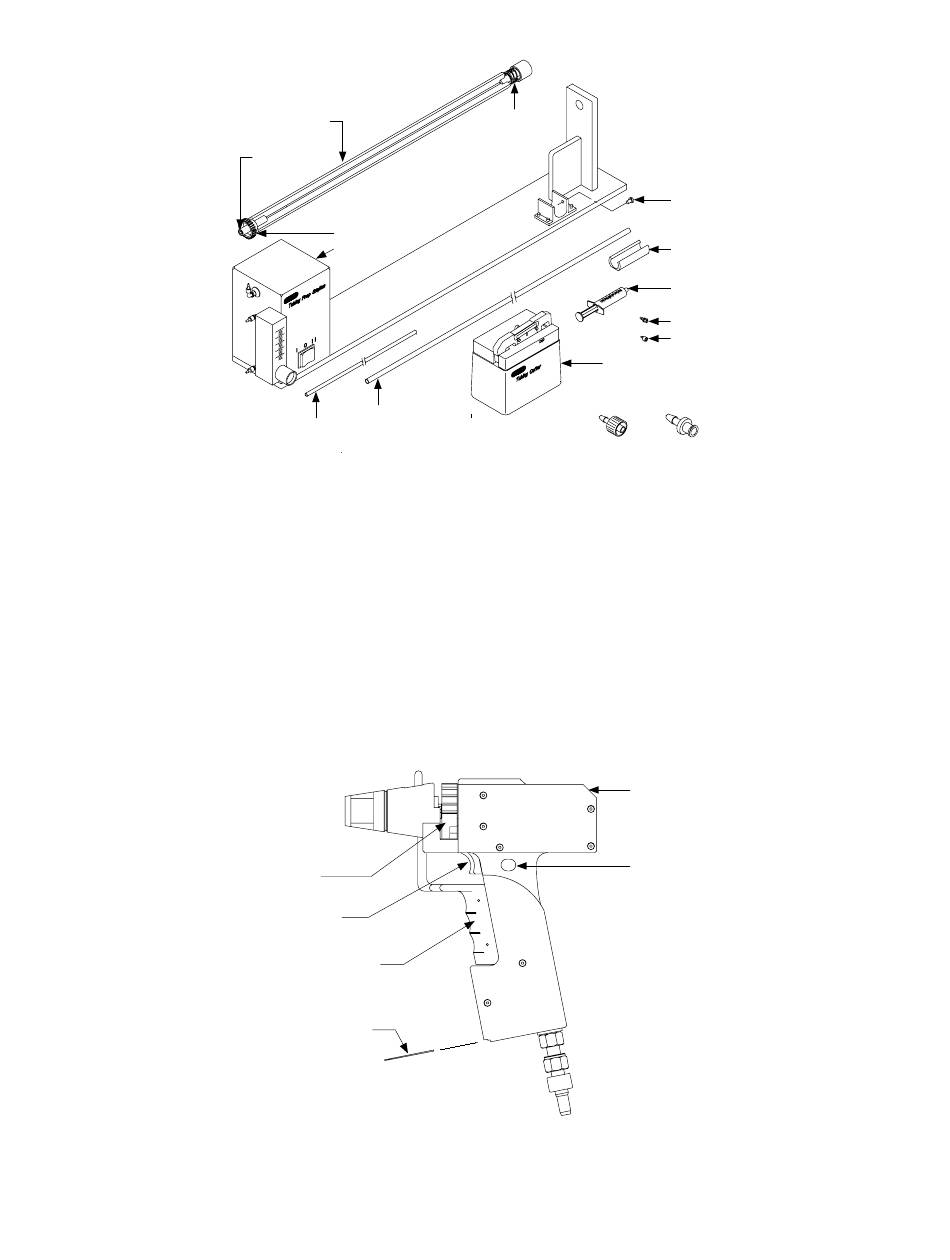

Fig. 4. Components of the Tubing Prep Station.

Identification of System Components and Controls

Helios Gene Gun
The locations front and back refer to the barrel end and LED display end of the Helios Gene Gun,
respectively. The locations left and right refer to the left and right sides of the Gene Gun from the viewpoint
of the user holding the device. Top and bottom refer to the side of the gun that the cartridge holder is on
and the side of the gun where the helium hose connects, respectively (see Figure 5).
Fig. 5. Components and controls on the Helios Gene Gun.
10 | Helios Gene Gun System
Tubing support
cylinder
O-ring
Spur gear
Tube prep unit
Nitrogen hose (12')
Syringe adaptor
tubing (5')
FRONT
Push bar
Trigger button
Cylinder advance lever
Battery access cover
Spring
Tubing cutter
Male and female luer detail
Male Female
TOP
LED display
Safety interlock button
Syringe sleeve screw
10 cc syringe sleeve
10 cc syringe (5x)
Female luer (see detail)
Male luer (see detail)
BACK
