Drawing Regions - Brother 882-W80 Operation Manual

Hide thumbs

Advertisement

Stitch types
Zigzag stitch
Running stitch
Triple stitch
Candlewicking stitch
Chain stitch
Line without stitch for creating a region.
Created region will be defined by the gray line.
b
Press
to return to the pattern drawing screen.
 The color bar on the line tool key is changed to the
selected color.
*
The appearance of the line does not change even if
the line type was changed. The specified line type
can be checked in the stitch settings screen.
1 Color bar
c
Press
then press on the line to change its color.
 The connected line will be changed to the selected
color.
Memo
• Press
to magnify the image when you cannot
press on the line correctly.
• Press
, and then select a color within the
pattern drawing area to apply the same color to
other lines or parts of the pattern.
1
1 Use
to select the line color.
2
2 Press
for changing the line color, and then
select the pattern to be changed.

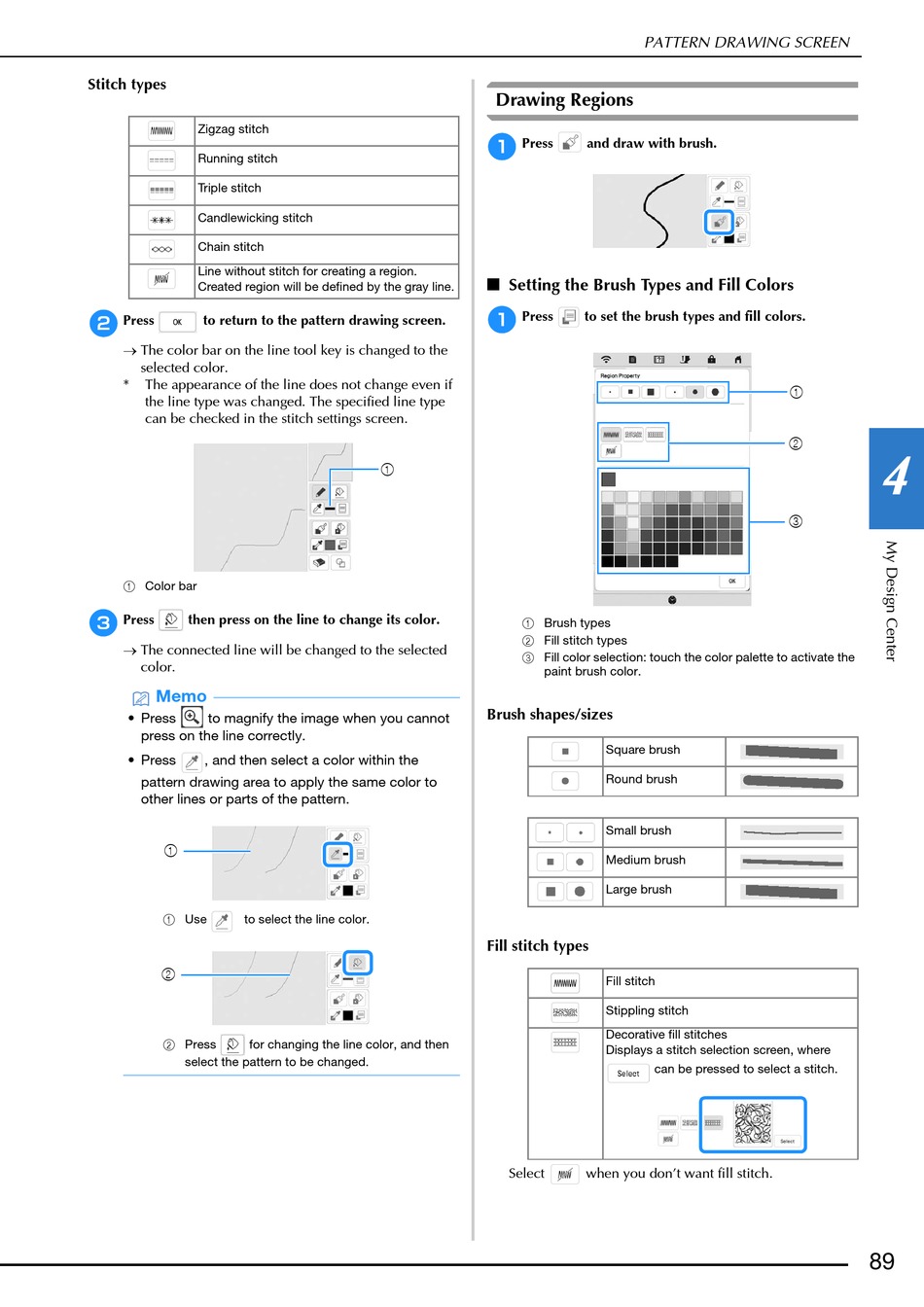

Drawing Regions

a
Press
■ Setting the Brush Types and Fill Colors
a
Press
1
1 Brush types
2 Fill stitch types
3 Fill color selection: touch the color palette to activate the
paint brush color.
Brush shapes/sizes
Fill stitch types
Select
PATTERN DRAWING SCREEN
and draw with brush.
to set the brush types and fill colors.
Square brush
Round brush
Small brush
Medium brush
Large brush
Fill stitch
Stippling stitch
Decorative fill stitches
Displays a stitch selection screen, where
can be pressed to select a stitch.
when you don't want fill stitch.
1
2
4
3
89
