36

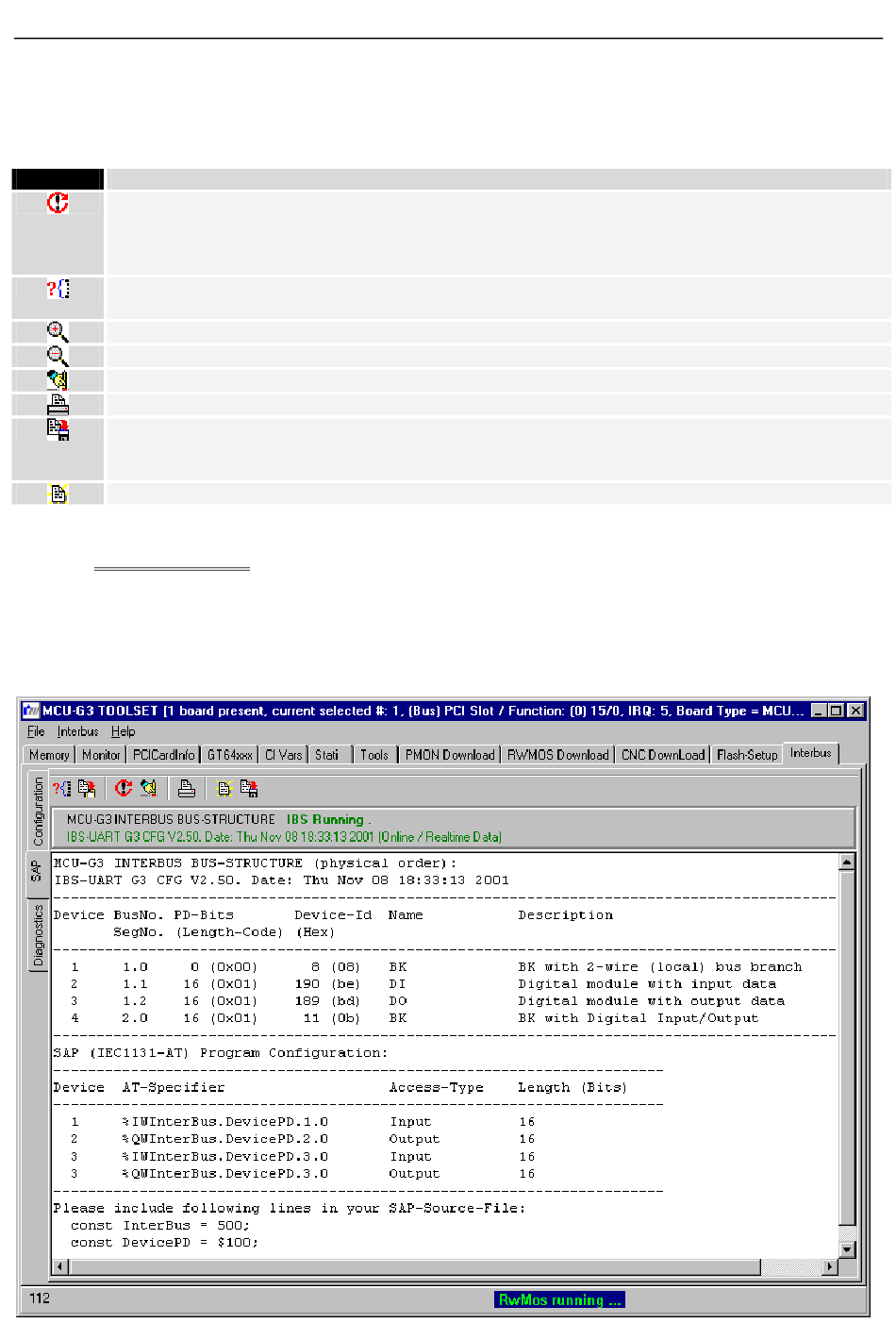

The following table explains the graphic operating symbols (speed buttons) from the screenshot above.

Table 2-1: Meaning of the symbols on the [Interbus][Configuration] page

Symbol
Meaning
Interbus initialisation. All devices connected to the Interbus are automatically detected. The
subscribers found are displayed on the screen in a graphical overview (as above). After
successful initialisation, the Interbus is in run mode (IBS running...). Before executing the
initialisation, saved error messages may be deleted.
Read in the last detected Interbus configuration from the APCI-8001. The data that was detected
during the last Interbus initialisation is analysed.
The current device directory tree is expanded. All available information is displayed.
The current device directory tree is collapsed. Only the bus nodes are displayed.
If errors appeared, they can be deleted using this button.
The current configuration can be printed on a printer for documentation purposes.
The current configuration can be saved in a binary file. The default file extension is "cfg", which
stands for "configuration data". This data can be used for further processing at another
workstation or for archiving or documentation purposes.
A saved configuration can be opened and displayed graphically on the screen.
2.2.3.2

Interbus page: SAP

On the "SAP" page, the bus structure that is connected to the OPIBS can be displayed in text form, as
shown in the screenshot below.

Figure 2-2: Interbus SAP

O
PTIONS MANUAL
