2.2.3

fwsetup.exe help programme

Using the fwsetup.exe TOOLSET programme, the bus structure that is connected to the APCI-8001 can be
determined automatically, provided the connected bus is in a proper state. The additional planning options
for the OPIBS can be set in the [Interbus] menu. At present, there are three different pages providing
important information on the current bus structure and state. Various data contained in these are required for
SAP or PCAP programming.
2.2.3.1

Interbus page: Configuration

On the "Configuration" page, the bus structure that is connected to the OPIBS can be displayed graphically
in tree form, as shown in the screenshot below. In the top hierarchy level, the bus couplers (bus nodes) are
listed with the device name and plain text description. The individual modules are displayed below this, with
their specific properties, such as device name, description, access mode, and word width.

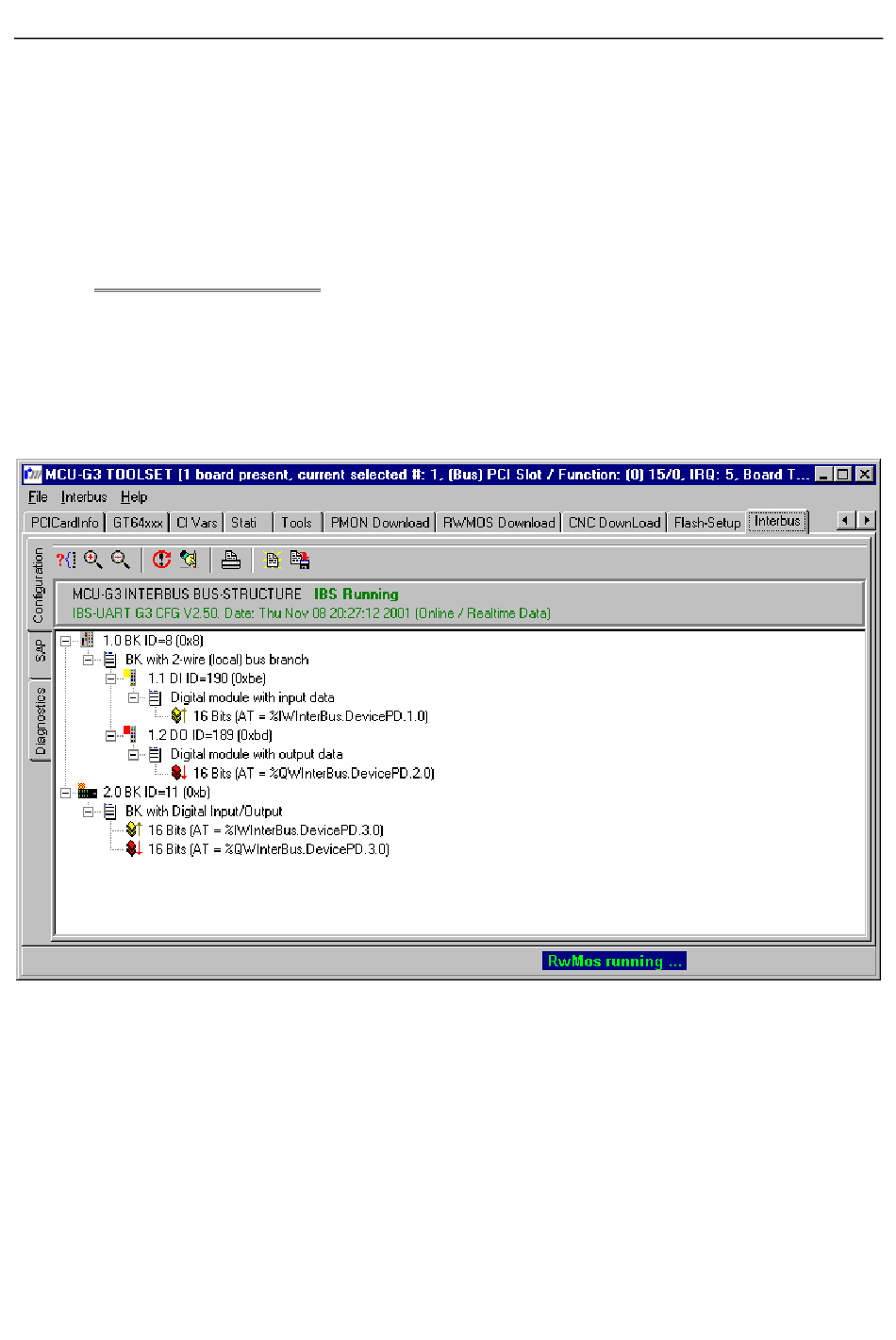

Figure 2-1: Interbus configuration

In order to activate this screen, the rwmos.elf operating system must already be launched on the board
(online mode, RwMos running)
