Product Description
VGA Output

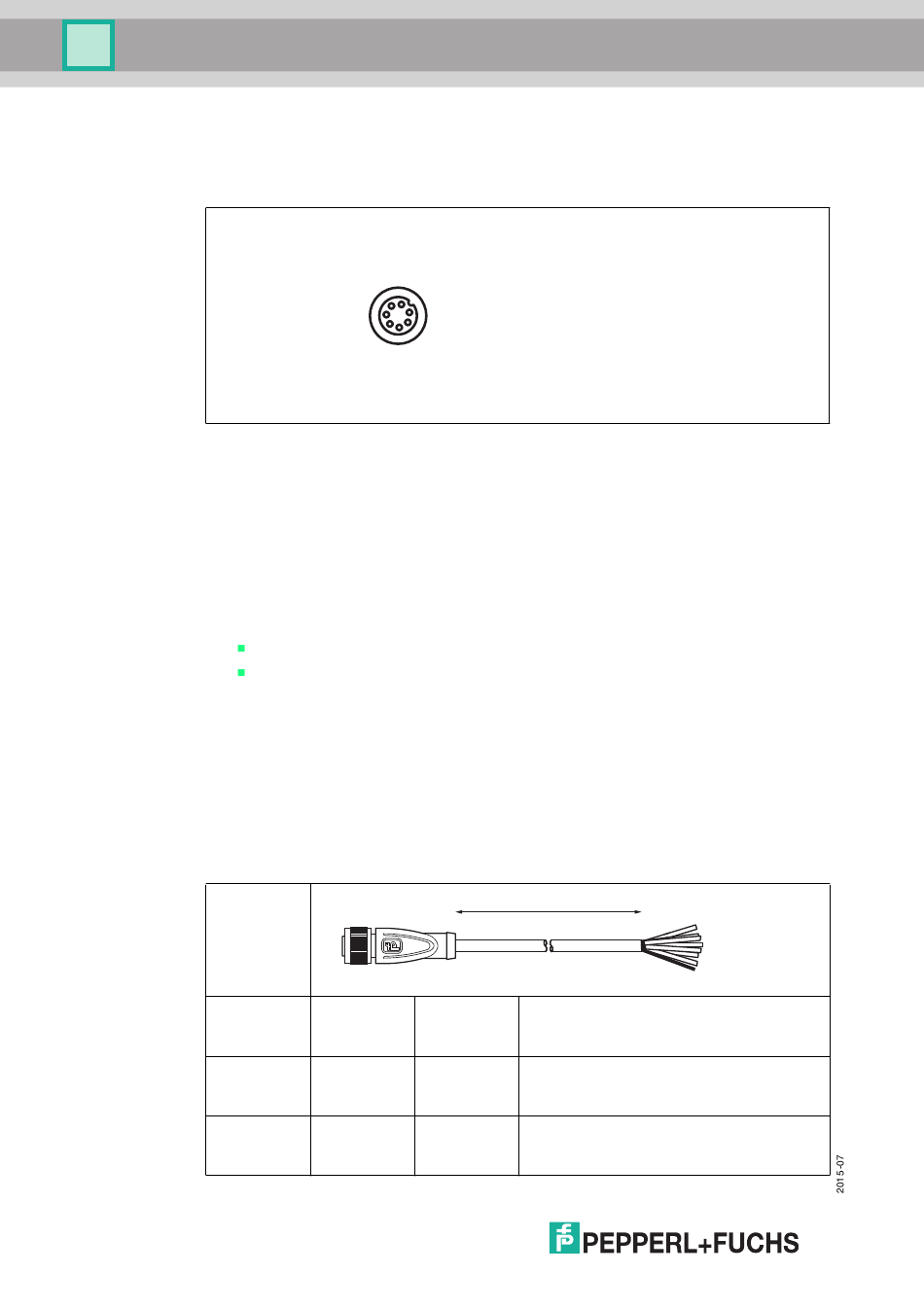

There is a 7-pin M9 socket on the back of the sensor housing to connect the VGA
plug. The following diagram shows the pinning:
1. OUT VSYNC
2. GND
3. OUT R
4. OUT G
5. GND
6. OUT B
7. OUT HSYNC
4.4

Scope of Delivery

4.5

Accessories

Various accessories are available.
4.5.1

Power Supply

Use the following double-ended cordset to connect the power supply, inputs, and
outputs to the sensor.
Female field connector
Model
number
V19-G-2M-
PUR-ABG
V19-G-5M-
PUR-ABG
V19-G-
10M-PUR-
ABG
16
1
7
6
3
5
4
Optical Print Inspector
Quick start guide
8-pin M12 L = 2 m
socket,
straight
8-pin M12 L = 5 m
socket,
straight
8-pin M12 L = 10 m
socket,
straight
2
L
Open cable end with multistranded
conductors
Open cable end with multistranded
conductors
Open cable end with multistranded
conductors
