OPC / OPD / OPE
Product Description

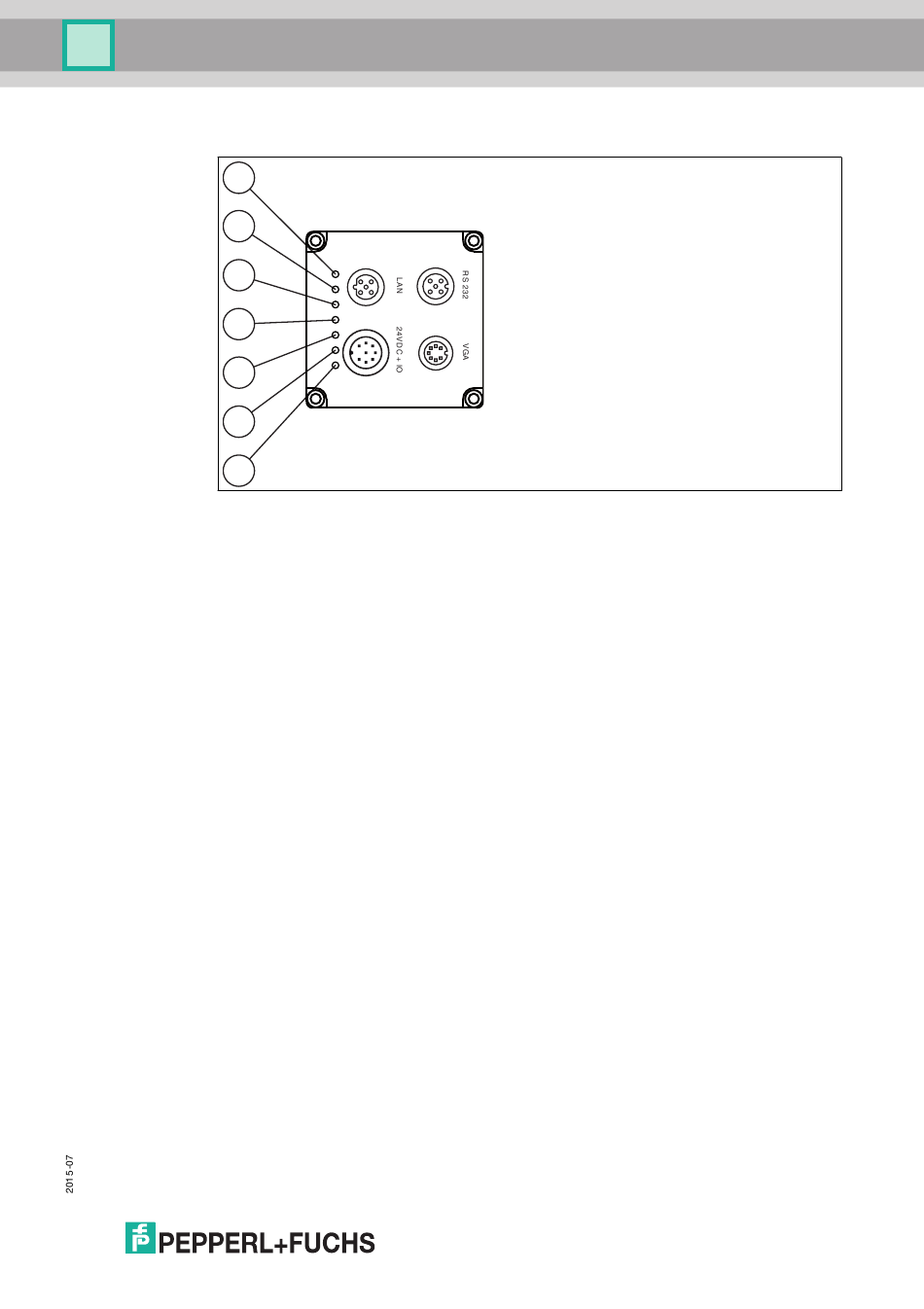

OPE reader
1
2
3
4
5
6
7
1. Network (LAN):
Lights up yellow as soon as a physical connection is established.
2. Trigger (TRG):
Lights up yellow when a connected trigger sensor is activated.
3. Good (Good):
Lights up green if the reading is successful.
4. Error (Fail):
Lights up red if the reading is unsuccessful.
5. Result (Match):
Flashes green if the match code matches the read code.
Flashes red if the match code does not match the read code.
6. Status (Status):
Briefly flashes yellow when the device is switched on.
Flashes yellow during a firmware update.
Lights up green when the device is ready.
Lights up red in the event of a device error.
7. Power (PWR):
Lights up green when the sensor is connected to a power supply.
LAN
TRG
Good
Fail
Match
Status
PWR
