OPC / OPD / OPE
Product Description
Other lengths on request.

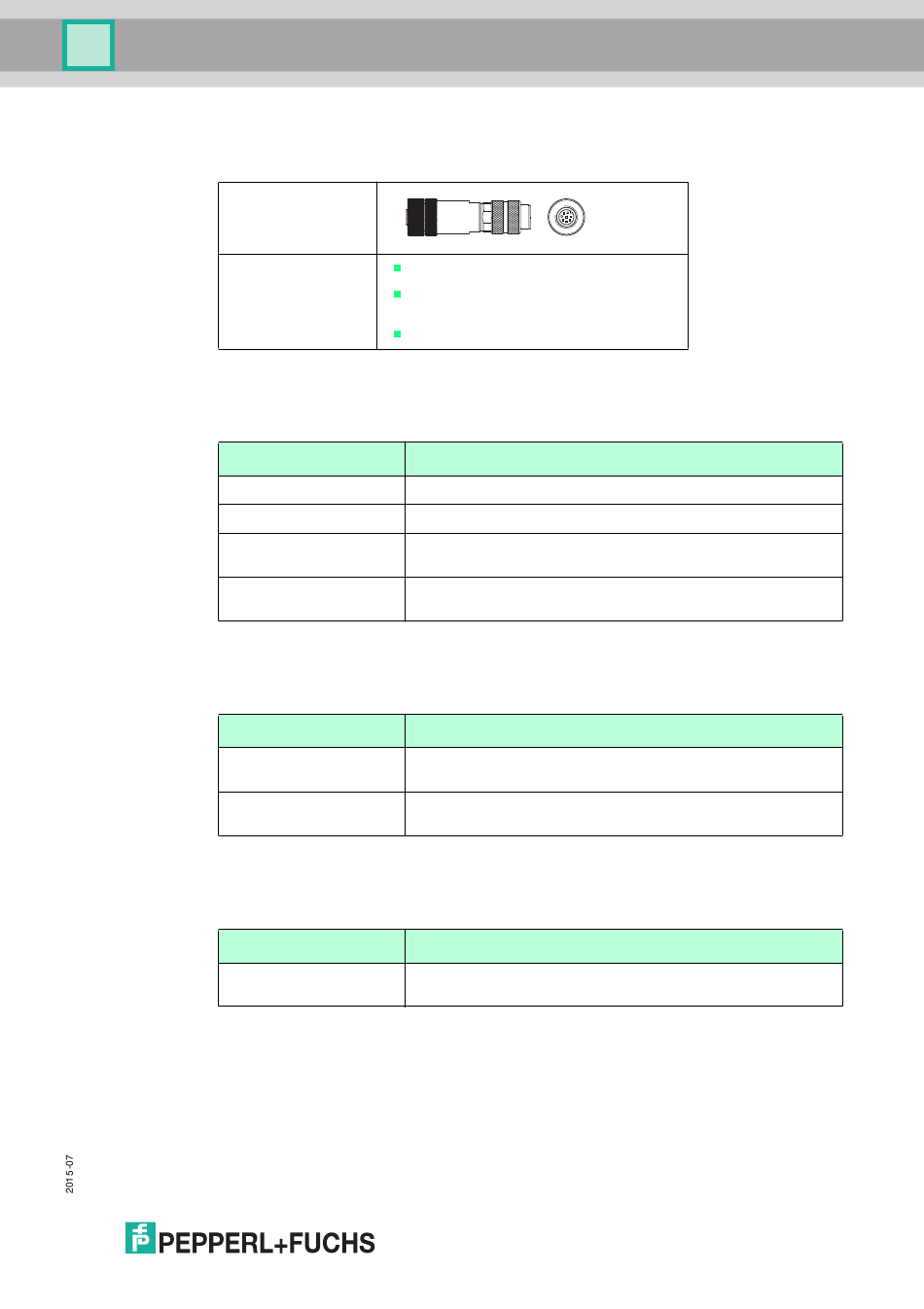

Field-attachable M12 socket
Model number
V19-G-ABG-PG9
4.5.2
Network Cable
The sensor is connected to the network using an M12 plug.
Designation
V45-G
V1S-G
V1SD-G-2M-PUR-
ABG-V45X-G
V1SD-G-2M-PUR-
ABG-V45-G
4.5.3
RS-232 Interface
The sensor's RS-232 interface is connected via an M12 plug.
Designation
V15S-G-5M-PUR-ABG
V15S-G-5M-PUR-ABG-
SUBD9
4.5.4
VGA Output
The sensor is connected to a monitor using an M9 plug.
Designation
ODZ-MAC-CAB-VIDEO
8-pin M12 socket, straight
Screw terminals for max. 0.75 mm
cable gland
Cable diameter : 5 mm ... 8 mm
Description
RJ45 network plug, field attachable
M12 plug, 4-pin, field attachable
Double-ended cordset, RJ45 network plug with M12 plug,
crossed, 4-pin
Double-ended cordset, RJ45 network plug with M12 plug, 4-
pin
Description
Male single-ended cordset, M12, 5-pin, PUR cable, shielded
cap nut
Connection cable, M12 plug, 5-pin, 9-pin to D-Sub housing
Description
Video connection cable, round plug, 7-pin on D-Sub socket,
15-pin VGA, length: 2 m
2
PG9
17
