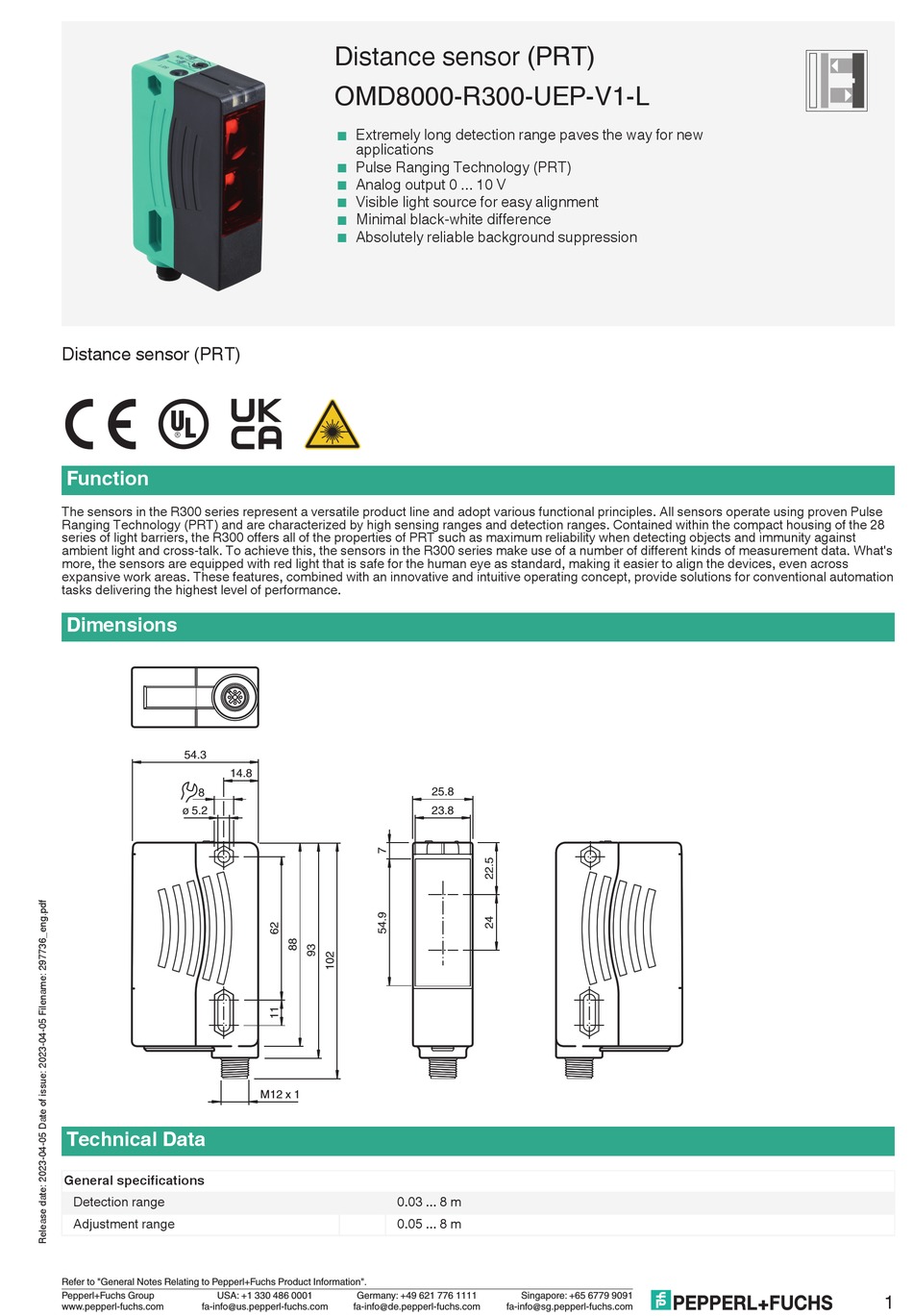

Pepperl+Fuchs OMD8000-R300-UEP-V1-L Manual

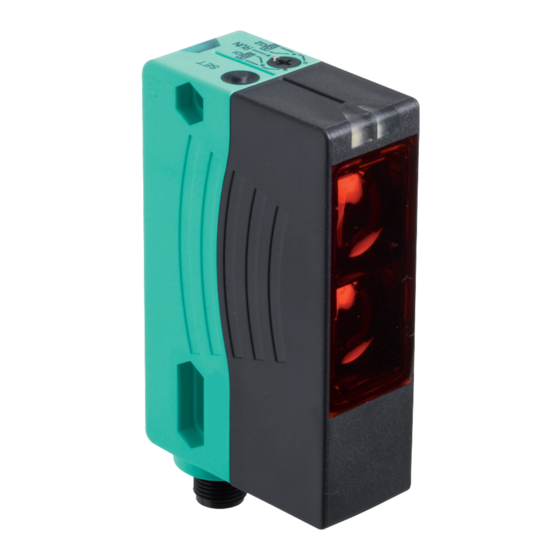

Distance sensor (PRT)

Function

The sensors in the R300 series represent a versatile product line and adopt various functional principles. All sensors operate using proven Pulse
Ranging Technology (PRT) and are characterized by high sensing ranges and detection ranges. Contained within the compact housing of the 28
series of light barriers, the R300 offers all of the properties of PRT such as maximum reliability when detecting objects and immunity against
ambient light and cross-talk. To achieve this, the sensors in the R300 series make use of a number of different kinds of measurement data. What's
more, the sensors are equipped with red light that is safe for the human eye as standard, making it easier to align the devices, even across
expansive work areas. These features, combined with an innovative and intuitive operating concept, provide solutions for conventional automation
tasks delivering the highest level of performance.

Dimensions

54.3
14.8
8
ø 5.2
Technical Data
General specifications
Detection range
Adjustment range
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Distance sensor (PRT)
OMD8000-R300-UEP-V1-L
< Extremely long detection range paves the way for new
applications
<
Pulse Ranging Technology (PRT)
<
Analog output 0 ... 10 V
< Visible light source for easy alignment
< Minimal black-white difference
< Absolutely reliable background suppression
25.8
23.8
M12 x 1
0.03 ... 8 m
0.05 ... 8 m
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
