Pepperl+Fuchs OPC Manual page 37

OPC / OPD / OPE
Vision Configurator Software

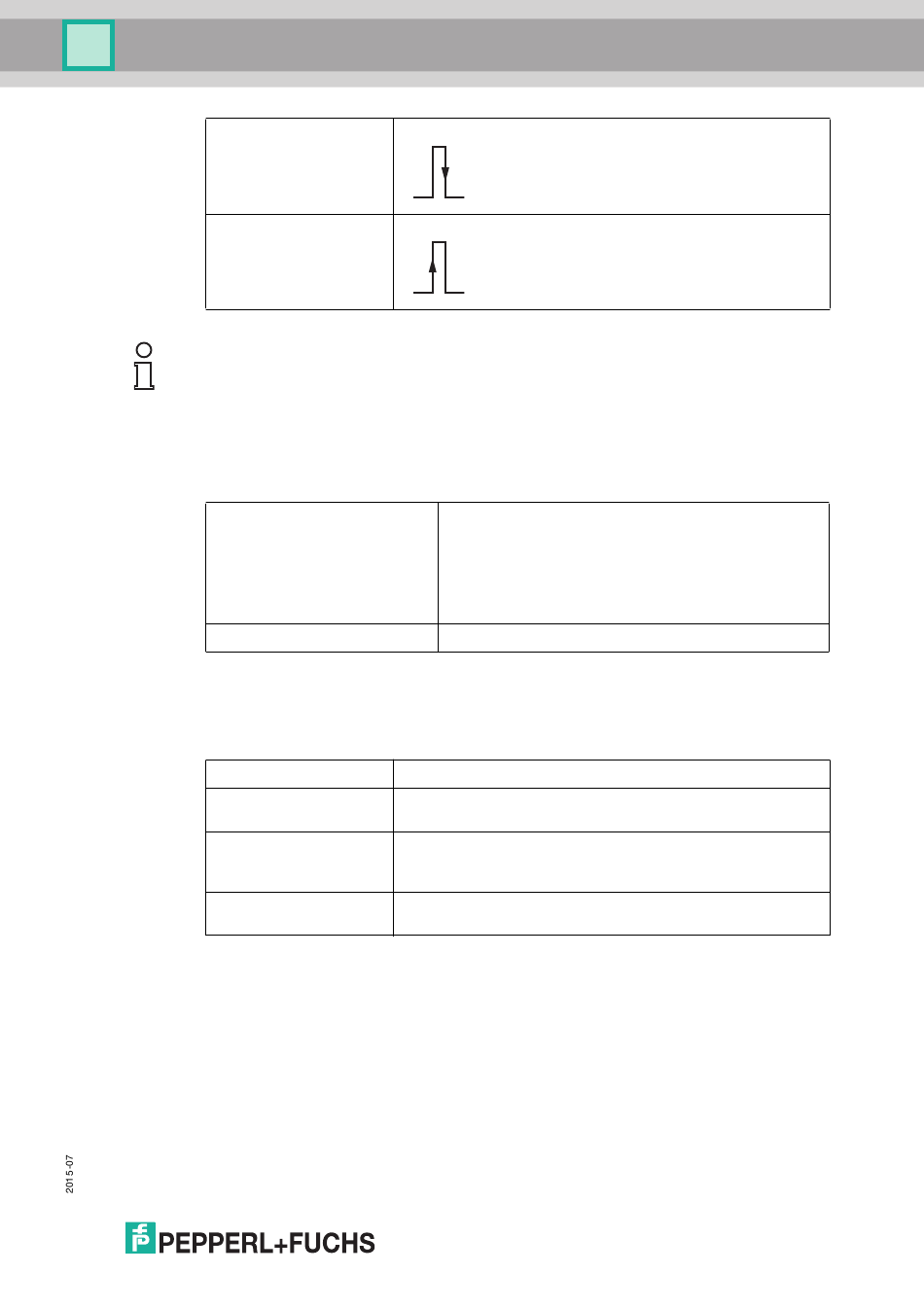

Negative edge
Positive edge
Note!
Use the Encoder trigger trigger mode in conjunction with 1-D barcodes only.
The Level Trigger Settings menu item is active only if you have selected Level
trigger under Direct Trigger Mode.
Level Trigger Settings
Continue when connected
Cycle time
The Encoder Details menu item is active only if you have selected Encoder
trigger under Trigger Mode.
Encoder Details
Encoder resolution
Trigger offset
Target distance
Sheet length
The falling edge activates a trigger
The rising edge activates a trigger
Emergency switch for a continuous trigger. If this is
enabled, the sensor operates continuously. Disable
this option to interrupt the sensor's task.
For example, if Level trigger is selected in conjunction
with Negative edge, the sensor will operate
continuously until the next rising edge occurs. Disable
this option to interrupt this status.
Time between two reads in ms
Rotary encoder resolution in increments/m
Distance in mm between trigger (e.g., light barrier) and optical
axis of sensor
Read distance in mm
Distance from the sensor lens to the object on which the code
is located (OPC120* only)
Object's length in mm
Length of the object on which the code is located
