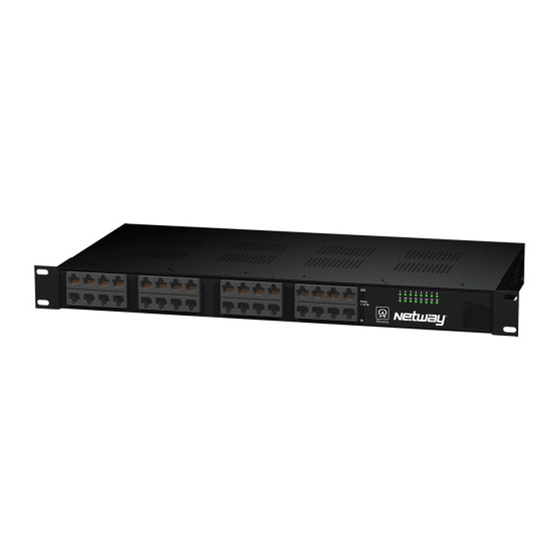

Altronix NetWay8 Installation Manual

Poe solution for standard network infrastructure
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Power over the Ethernet
PoE Solution for Standard
Network Infrastructure
Installation Guide
Models Include:
NetWay8
NetWay16
- Eight (8) Port PoE Midspan Injector
- Sixteen (16) Port PoE Midspan Injector
DOC#: NET
More than just power.™
Rev. 052110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetWay8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix NetWay8

Summary of Contents for Altronix NetWay8

  • Page 1 Power over the Ethernet PoE Solution for Standard Network Infrastructure Installation Guide Models Include: NetWay8 NetWay16 - Eight (8) Port PoE Midspan Injector - Sixteen (16) Port PoE Midspan Injector DOC#: NET More than just power.™ Rev. 052110...

  • Page 2: Common Specifications

    Overview: Altronix NetWay8/NetWay16 Midspans provide power and pass data for PoE and PoE+ compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT (PoE) or NetWayXTX (PoE+) re- peater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement.
  • Page 3 AC POWER 1a OUT 1-8 (NetWay8), OUT 1-16 (NetWay16): Structured cable to PoE compliant cameras/edge devices. 1b IN 1-8 (NetWay8), IN 1-16 (NetWay16): Structured cable to ethernet switch or video server. 1c LED(s) 1-8 (NetWay8), 1-16 (NetWay16): Port status LEDs.
  • Page 4 2. Connect structured cable from port marked [IN] on Fig. 2 - NetWay1512 NetWay1512 to any ports marked [OUT] of NetWay8/ NetWay16 (Fig. 2, pg. 4, Fig. 1a, pg. 3). 3. Connect structured cable from port marked [OUT] on NetWay1512 to the IP camera (Fig.

  • Page 5: Technical Specifications

    IP camera NetWay8 Ethernet Switch NVR/Network Server Technical Specifications: Parameter Description NetWay8 - Eight (8) Ports. No. of Ports NetWay16 - Sixteen (16) Ports. NetWay8: 115VAC 60Hz, 3A. NetWay16: 115VAC 60Hz, 4.9A. Input power requirements Fuse: 4A/125V (NetWay16 has 2 fuses).
  • Page 6 NetWay8/NetWay16 Rack Mount Chassis Mechanical Drawing and Dimensions: Fig. 6 0.75" (19.05mm) 19.125" (485.77mm) 17.625" (447.67mm) 8.5" (215.9mm) 1.625" (41.27mm) (ON) AC POWER The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient...

  • Page 7: Rack Mount Installation

    (Fig. 8). 2- Place unit in desired location. Fig. 8 Two (2) mounting brackets Left Side Six (6) flat head screws for mounting brackets. Four (4) rubber pads. Rubber Pad NetWay8/NetWay16 - 7 -...
  • Page 8 Notes: Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER IINetWay8/NetWay16 G05P...
