Section 3 - Configuration
QoS classes are subfilters that feed into the larger QoS Queues.
Name:
Enter the name of the queue. This is for user reference only, and
does not affect functionality.
Class Enable:
Check this box to enable the queue.
Ingress
Specify the inbound interface to which classification will apply.
Interface:
Ether Type:
Select an Ether Type from the dropdown menu. Depending on
the type selected, the other options on this page may change.
Packet
Specify whether the class will be triggered by a packet length
Length Rule:
of Greater than, Less than, or Equal to the length specified in
Packet Length.
Packet
Enter a packet length in bytes between 46 and 1500 that will
Length:
trigger the above classification.
Source MAC
Enter a source MAC address to which the class will apply.
Address:
(Optional)
Source MAC
Specify the MAC Mask used to filter MAC addresses. (Optional)
Mask:
Destination
Enter a destination MAC address to which the rule will apply.
MAC Address:
(Optional)class
Destination
Specify the MAC Mask used to filter MAC addresses. (Optional)
MAC Mask:
D-Link DWR-961 User Manual

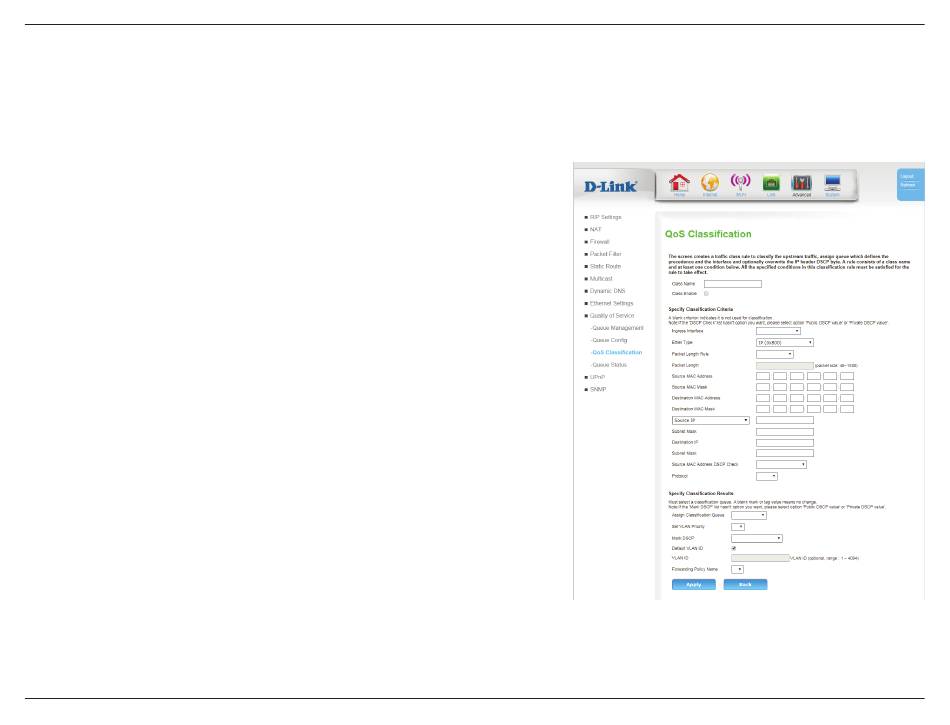

QoS Classification - Add
97
