Section 3 - Configuration

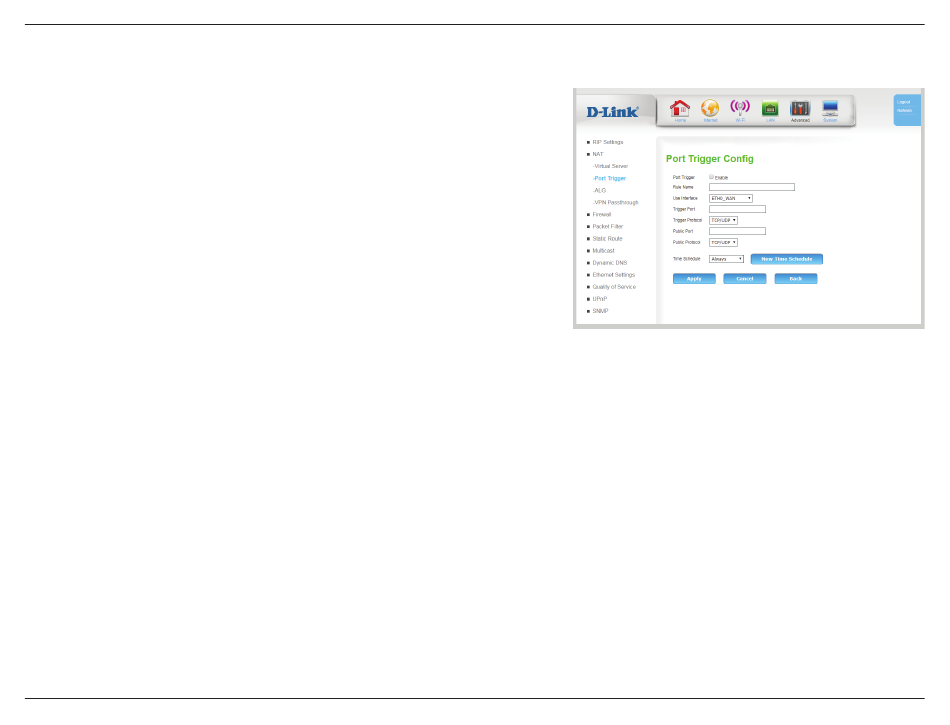

Port Trigger Config
Port Trigger
Check this box to enable the port trigger.
Rule Name:
Specify the name of the rule for reference.
Use Interface:
Specify which interface the rule is bound to.
Trigger Port:
Specify the internal port that will initiate the port trigger.
Trigger
Specify the protocol that will initiate the port trigger.
Protocol:
Public Port:
Specify the public port(s) that to which the trigger will forward.
Public
Select a public protocol
Protocol:
Time
Select the time schedule during which the port trigger rule is
Schedule:
active. To create a new time schedule, click New Time Schedule.
Click Apply to save your settings, Cancel to revert to your previous settings, or Back
to return to the previous screen.
D-Link DWR-961 User Manual
Port Trigger Config
60
