Electrical Installation

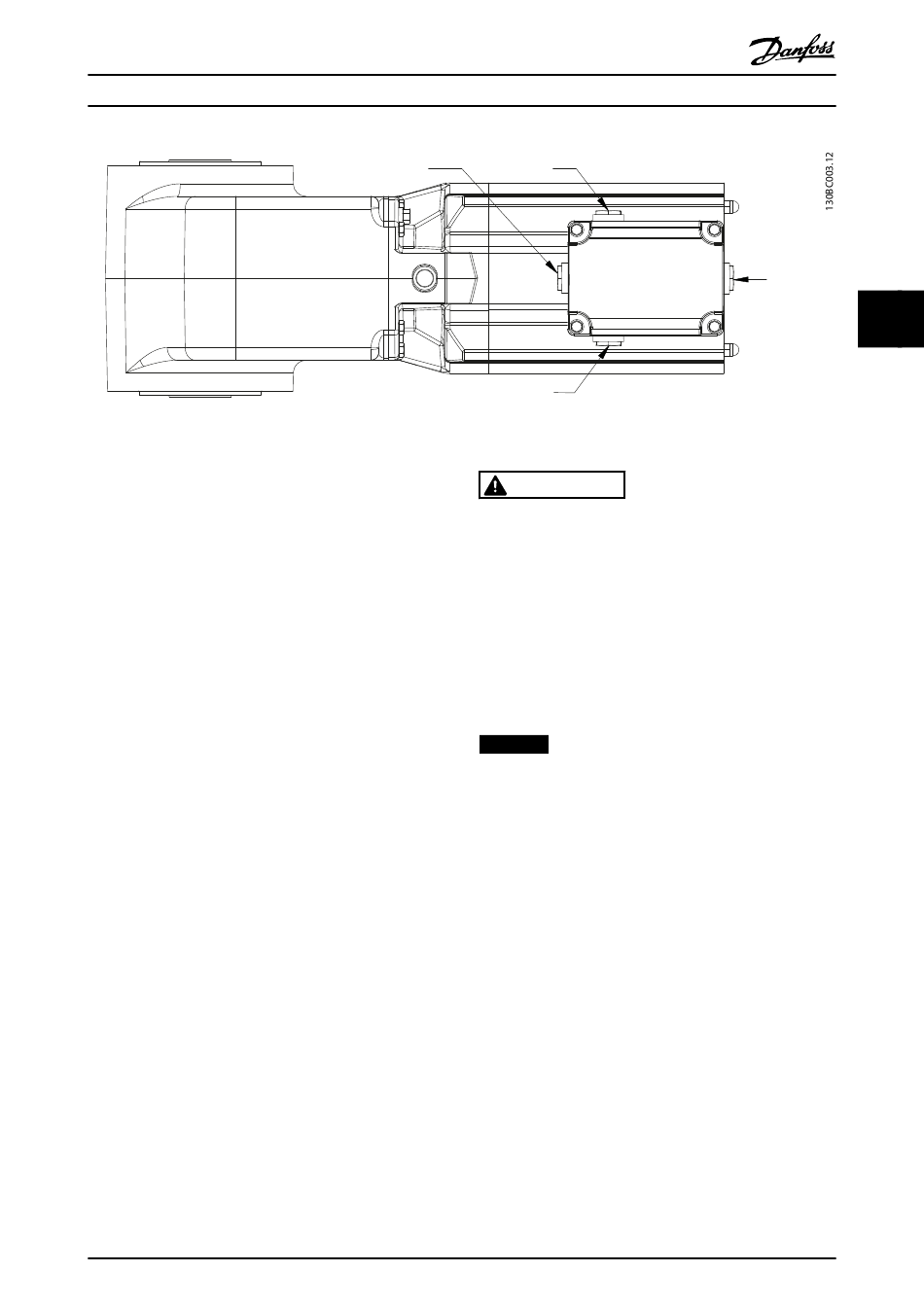

Illustration 4.2 Terminal Box Screws

4.3.1 Connection

The terminal box may only be opened once it has been
ensured that the power is switched off. The information on
voltage and frequency on the nameplate must correspond
with the mains voltage under observance of the terminal
circuit. Exceeding the tolerances as in EN 60034/DIN VDE
0530, i.e. voltages ±5%, frequency ±2%, cam form,
symmetry, increases heating and reduces service life.
Observe any accompanying connection diagrams, partic-
ularly for special equipment (e.g. thermistor protection
etc.). The type and cross-section of the main conductors, as
well as the protective conductors and any potential equali-
sation which may become necessary, must correspond to
the general and local installation regulations. With
switching duty, take the starting current into account.
Protect the drive unit against overload and, in dangerous
situations, against unintended starts.
Lock the terminal box again to protect against contact
with live components.
MG75C402
Operating Instructions
M20x1.5 M20x1.5
M20x1.5
CAUTION
RISK OF SHORT-CIRCUITS
Short-circuits can occur if water penetrates through the
cables into the terminal box. The installed end caps on
the terminal box support the IP protection rating of the
OneGearDrive (see also chapter 3.3 Protection Rating).
•
•
NOTICE
Refer to the Operating Instructions for VLT
AutomationDrive FC 302 and VLT
302 to connect the terminals.
Do not connect the OneGearDrive directly to the power
supply.
