8.5.4 OneGearDrive Hygienic with Torque Arm in Front Position (optional)

214
185

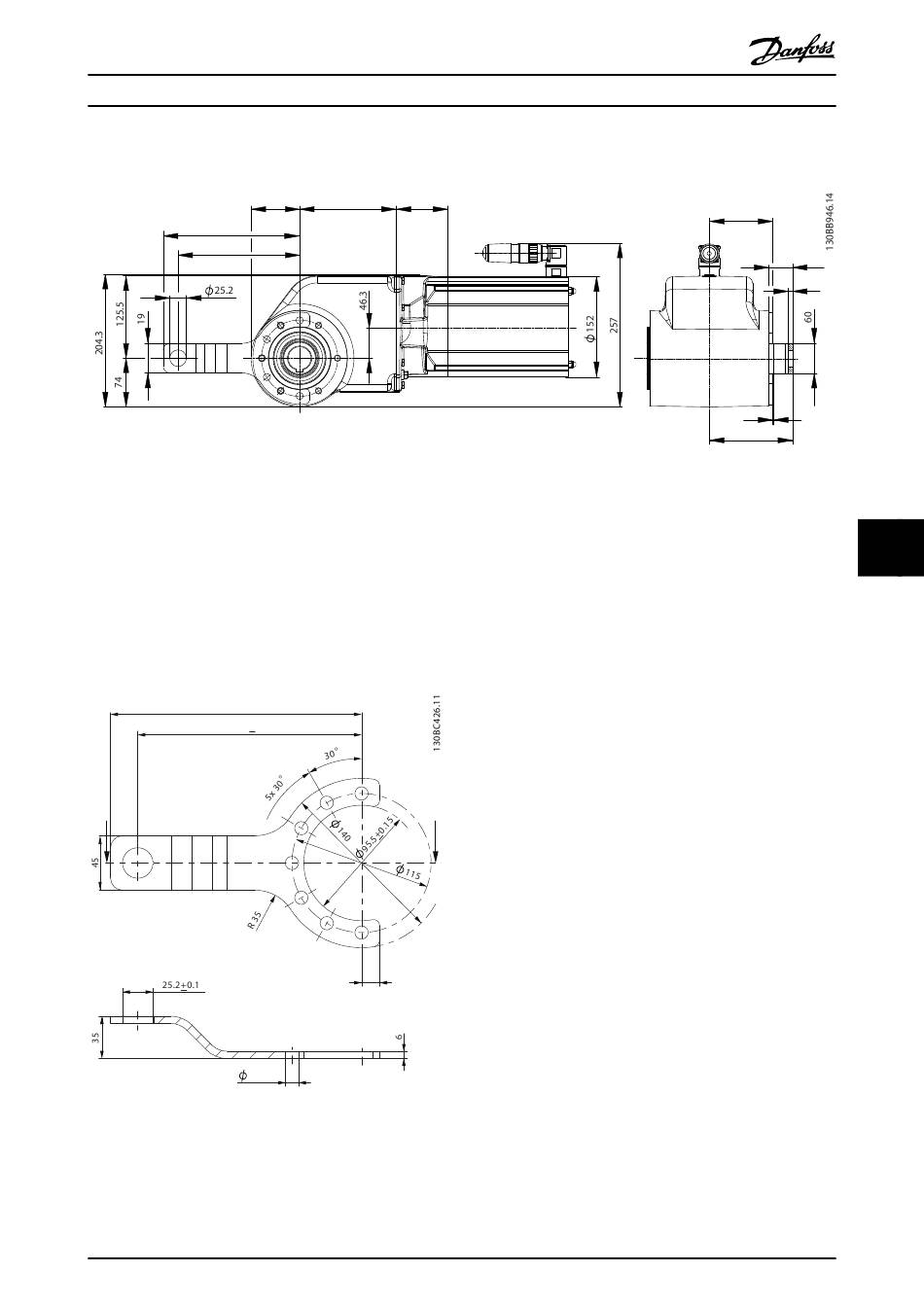

Illustration 8.12 Torque Arm in Front Position

8.6 Options

8.6.1 Torque Arm Set

Part number: 178H5006
The torque arm set consists of the torque arm (see
Illustration 8.13) and the mounting set (see Illustration 8.14).
207.5
185+0.2
A
11
Illustration 8.13 Torque Arm
MG75C402
Operating Instructions
78.5
74 147
A
15
A - A
Danfoss A/S © 06/2014 All rights reserved.
92.5
35
6
1
123
8
27
8
