Mechanical Installation
The maximum force based on bearing life is detailed in
(Illustration 3.1 and Table 3.1).
3 3

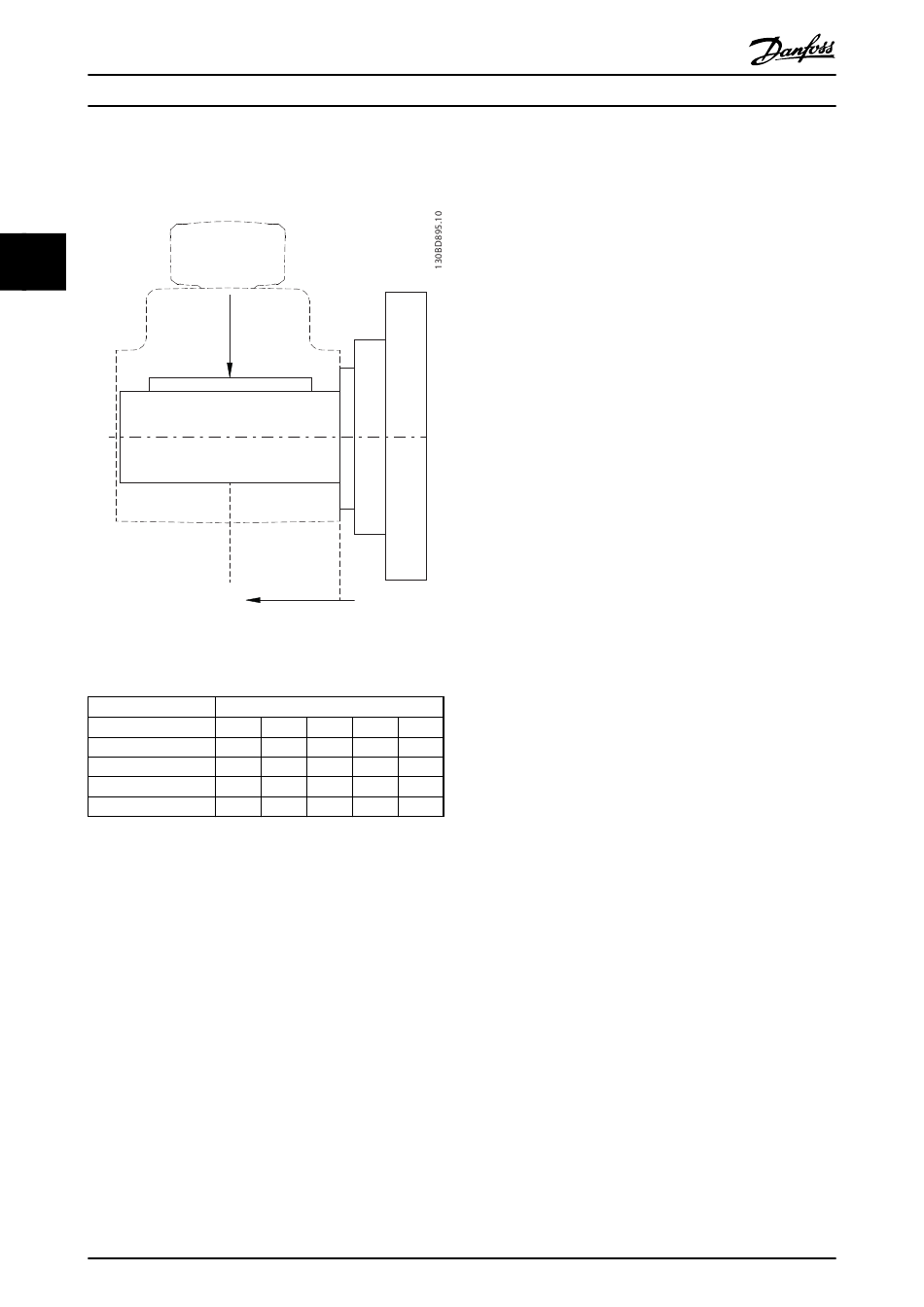

Illustration 3.1 Maximum Force
Up to n2 [RPM]
50
100
200
360
Table 3.1 Maximum Force
1) X is the distance from the surface of the hollow shaft to the force
location.

3.5.1 Mounting Procedure

1. Fasten the drive unit by its flange using the
torque arm (see chapter 8.6.1 Torque Arm Set).
2. Attach the OneGearDrive on to the driven shaft
using the means provided.
8
Operating Instructions
F
Rzul
0
X
F [N] up to X [mm] 1)
RZUL
25 50 75 100
4319 3763 3335 2994
3023 2634 2334 2096
1727 1505 1334 1198
1404 1223 1084 973
Danfoss A/S © 06/2014 All rights reserved.
125
2716
1901
1086
883
