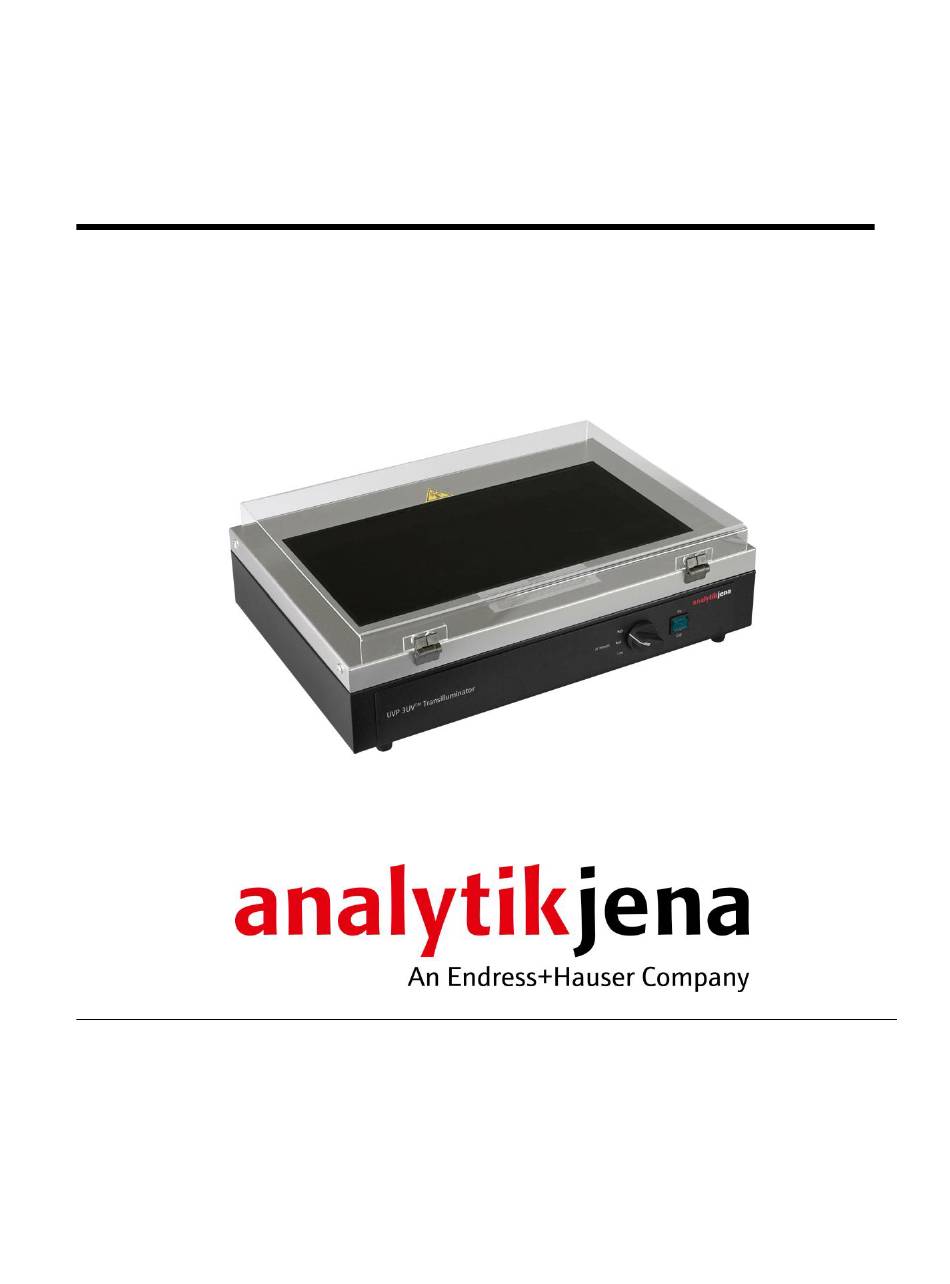

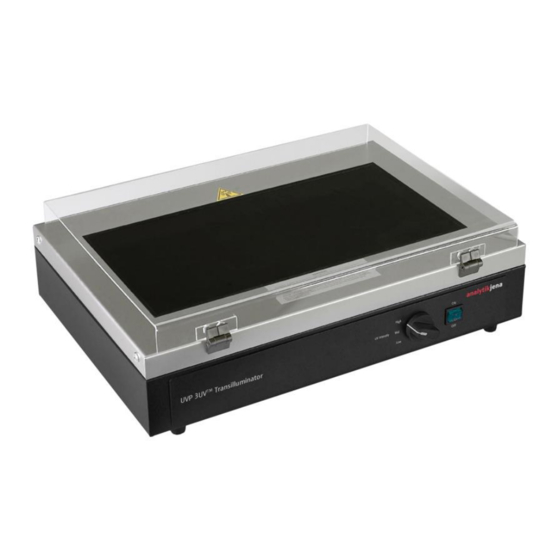

UVP Transilluminators
Instruction Manual
Analytik Jena US
Ultra-Violet Products Ltd.
2066 W 11th Street, Upland, CA 91786
Unit 1,Trinity Hall Farm Estate,
Tel: (909) 946-3197
Nuffield Road Cambridge CB4 1TG UK
Fax: (909) 946-3597
Tel: +44(0)1223-420022 / Fax: +44(0)1223-420561
Web site: www.us.analytik-jena.com
81-0249-01 Rev H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Analytik Jena UVP Transilluminator and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Analytik Jena UVP Transilluminator

Summary of Contents for Endress+Hauser Analytik Jena UVP Transilluminator

  • Page 1 UVP Transilluminators Instruction Manual Analytik Jena US Ultra-Violet Products Ltd. 2066 W 11th Street, Upland, CA 91786 Unit 1,Trinity Hall Farm Estate, Tel: (909) 946-3197 Nuffield Road Cambridge CB4 1TG UK Fax: (909) 946-3597 Tel: +44(0)1223-420022 / Fax: +44(0)1223-420561 Web site: www.us.analytik-jena.com 81-0249-01 Rev H...
  • Page 2 UVP Transilluminators Page 2 Introduction The UVP Transilluminator offers the researcher uniform and intense sources of ultraviolet light (radiation) in a compact package. The special design emits high intensity excitation UV wavelength for back-illumination of transparent fluorescent materials. The 302nm UV back-illumination provides a highly sensitive method to detect double-stranded nucleic acids that have been labeled with fluorescent dyes such as ethidium bromide or acridine orange.

  • Page 3: Specifications

    UVP Transilluminators Page 3 Specifications UVP Transilluminators Single UV UVP Transilluminator models are designed with either single intensity or variable intensity. Units are equipped with an electronic ballast. Dimension: Width: 14” x Depth: 11” x Height: 4.8” (356 x 279 x 122mm) No.

  • Page 4: Safety Precautions

    UVP Transilluminators Page 4 UVP 3UV Transilluminators Units are equipped with an electronic ballast. The physical dimensions of all models are: Width: 14” x Depth: 11” x Height: 5.4” (356 x 279 x 137mm) Model Part Number Volt/Hz Wavelength Filter Size No.

  • Page 5: Using The Transilluminator

    UVP Transilluminators Page 5 If you are not using the transilluminator with an imaging system darkroom, do not operate the unit without securing the cover. If the cover is missing, a UV Blocking Faceshield must be worn to avoid UV exposure to the skin. UV Blocking Eyewear should be worn even with the cover in place to avoid accidental UV exposure.
  • Page 6 UVP Transilluminators Page 6 Removal Procedure When performing the following procedure, place all components (screws, nuts, etc.) in a secure location, as some will be reused for installation. Turn off the transilluminator by placing the power switch on the front of the unit in the OFF position.
  • Page 7 UVP Transilluminators Page 7 Lift the transilluminator filter frame and place the UV blocking cover below the frame. Insert the black tabs, located on the UV blocking cover’s hinges, through the filter frame as shown. Black Tabs Use the narrow walled 3/8” nut driver to secure the four supplied 3/8” hollow nuts to the black UV blocking cover hinge tabs.
  • Page 8 UVP Transilluminators Page 8 Reinstall the four Phillips-head screws and washers on the sides of the transilluminator to secure the transilluminator filter frame to the transilluminator body. UV Blocking Cover Phillips-Head Screw and Washer Transilluminator Body Cleaning and Care of the Transilluminator Clean unit surface with a damp soft cloth or sponge.

  • Page 9: Replacement Parts/Accessories

    UVP Transilluminators Page 9 Maintenance/Repair/Technical Assistance Replacement Parts/Accessories For replacement parts or components not shown here, contact Analytik Jena Customer Service or place of purchase. Please have the transilluminator model number available when you call. Replacement Part Description Part Number Qty.

  • Page 10: Technical Support

    UVP Transilluminators Page 10 Technical Support Analytik Jena offers technical support for all of its products. If you have any questions about the product’s use or, operation, please contact AJ’s offices at the following locations. If you are in North America, South America, East If you are in Europe, Africa, the Middle East, Asia or Australia: Western Asia:...
