Operating Manual
UVP Gel Compact
81-1286-01 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the analytikjena UVP Gel Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser analytikjena UVP Gel Compact

Summary of Contents for Endress+Hauser analytikjena UVP Gel Compact

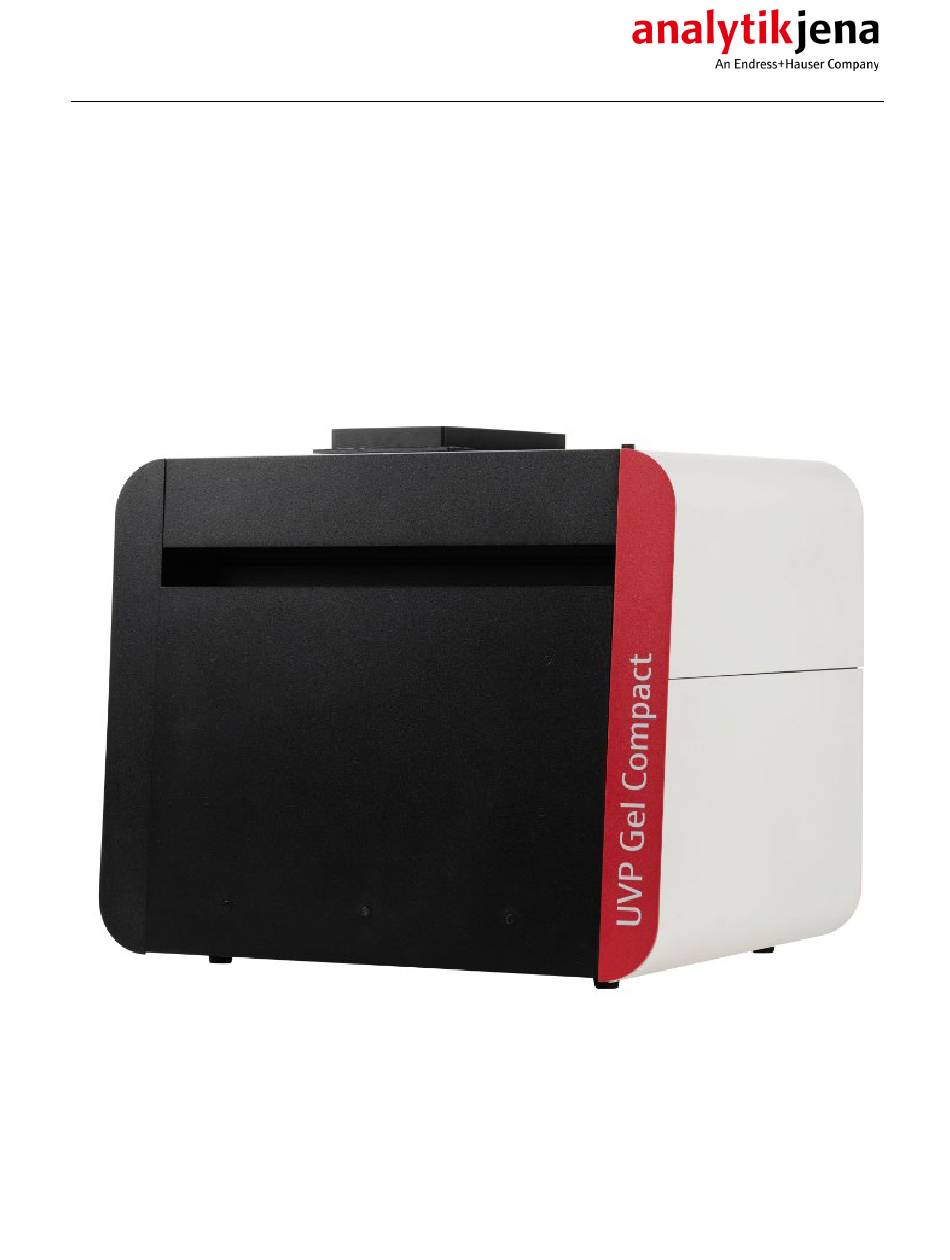

  • Page 1 Operating Manual UVP Gel Compact 81-1286-01 Rev. A...
  • Page 2 Manufacturer Analytik Jena US 2066 W. 11 Street Upland, CA 91786 USA Phone +1 (909) 946 3197 +1 (909) 946 3597 Email info@us.analytik-jena.com Service (except United Analytik Jena GmbH States) Konrad-Zuse-Str. 1 07745 Jena, Germany Phone +49 3641 77 7407 +49 3641 77 7449 Email service@analytik-jena.de...

  • Page 3: Table Of Contents

    UVP Gel Compact Table of Contents Table of Contents ........................... 3 Basic Information ........................... 5 1.1. User Manual Notes ......................... 5 1.2. Intended Use ........................... 6 1.3. Warranty and Liability ......................6 Safety Instructions .......................... 7 2.1. General Notes ......................... 7 2.2.
  • Page 4 UVP Gel Compact 4.6. Installing VisionWorks® Mobile Application ............... 17 4.7. Linking and getting started with the VisionWorks® App ............ 17 4.8. Additional Software Information ..................19 Indicators and Troubleshooting ....................20 5.1. Front panel LED color code ....................20 5.2.

  • Page 5: Basic Information

    UVP Gel Compact Basic Information 1. Basic Information 1.1. User Manual Notes The UVP Gel Compact is intended for operation by qualified specialist personnel observing this user manual. The user manual informs about the design and function of the UVP Gel Compact and provides the necessary know-how for the safe handling of the device and its components to personnel familiar with analysis.

  • Page 6: Intended Use

    UVP Gel Compact Basic Information 1.3. Intended Use The UVP Gel Compact is an automated imager controlled through the user’s cellphone with VisionWorks® App. The system is tailored to the academic community for imaging acquisition and analysis for (but not limited to) gel documentation, colorimetry, and colony counting. The UVP Gel Compact comes with an UVP UV Transilluminator or a UVP Visi-Blue™...

  • Page 7: Safety Instructions

    UVP Gel Compact Safety Instructions 2. Safety Instructions 2.1. General Notes For your own safety and to ensure error-free and safe operation of the imaging system, please read this chapter carefully before commissioning. Observe all safety notes listed in this user manual. Besides the safety instructions in this user manual and the local safety regulations that apply to the operation of the device the general applicable regulations regarding accident prevention, occupational health and safety and environmental protection have to be observed and complied...

  • Page 8: Technical Condition

    UVP Gel Compact Safety Instructions 2.3. Technical Condition The imaging system corresponds in its design and construction to the current state of the art technology. Unauthorized modifications or changes, especially such that affect the safety of the staff and the environment, are generally not allowed. Observe the following notes: The operator must only operate the device in a sound and operationally safe condition.

  • Page 9: Handling Of Auxiliary And Operating Materials

    UVP Gel Compact Safety Instructions 2.6. Handling of auxiliary and operating materials The operator is responsible for the selection of substances used in the process as well as for their safe handling. This is particularly important for radioactive, infectious, poisonous, corrosive, combustible, explosive and otherwise dangerous substances.

  • Page 10: Function And Set-Up

    UVP Gel Compact Function and Set-Up 3. Function and Set-Up 3.1. Components Refer to packaging slip and pictured components for specific parts and components included with the system. Phone holder 4-position emission filter-wheel White and Blue LED overhead illumination UV Safety Switch UV Transilluminator 81-1286-01 Rev.

  • Page 11: Camera

    UVP Gel Compact Function and Set-Up 3.2. Camera The UVP Gel Compact uses the user’s cellphone camera for image acquisition. If using a clear cellphone case, user will need to place the cellphone inside the phone holder. Start VisionWorks™ App and connect cellphone to the unit via Bluetooth. Proceed to select settings and acquire images.

  • Page 12: Cellphone Holder

    UVP Gel Compact Function and Set-Up 3.7. Cellphone holder The UVP Gel Compact will include a black cellphone holder. Please use this cellphone holder to avoid light getting into the darkroom while acquiring images. 3.8. Optional Equipment Analytik Jena US offers a variety of optional equipment to support the needs of varying laboratory environments.

  • Page 13: Set-Up

    UVP Gel Compact Function and Set-Up 4. Set-Up 4.1. Scope of Supply When unpacking the UVP Gel Compact imaging system, the following items will be included: All filters listed on your sales order  UVP UV Transilluminator or UVP Visi-Blue™ Transilluminator ...

  • Page 14: Connecting The Power Cable And Powering Up The Unit

    UVP Gel Compact Function and Set-Up 4.2. Connecting the power cable and powering up the unit 1. Plug the main power cable into the back of the darkroom. 2. Plug the main power cable into a surge protected outlet. 3. Turn the darkroom main power switch to the ON (I) position, located on the back right of the unit.

  • Page 15: Installing Uvp Transilluminator

    UVP Gel Compact Function and Set-Up 4.3. Installing UVP Transilluminator 1. Open the main darkroom door. 2. Carefully unpack the UVP UV Transilluminator. 3. Place the transilluminator on the tray surface. Ensure transilluminator fits in the cut outs on the sample tray. 4.

  • Page 16: Using/Installing The Phone Holder

    UVP Gel Compact Function and Set-Up 4.5. Using/Installing the Phone holder To avoid any type of light leak into the darkroom, please use the phone holder. Follow the next steps for proper use: 1. Identify the phone holder and the top/bottom part. Figure 3 a.

  • Page 17: Installing Visionworks® Mobile Application

    UVP Gel Compact Function and Set-Up 4.6. Installing VisionWorks® Mobile Application To control the UVP Gel Compact, the user will need to download the VisionWorks™ App through Apple App Store (for Apple iOS phones or tablets) or Google Play Store (for Android phones or tablets).
  • Page 18 UVP Gel Compact Function and Set-Up Figure 7 a. Software Home Screen; b. Main Viewing Window 6. Allow the VisionWorks App to use the Bluetooth and access the cellphone camera. If Location Access is requested, approve this as well, as it is needed to locate Bluetooth devices on Android based phones.

  • Page 19: Additional Software Information

    UVP Gel Compact Function and Set-Up 7. Select “Scan for UVP Gel Compact” (make sure cellphone is in pairing mode for Bluetooth connection). Figure 9 a. Scan for UVP Compact Imager Darkroom; b. Hardware Controls 8. Once the cellphone and the darkroom are connected, the Lighting and Filter selection wheel will be available.

  • Page 20: Indicators And Troubleshooting

    UVP Gel Compact Indicators and Troubleshooting 5. Indicators and Troubleshooting 5.1. Front panel LED color code The LED indicator located on the front panel of the unit, provides the unit’s status. The LED shows 4 different colors/configurations: Blinking Yellow/Green: Unit is ON, but Bluetooth is disconnected. ...

  • Page 21: Maintenance, Replacement Parts And Accessories

    UVP Gel Compact Maintenance, replacement parts and accessories 6. Maintenance, replacement parts and accessories 6.1. Care and cleaning WARNING Risk of electrical shock! Ensure that the system is turned OFF and unplugged during cleaning.  Clean unit surface with a damp soft cloth or sponge. Use mild soap or ...

  • Page 22: Specifications

    UVP Gel Compact Specifications 7. Specifications Darkroom Filter Tray 4-slot filter wheel Illumination Overhead Epi-Blue and Epi-White Filter and Illumination Control Fully automated through VisionWorks® App Transilluminator UVP UV Thin-Line Transilluminator at 302nm (choose between two-options) UVP Visi-Blue™ Transilluminator at 460-470nm Max.
  • Page 23 UVP Gel Compact Specifications Additional Technical Data Cellphone Compatibility Compatibility with an extensive range of cellphones with single or multiple lenses. Phone-case compatibility: Transparent and opaque cellphone case. *Cellphone must allow Bluetooth communication Size (W x H x D) 17.5 x 15 x 14 inches 44.5 x 38.1 x 35.6 cm Fuses Fuse 3.15A for darkroom.
