Biometra TOne
1

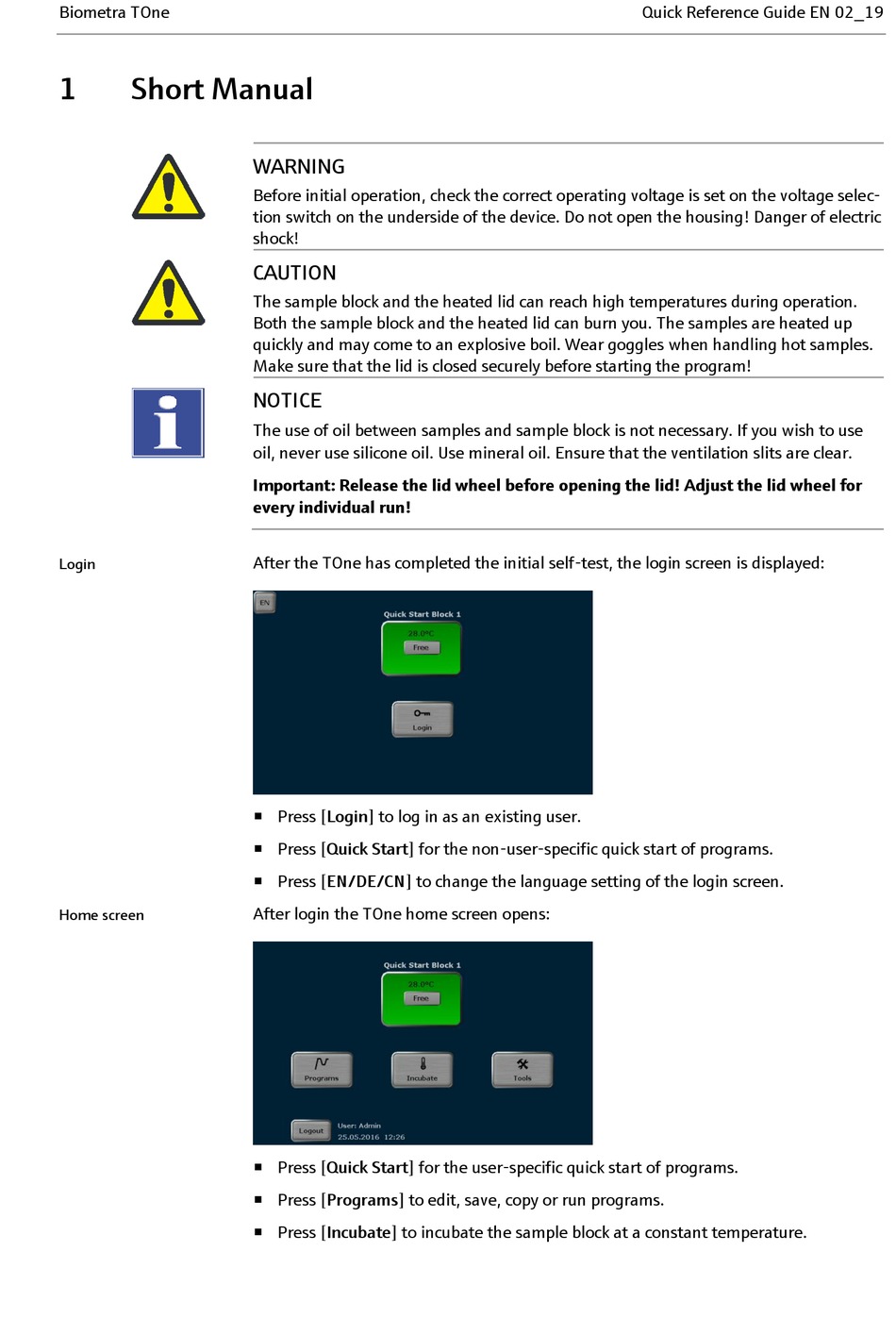

Short Manual
Login
Home screen
WARNING
Before initial operation, check the correct operating voltage is set on the voltage selec-
tion switch on the underside of the device. Do not open the housing! Danger of electric
shock!
CAUTION
The sample block and the heated lid can reach high temperatures during operation.
Both the sample block and the heated lid can burn you. The samples are heated up
quickly and may come to an explosive boil. Wear goggles when handling hot samples.
Make sure that the lid is closed securely before starting the program!
NOTICE
The use of oil between samples and sample block is not necessary. If you wish to use
oil, never use silicone oil. Use mineral oil. Ensure that the ventilation slits are clear.
Important: Release the lid wheel before opening the lid! Adjust the lid wheel for
every individual run!
After the TOne has completed the initial self-test, the login screen is displayed:
Press [Login] to log in as an existing user.
Press [Quick Start] for the non-user-specific quick start of programs.
Press [EN/DE/CN] to change the language setting of the login screen.
After login the TOne home screen opens:
Press [Quick Start] for the user-specific quick start of programs.
Press [Programs] to edit, save, copy or run programs.
Press [Incubate] to incubate the sample block at a constant temperature.
Quick Reference Guide EN 02_19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Analytik Jena Biometra TOne
Summary of Contents for Endress+Hauser Analytik Jena Biometra TOne
- Page 1 Biometra TOne Quick Reference Guide EN 02_19 Short Manual WARNING Before initial operation, check the correct operating voltage is set on the voltage selec- tion switch on the underside of the device. Do not open the housing! Danger of electric shock! CAUTION The sample block and the heated lid can reach high temperatures during operation.
- Page 2 Quick Reference Guide EN 02_19 Biometra TOne Press [Tools] to access the system settings, user management, documentation, backup tool or self-test functions. Press [Logout] to log out. Press [Programs] on the TOne home screen The program overview screen opens: Editing, saving and copy- ing programs ...
- Page 3 Biometra TOne Quick Reference Guide EN 02_19 Use the cursor keys above the keyboard to switch between program steps. The number of the currently activated step is displayed on a blue background in the ta- ble at the top of the screen. ...
- Page 4 Quick Reference Guide EN 02_19 Biometra TOne To save the program, select a user directory and a storage location. Then press [Save]. The program is now saved. To copy programs, press [Programs] on the TOne home screen. To copy all programs located in a directory, select a directory and press [Copy all]. Select a directory to which the programs should be copied and press [Save].
