UVP Transilluminators

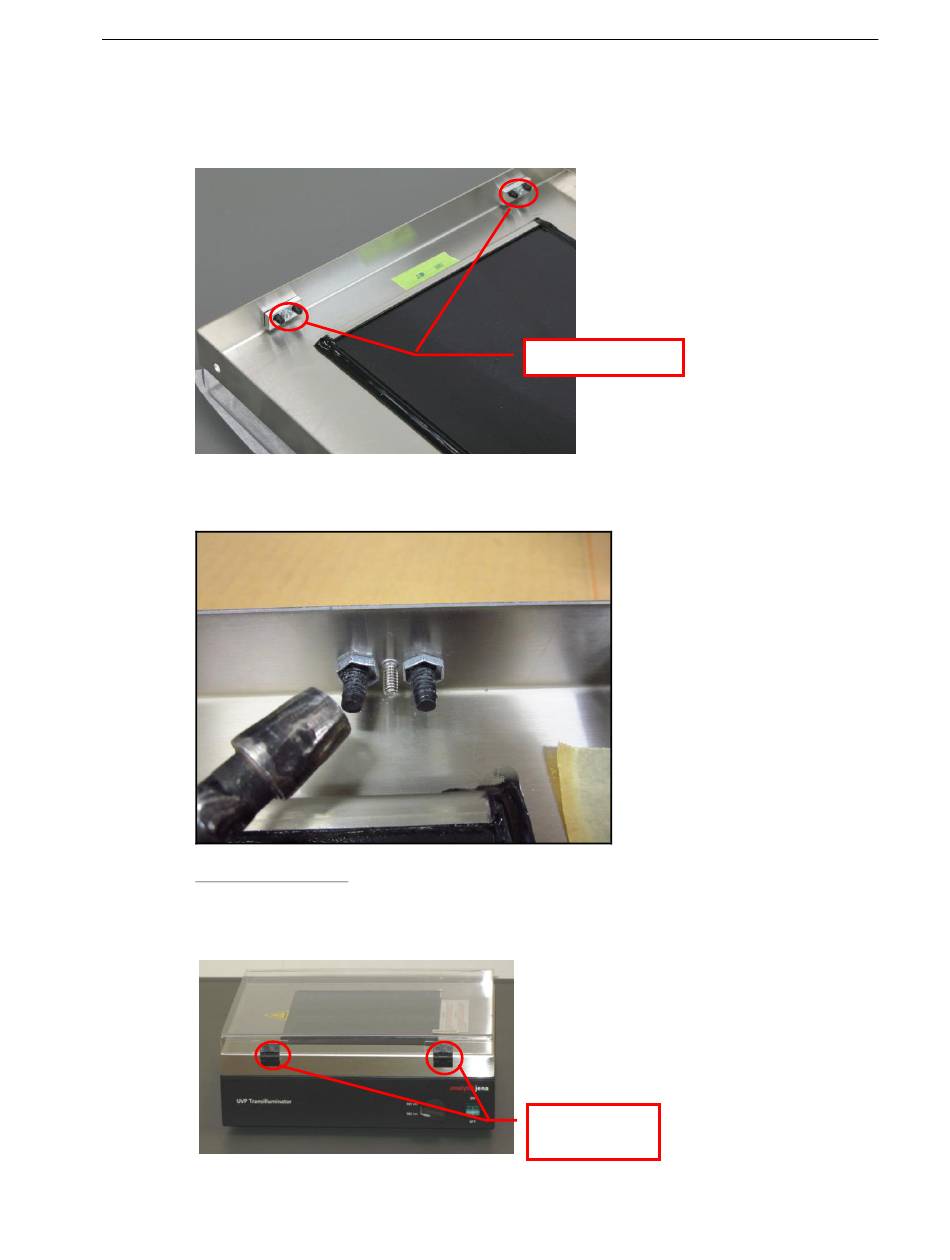

4. Lift the transilluminator filter frame and place the UV blocking cover below the frame. Insert the
black tabs, located on the UV blocking cover's hinges, through the filter frame as shown.
5. Use the narrow walled 3/8" nut driver to secure the four supplied 3/8" hollow nuts to the black UV
blocking cover hinge tabs.
Installation Procedure
1. With the UV blocking cover hinges at the front of the unit, replace the transilluminator filter frame
on top of the body of the transilluminator.
Black Tabs
UV Blocking
Cover Hinges
