UVP Transilluminators

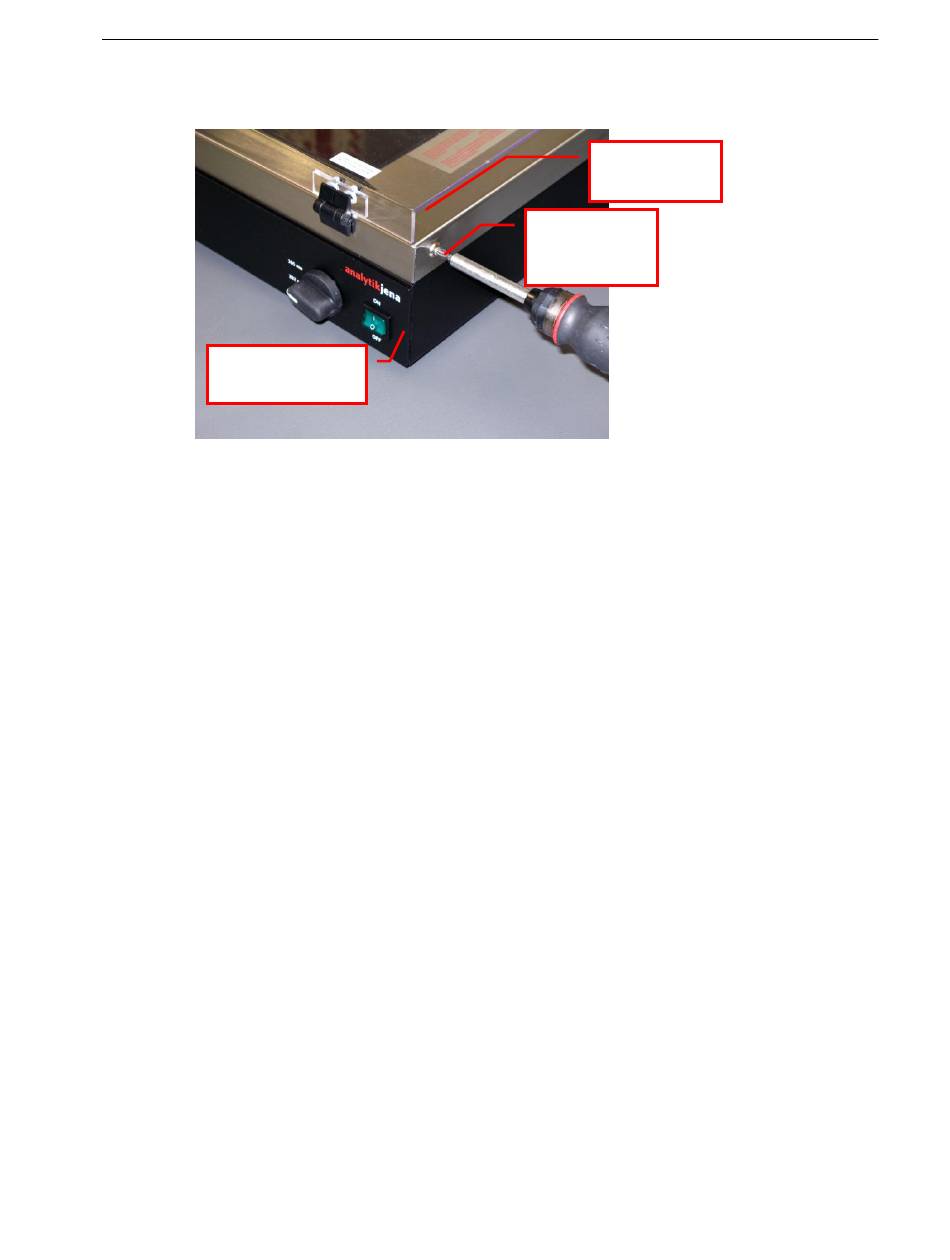

2. Reinstall the four Phillips-head screws and washers on the sides of the transilluminator to secure
the transilluminator filter frame to the transilluminator body.
Transilluminator
Body
Cleaning and Care of the Transilluminator
Clean unit surface with a damp soft cloth or sponge. Never use abrasive cleaners (can damage the UV
filter surface).
To protect the filter glass and minimize moisture and liquids on the glass, it is recommended that you
use a UV transmitting Gel-Tray. Refer to the Replacement Parts for ordering information.
Replacing Tubes in the Transilluminator
Disconnect the transilluminator for the electrical supply.
Remove the filter cover: Use a Phillips head screwdriver to remove the four screws on the sides of the
unit. Lift the filter cover off the unit.
Remove the reflectors on the left and right side of the unit: Slide the reflectors up out of the unit.
Remove the tube: Carefully rotate the tube and slide out of the socket. Replace with a new tube by
sliding the tube into the socket and rotating into place.
Insert the reflectors back into place and reattach the filter cover.
UV Blocking
Cover
Phillips-Head
Screw and
Washer
