Analog Devices ADSP-BF537 EZ-KIT Lite Getting Started page 69

MP3 file). If your audio source uses a mini-din connector for out-
put, you can connect the source to the EZ-KIT Lite with the
provided connector.
3. Connect an audio destination, such as the provided headphones, to
the mini-din connector on the EZ-KIT Lite. The connector is
labeled
LINE OUT
Your completed hardware interconnections look similar to the diagram in
Figure 3-1.
TO ROUTER, HUB,
ETC.

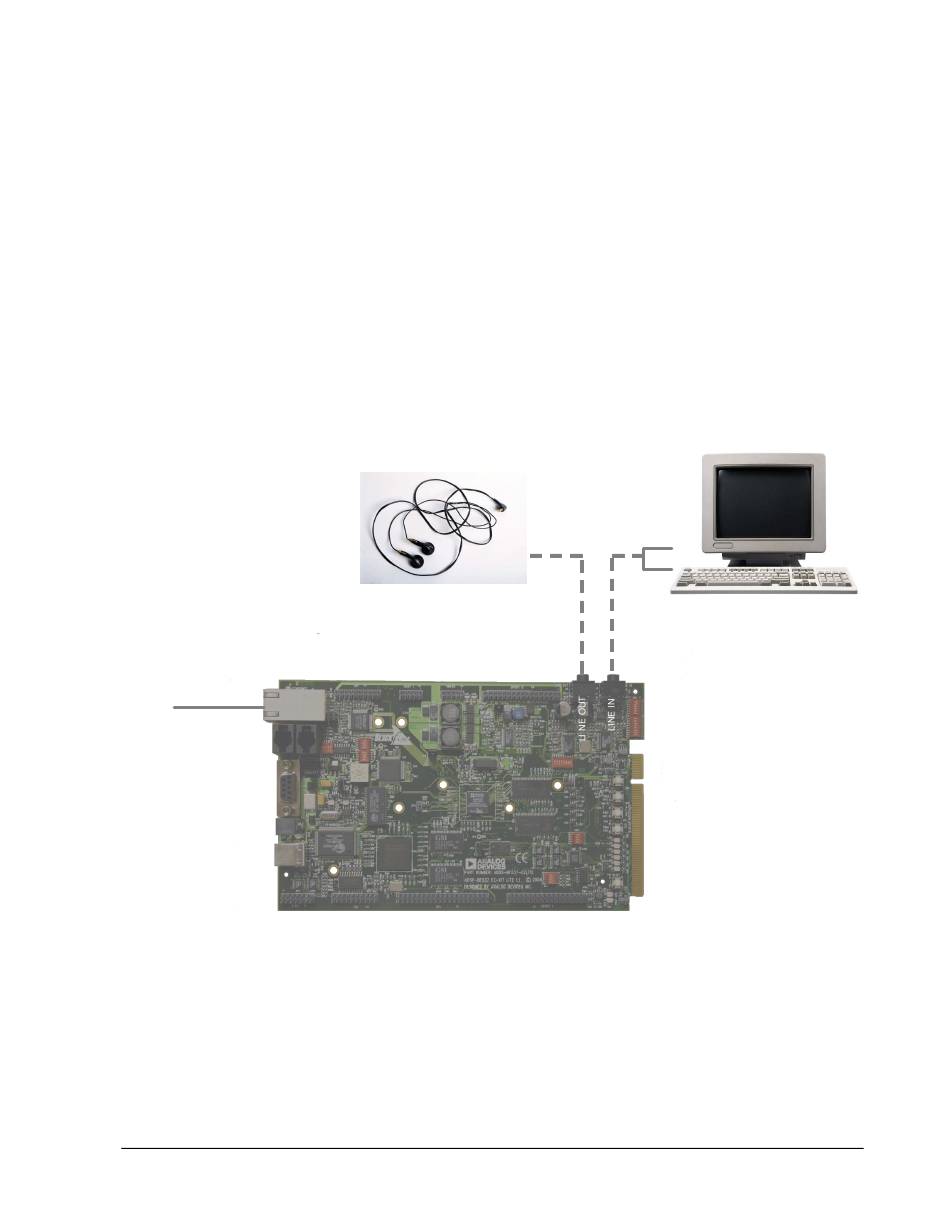

Figure 3-1. EZ-KIT Lite Connection Diagram
Next, load the project
EZ-Kit Lite\Getting Started Exam-
ples\Part_3_1\TalkThrough_3_1.dpj
the application. While the application is running, enable the audio play-
Getting Started with ADSP-BF537 EZ-KIT Lite
www.BDTIC.com/ADI
Controlling a real-time application via TCP/IP
.
HEADPHONES
ETHERNET
<install_path>\Blackfin\Examples\ADSP-BF537
LINE OR
HEADPHONE
OUT
to the EZ-KIT Lite. Build and run
3-3
