Keypad Descriptions and Functions

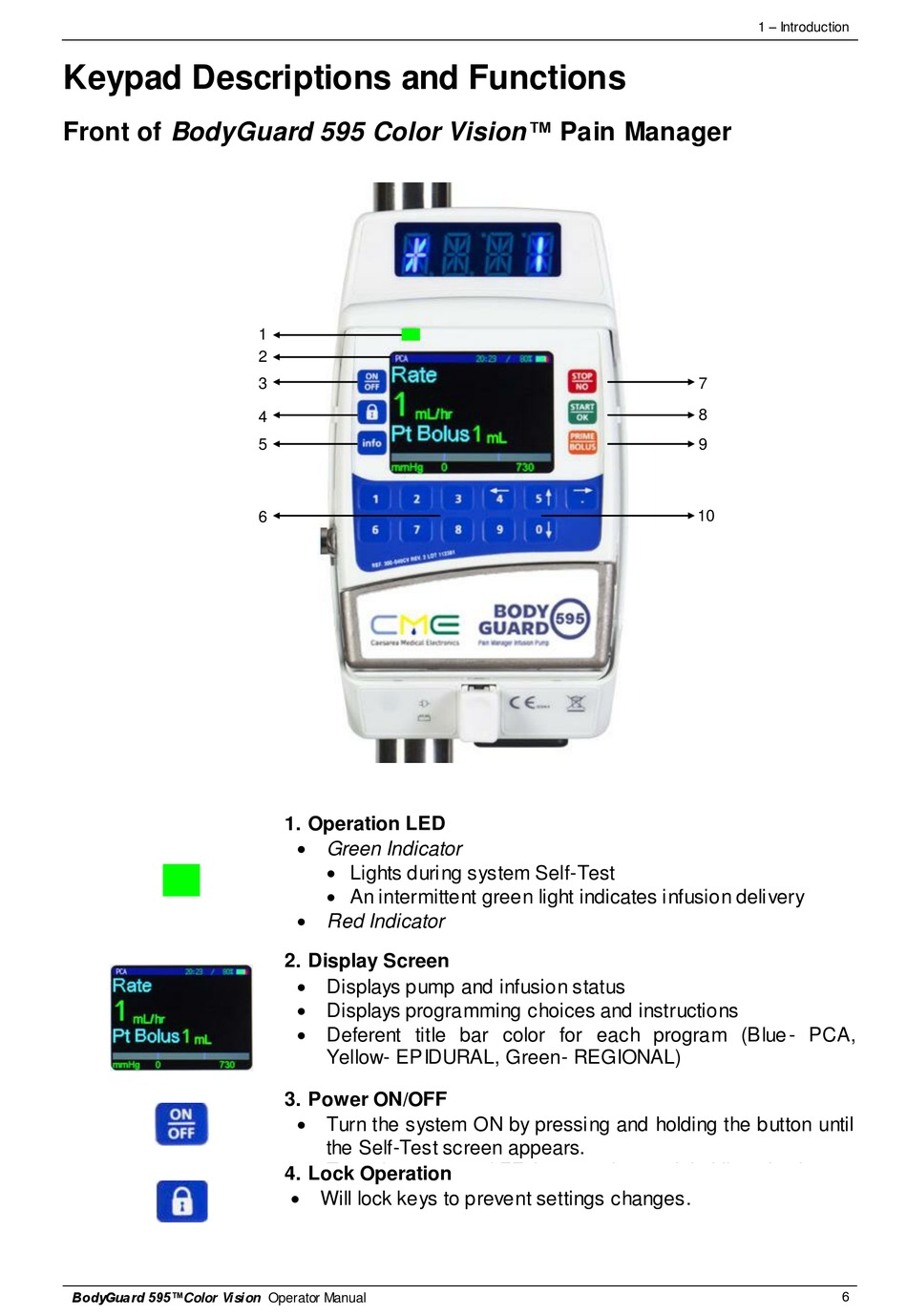

Front of BodyGuard 595 Color Vision™ Pain Manager
BodyGuard 595™Color Vision Operator Manual
1
2
3
1
4
5
6
1. Operation LED
 Green Indicator
 Lights during system Self-Test
 An intermittent green light indicates infusion delivery
 Red Indicator
2. Display Screen  Indicates an alarm state with a continuous red light
 Displays pump and infusion status
 Lights when the pump is in a stand -by mode during
 Displays programming choices and instructions
programming
 Deferent title bar color for each program (Blue - PCA,
Yellow- EPIDURAL, Green- REGIONAL)
3. Power ON/OFF
 Turn the system ON by pressing and holding the button until
the Self-Test screen appears.
 Turn the system OFF by pressing and holding the button
4. Lock Operation
 Will lock keys to prevent settings changes.
until the graph is black and a beep is generated.

 Pause priming
 Zeroes the displayed value during programming
 Erases the last digit during programming
 Returns to previous screen
