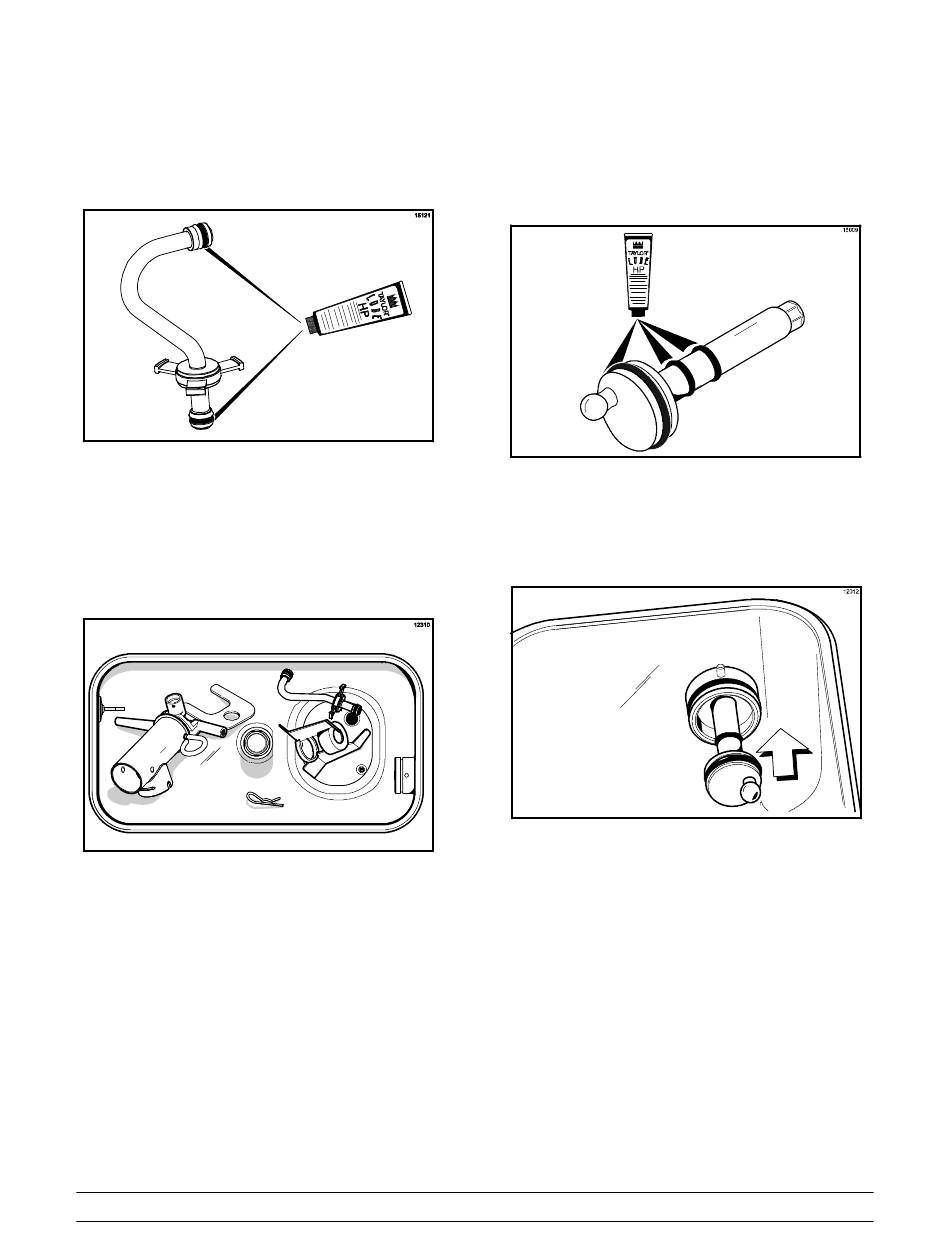

Step 11
Install one red o-ring on each end of the mix feed
tube, and thoroughly lubricate. (See Figure 38.)
Figure 38
Step 12
Lay the pump assembly, pump clip, feed tube, cotter
pin and agitator in the bottom of the mix hopper for
sanitizing. (See Figure 39.)
Figure 39
PH61 Peristaltic Pump
Step 13
Slide the large black o-ring and the two smaller
black o-rings into the grooves on the drive shaft.
Thoroughly lubricate the o-rings and shaft. DO NOT
lubricate the hex end of the shaft. (See Figure 40.)
Step 14
Install the hex end of the drive shaft into the drive
hub at the rear wall of the mix hopper.
(See Figure 41.)
Note: For ease in installing the pump, position the
ball crank of the drive shaft in the 3 o'clock position.
33
Figure 40
Figure 41
