Frame FS9
Follow the procedure described below to modify the EMC
protection of the AC drive of frame FS9 to EMC-level C4.
Find the Molex connector in the accessories bag. Remove
the main cover of the AC drive and locate the place for the
connector next to the fan. Push the Molex connector in its
place. See figure below.

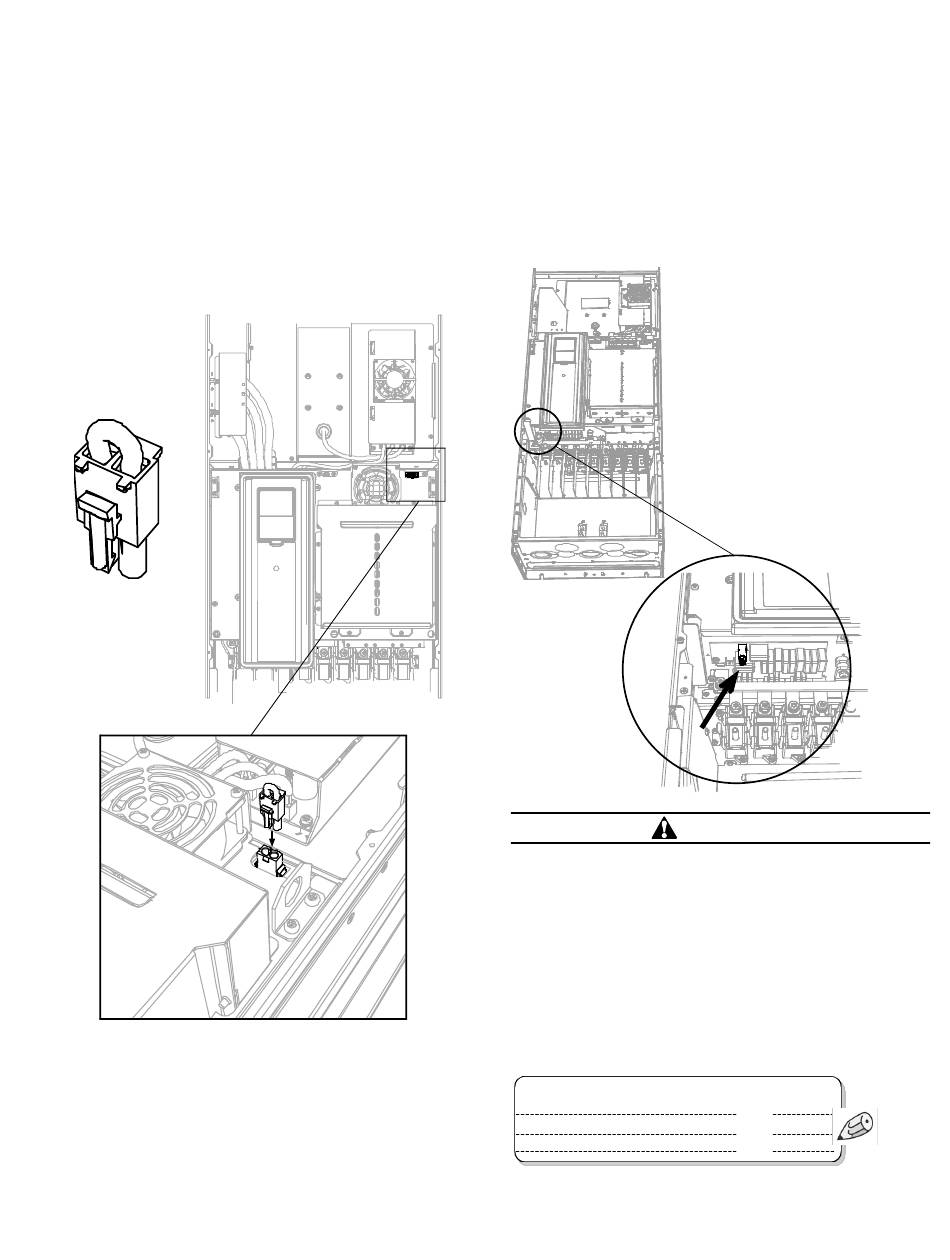

Molex Connector Placement, FS9

Molex Connector
Further remove the extension box cover, the touch shield
and the I/O plate with I/O grommet plate. Locate the EMC
jumper on the EMC board (see magnification in figure below)
and remove it.

Removing the EMC Jumper, FS9

Before connecting the AC drive to mains make sure that the
EMC protection class settings of the drive are appropriately
made.
Note: After having performed the change write "EMC level
modified" on the sticker included in the VSD Series II
delivery (see figure below) and note the date. Unless
already done, attach the sticker close to the name
plate of the AC drive.
Product Modified Sticker
Product modified
EMC-level modified C1->C4
VSD Series II LIT-12011772—October 2012 www.johnsoncontrols.com
Installation Requirements
CAUTION
Date:
Date:
DDMMYY
Date:
37
