Installation Requirements
Power Wiring
Notice
Do not discard the plastic bag
containing the wiring hardware.

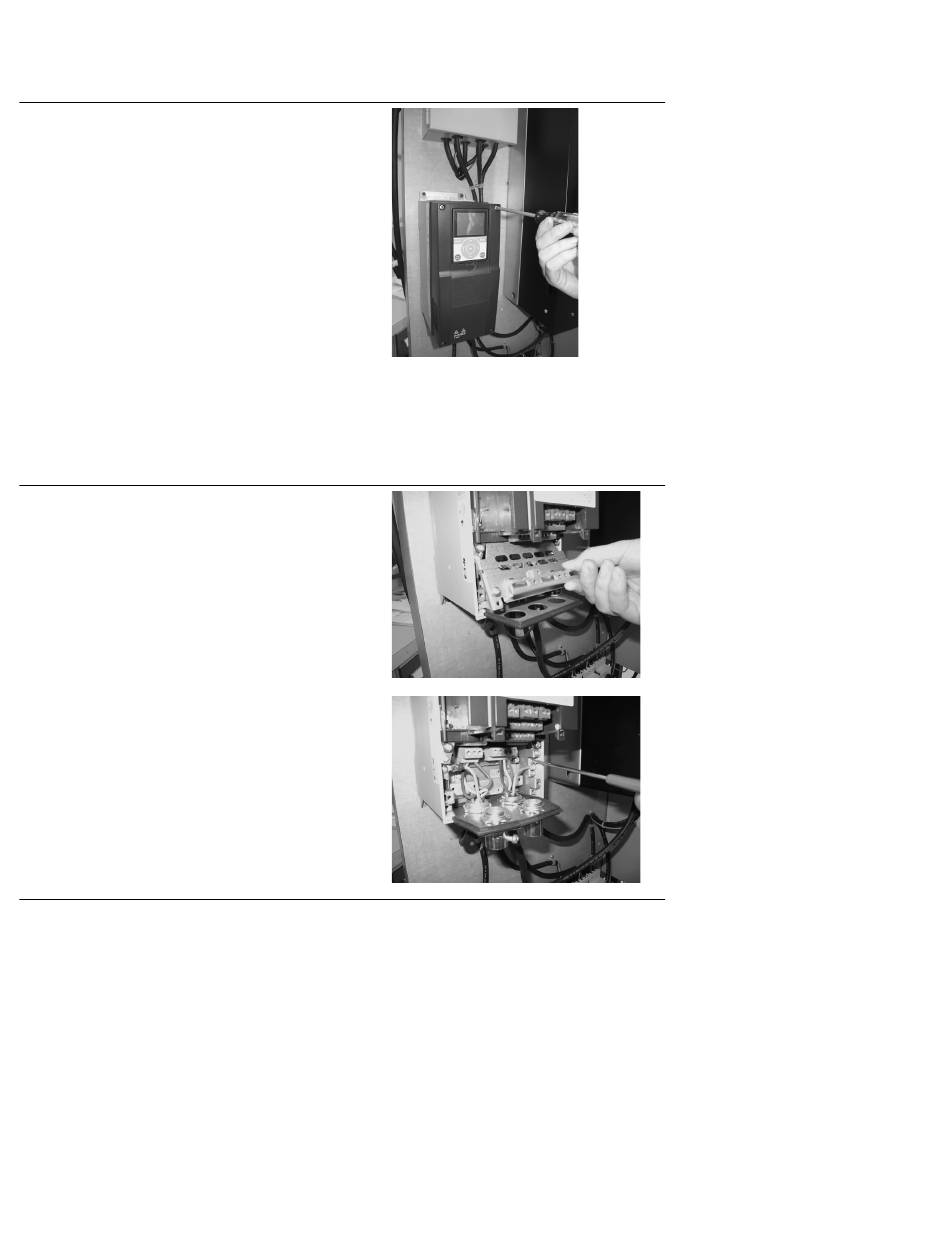

1. Remove the cover by removing
(4) screws, then lifting the cover
away from the base.
Wiring Hardware Contents
European rubber grommet and
●
flat rubber grommet (for IP54 integrity).
Modification label
●
Wire (grounding strap)
●
Detachable cable clamp
●
Attachable grounding clamps
●
Ground lug mounting screw size M4
●
Power Wiring/Grounding
2. Remove power wiring protection plate.
Use power/motor cable tables on Pages
43, 44, and 45.
3. Add attachable grounding clamps (qty 2),
one on each side of drive.
4. Pass motor, input power wires/cables
through base wiring plate.
5. If shielded cable is used, connect the
shields of input power and motor
cables shields to ground.
