Analogue output connections

The analogue output may be configured for use either as 0-10V (default) or 4-20mA. The
selection is made via an internal jumper as shown in Figure 23 which shows the main
circuit board inside the Hydro-View. The jumper is located close to the analogue output
terminals 6 and 7.
Wiring details are shown in Figure 24.
Note that the analogue output shares a common supply rail with the internal 24V supply
connected to terminal 17 - see Digital input connections on page 60 for further details.
The working range of the analogue output is set in the Output set-up menu (see p33).

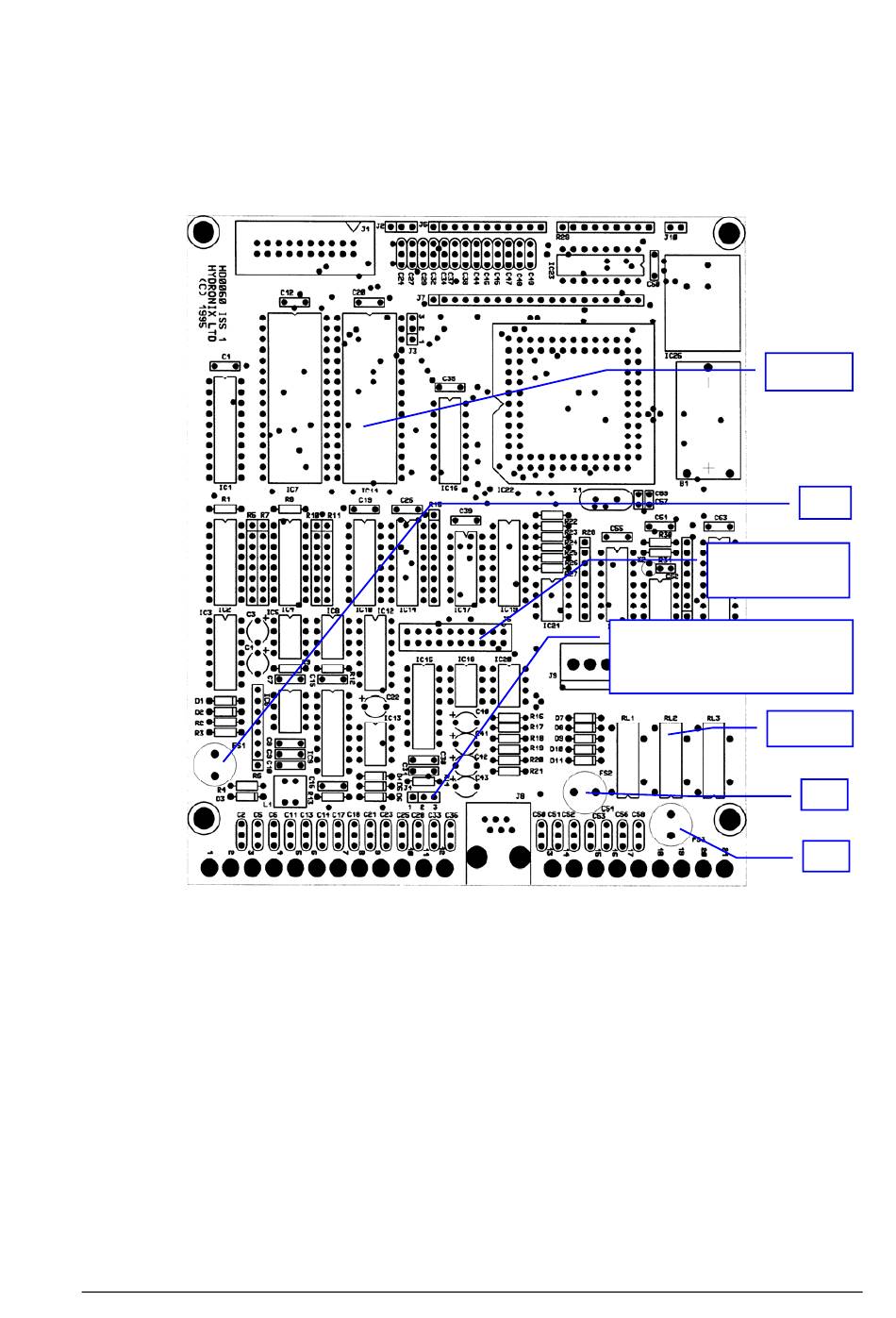

• Figure 23 - Hydro-View main circuit board

RS485 module
0-10V/4-20mA jumper...
Position 1-2 4-20mA (source)
Position 2-3 0-10Vdc
HYDRO-VIEW USER GUIDE D0022 REV 1.06
INSTALLATION
EPROM
FS1
connector
Relays
FS2
FS3
59
