This section provides a brief introduction to using the Hydro-View for new operators and

includes details of how to access the most commonly used facilities.

Hydro-View front panel

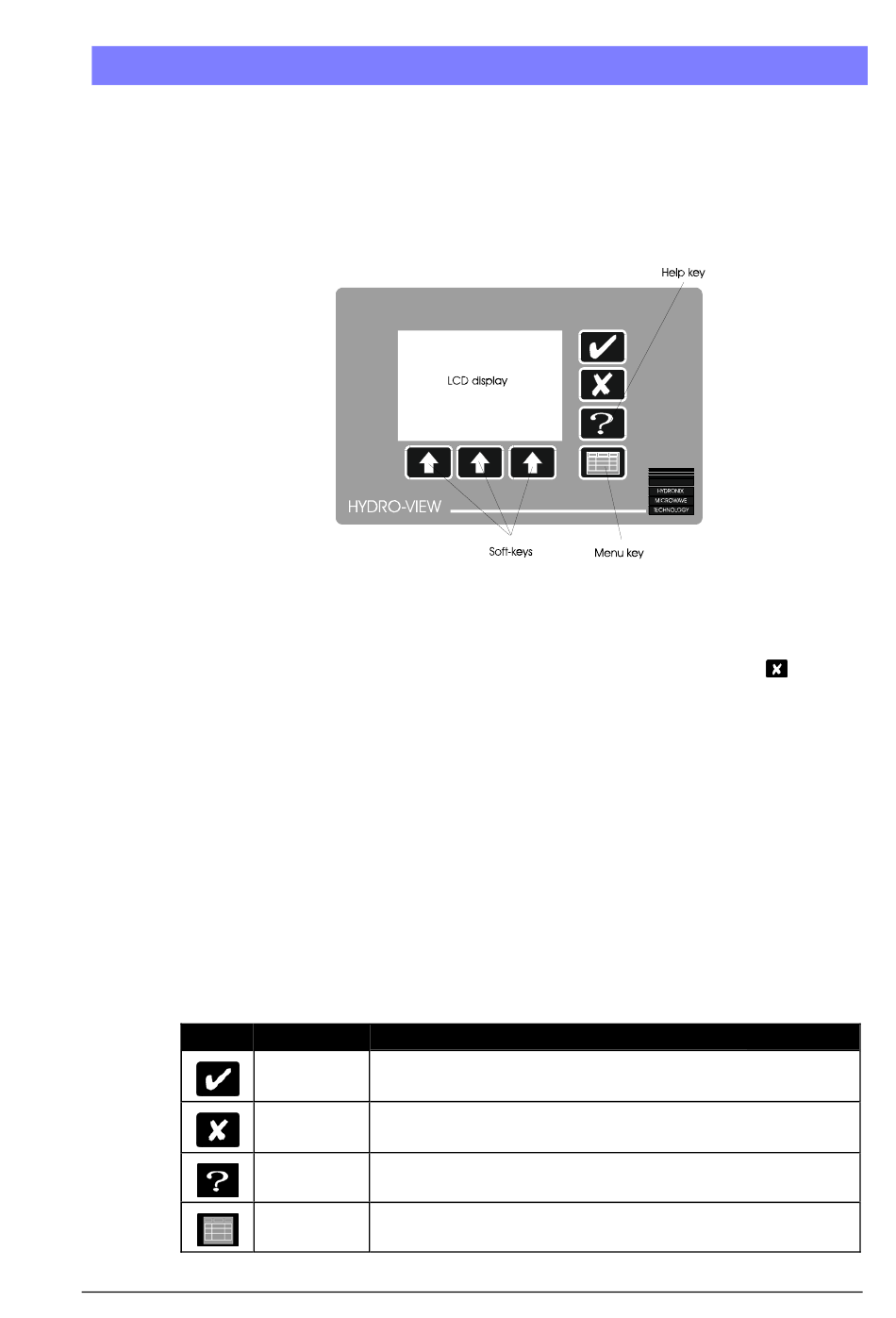

Figure 4 shows the front panel layout of the Hydro-View unit. You can use the keypad and

display to view and change operating parameters of the Hydro-View.

Display contrast adjustment

The display contrast can be adjusted for optimum viewing by pressing the

Keypad (p21)) when the Moisture display page (see overleaf) is being shown. You can

press the key several times to select the most appropriate of sixteen different contrast

settings.

Note that at very low temperatures liquid crystal displays exhibit reduced contrast and this

may be particularly noticeable immediately following the application of power to the unit. It

may be necessary to adjust the contrast control several times until the unit has

established its normal operating temperature in your application.

It is recommended that you leave power applied to the Hydro-View wherever possible as

this will also help to maintain the moisture sensor at normal working temperatures.

Keypad

The keypad is of a sealed membrane switch construction using dedicated keys for the

most commonly used operator level functions...

Legend

• Figure 4 - Hydro-View front panel

Name

Description

Yes

Confirms changes to data items.

Also cancels an audible alarm.

Cancels changes to data items.

Also used to adjust display contrast.

Help

Context-sensitive help facility.

Select

When pressed causes a menu to be displayed or selects the

highlighted item on the menu.
