22 DataBand E V User Manual

6. Device Window

The Device window or Connected to Device window shows the front and rear panels of the unit. The front panel shows the LED status
of the unit, which are updated in real time.
The rear panel shows the Terminal port, LAN port, Serial port and TDM ports. Click on a port to access the configuration options
relevant to the port.

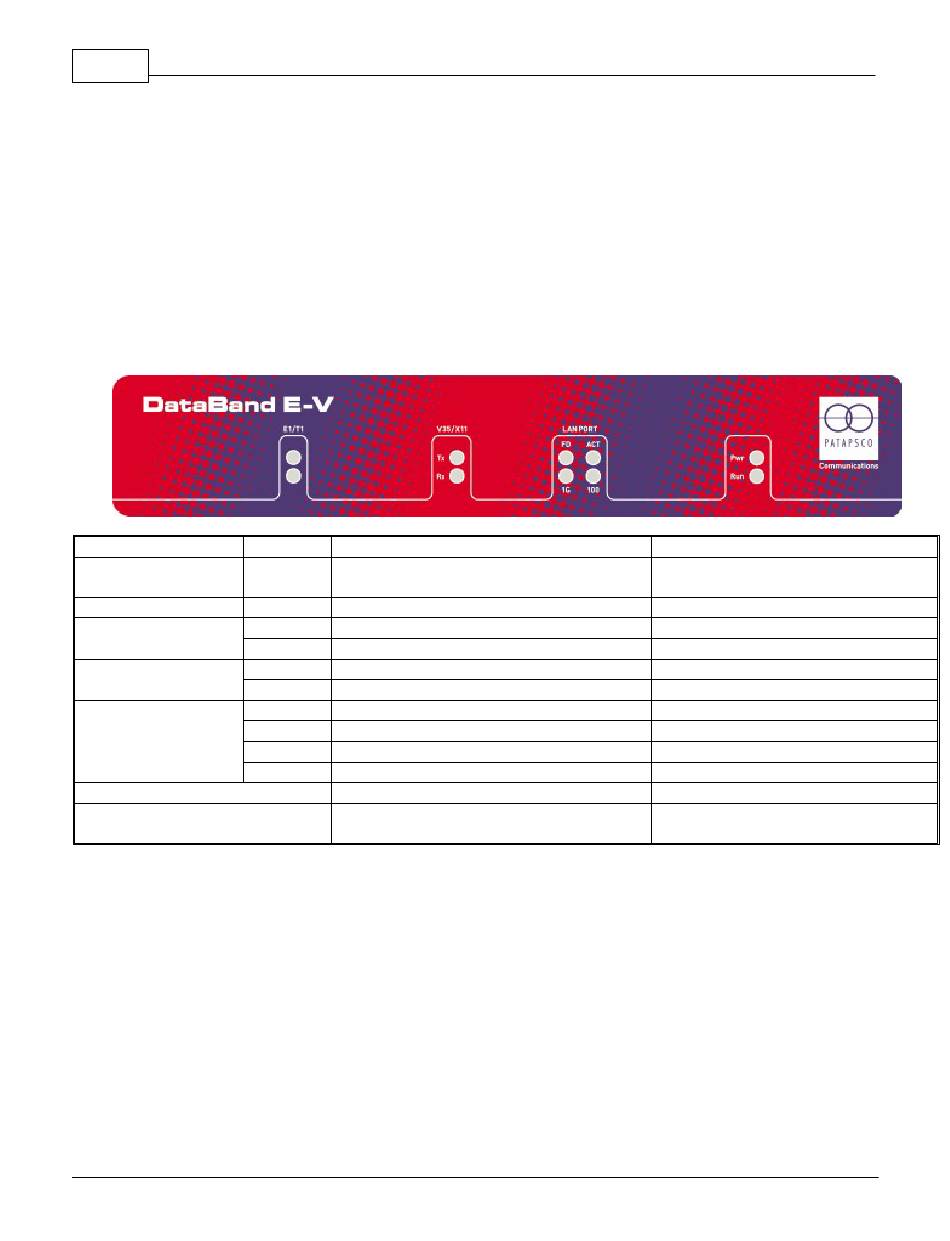

6.1. Front Panel - LEDs

The LEDs on the front panel display show the status of the ports. The table below describes what the port status lights indicate.
P ort/LE D
TDM E 1/T1 P orts 21-
24
X.21 P ort
V.35 P ort
LAN P ort
P wr
Run
LE D On
Upper LE D Layer 1 and 2 established. Ready for operation
Lower LE D Connections active on interface
Upper LE D 'C' control signal present on interface
Lower LE D Connections active on interface
Upper LE D 'DTR' control signal present on interface
Lower LE D Connections active on interface
F D LE D Full Duplex
ACT LE D Connected (flash when data sent/received)
100 LE D 100BT network detected
1G LE D 1000BT network detected
Power Supply is running
Flash once/sec - Ready for operation
Flash fast - 4 times/sec - Ready, no config
Off
No connection established
No connections active on interface
No 'C' control signal present on interface
No connections active on interface
No 'DTR' control signal present on interface
No connections active on interface
Half Duplex
No connection detected
10BT network detected
No 1000BT network detected
No power connected
Unit not operating
