Summary of Contents for Transition Networks CPSVT26XX

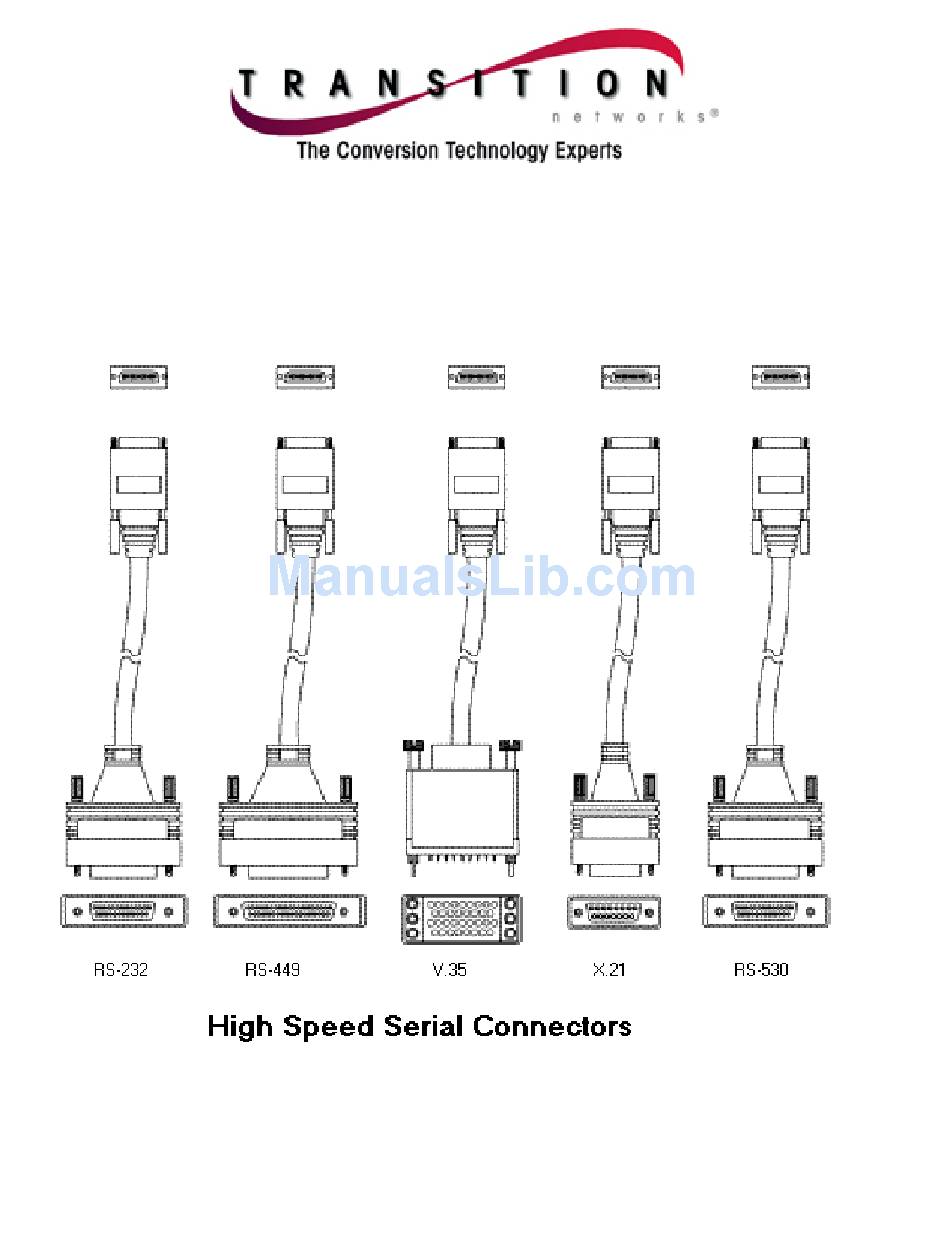

- Page 1 High Speed Serial Converter Cable Pin-out Specifications Confidential Rev 0.2 (CPSVT26xx) Page 1 02/27/03...
- Page 2 Shield type: Aluminum Foil-Polyester Tape/Braid Shield with drain wire. • Standard Cable length three meters (10 Ft). • Approval: Underwriters Laboratories (UL). • Cables are to be labeled with Transition Networks Part number. • RS-232 or RS530 Connector X.21 Connector HD 26-pin Connector Confidential Rev 0.2...
- Page 3 RS-232 DTE High Speed Serial Cable Pin-out 26-Pin Signal Name Drain wire Shield Shell J1-23 MODE_0 J1-24 MODE_DCE GND J1-18 J1-14 J1-19 J1-16 J1-15 J1-17 J1-26 J1-05 RXD/TXD+ J1-01 TXD/RXD+ J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-08 RTS/CTS J1-07 DTR/DSR+ J1-06 DCD/DCD+ J1-03 TXC/TXC+ J1-02...
- Page 4 RS-232 DCE High Speed Serial Cable Pin-out (CAB-SS-232FC) 26-Pin Signal Name Drain wire Shield Shell J1-23 MODE_0 J1-18 J1-14 J1-19 J1-16 J1-15 J1-17 J1-26 J1-05 RXD/TXD+ J1-01 TXD/RXD+ J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-08 RTS/CTS J1-07 DTR/DSR+ J1-06 DCD/DCD+ J1-03 TXC/TXC+ J1-02 TXCE/RXC+ J1-13...
- Page 5 RS-449 DTE High Speed Serial Cable Pin-out (CAB-SS-449MT) 26-Pin Signal Name Drain wire Shield Shell J1-22 MODE_I J1-24 MODE_DCE J1-26 J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-03 TXC/TXC+ J1-16 TXC/TXC- J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-08 RTS/CTS J1-09 RTS/CTS- J1-04 RXC/TXCE+ J1-17 RXC/TXCE- J1-11 CTS/RTS+ J1-10...
- Page 6 RS-449 DCE High Speed Serial Cable Pin-out (CAB-SS-449FC) 26-Pin Signal Name Drain wire Shield Shell J1-22 MODE_I J1-26 J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-03 TXC/TXC+ J1-16 TXC/TXC- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-10 CTS/RTS- J1-02 TXCE/RXC+ J1-15 TXCE/RXC- J1-08 RTS/CTS J1-09 RTS/CTS- J1-06...
- Page 7 X.21 DTE High Speed Serial Cable Pin-out (CAB-SS-21MT) 26-Pin Signal Name Drain wire Shield Shell J1-21 MODE_2 J1-24 MODE_DCE J1-26 J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-10 DSR/DTR+ J1-08 RTS/CTS J1-09 DTR/DSR+ J1-04 RXC/TXCE+ J1-17 RXC/TXCE- Confidential Rev 0.2 Transition Part Number 21DTE-3...
- Page 8 X.21 DCE High Speed Serial Cable Pin-out (CAB-SS-21FC) 26-Pin Signal Name Drain wire Shield Shell J1-21 MODE_2 J1-26 J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-10 DSR/DTR+ J1-08 RTS/CTS J1-09 DTR/DSR+ J1-02 TXCE/RXC+ J1-15 TXCE/RXC+ Confidential Rev 0.2 Transition Part Number 21DCE-3 Note Direction...
- Page 9 V.35 DTE High Speed Serial Cable Pin-out (CAB-SS-35MT) 26-Pin Signal Name Drain wire Shield Shell J1-22 MODE_1 J1-23 MODE_0 J1-24 MODE_DCE J1-19 J1-26 J1-06 DCD/DCD+ J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-08 RTS/CTS J1-07 DTR/DSR+...
- Page 10 V.35 DCE High Speed Serial Cable Pin-out (CAB-SS-35FC) 26-Pin Signal Name Drain wire Shield Shell J1-22 MODE_1 J1-23 MODE_0 J1-19 J1-26 J1-06 DCD/DCD+ J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-07 DTR/DSR+ J1-08 RTS/CTS J1-04 RXC/TXCE+...
- Page 11 RS-530 DTE High Speed Serial Cable Pin-out (CAB-SS-530MT) 26-Pin Signal Name Drain wire Shield Shell J1-21 MODE_2 J1-23 MODE_0 J1-24 MODE_DCE J1-26 J1-06 DCD/DCD+ J1-19 DCD/DCD- J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-10 DSR/RTS- J1-03 TXC/TXC+ J1-16...
- Page 12 RS-530 DCE High Speed Serial Cable Pin-out (CAB-SS-530FC) 26-Pin Signal Name Drain wire Shield Shell J1-21 MODE_2 J1-23 MODE_0 J1-26 J1-06 DCD/DCD+ J1-19 DCD/DCD- J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-10 CTS/RTS- J1-03 TXC/TXC+ J1-16 TXC/TXC- J1-12...
- Page 13 Back-to-Back High Speed Serial Cable Pin-out Reports V.35 MT 26-Pin Signal Name Drain wire Shield Shell J1-22 MODE_1 J1-23 MODE_0 J1-24 MODE_DCE J1-19 J1-26 J1-06 DCD/DCD+ J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-08 RTS/CTS J1-07...
- Page 14 60 Pin Cisco High Speed Serial Cable Pin-out Reports V.35 MT 26-Pin Signal Name Drain wire Shield J1-22 MODE_1 J1-23 MODE_0 J1-24 MODE_DCE J1-19 J1-26 J1-06 DCD/DCD+ J1-13 LL/LL+ J1-05 RXD/TXD+ J1-18 RXD/TXD- J1-01 TXD/RXD+ J1-14 TXD/RXD- J1-11 CTS/RTS+ J1-12 DSR/DTR+ J1-08 RTS/CTS...
