User's Guide
M/GE-PSW-SX-01, M/GE-PSW-LX-01
Stand-Alone Media Converters
• Copper to Fiber
• 10/100/1000Base-T to 1000Base-X

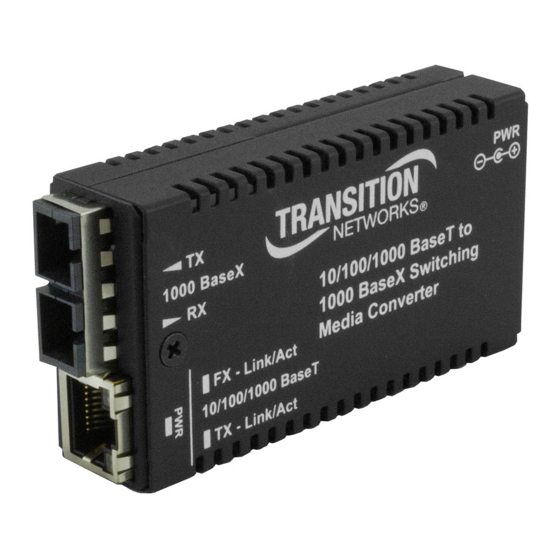

The miniature plug-and-play M/GE-PSW-xX-01, 2-
port Ethernet/Fast Ethernet bridging media
converters allow integrating fiber optic cable to
10/100/1000 Unshielded Twisted Pair (UTP) environments while providing a space-
saving alternative to traditional sized media converters.
M/GE-PSW-xX-01: Auto-Negotiation, AutoCross, Far End Fault (FEF)
Part Number
Copper - Port
10/100/1000Base-T
M/GE-PSW-SX-01 (SC) RJ-45
100 m (328 ft)*
M/GE-PSW-LX-01 (SC) RJ-45
100 m (328 ft)*
*Typical maximum cable distance; actual distance is dependent upon the physical
characteristics of the network.
Fiber-Optic -Port
1000Base-FX
SX, 850 nm, multimode 62.5/125
200m (722 ft), 50/125 550m (1,805 ft)
LX, 1310 nm single mode
10 km (2.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .11
Troubleshooting . . . . . . . . . . . . .12
Contact Us . . . . . . . . . . . . . . . . .13
Declaration of Conformity . . . . .14
Compliance Information . . . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M/GE-PSW-LX-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks M/GE-PSW-LX-01

Summary of Contents for Transition Networks M/GE-PSW-LX-01

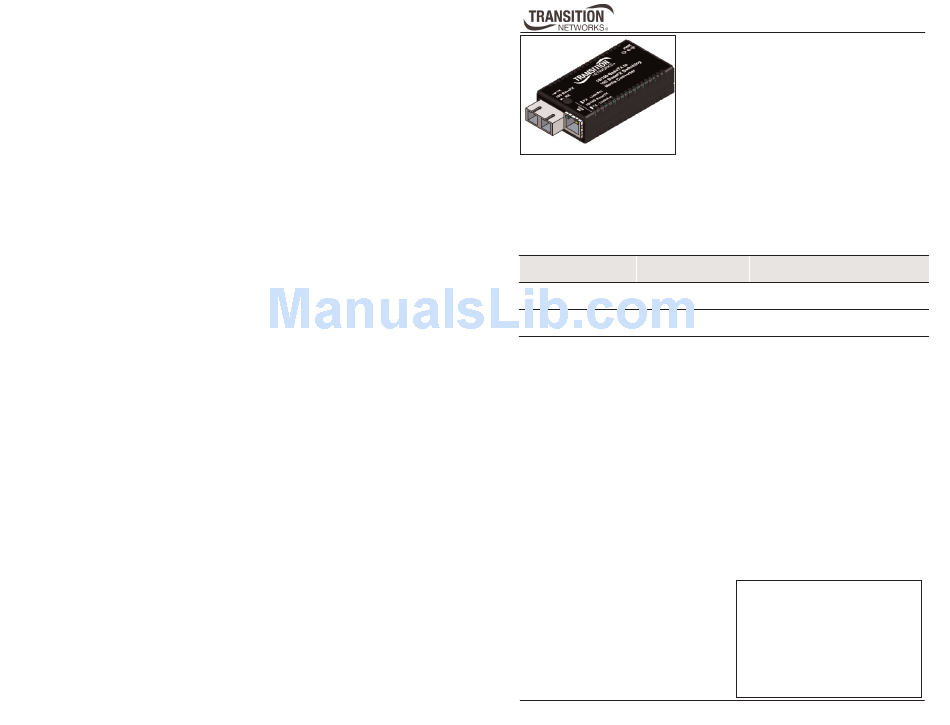

  • Page 1 M/GE-PSW-SX-01 (SC) RJ-45 SX, 850 nm, multimode 62.5/125 100 m (328 ft)* 200m (722 ft), 50/125 550m (1,805 ft) M/GE-PSW-LX-01 (SC) RJ-45 LX, 1310 nm single mode 100 m (328 ft)* 10 km (2.1 miles)* *Typical maximum cable distance; actual distance is dependent upon the physical characteristics of the network.

  • Page 2: Installation

    M/GE-PSW-xX-01 Installation Copper and fiber ports The illustration below shows the front panel of the M/GE-PSW-xX-01 media converters. Front Panel TP Link/Active Fiber Link/Activity Copper Port Fiber Port Power ON LED Electrostatic Discharge (ESD) Always observe the following ESD precautions when installing or handing the M/GE-PSW-xX-01 media converter: •...

  • Page 3: Connect The Twisted-Pair Copper Cable

    LED power indicator light on the front panel. DC power Consult the user’s guide for the Transition Networks SPS-1872-SA DC external power supply for powering the media converter. techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

  • Page 4: Operation

    M/GE-PSW-xX-01 Operation Status LEDs Use the LEDs to monitor the status of the media converter. Front Panel TP-Link/Act LED Fiber-Link/Act LED Power ON LED LED states are as follows: Fiber-Link/Act LED Green = Link (fiber) Flashing = Activity TP-Link/Act LED Green = Link (copper) Flashing = Activity...

  • Page 5: Automatic Link Restoration

    512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: www.transition.com Back pressure Back pressure is used in half duplex mode. It ensures the retransmission of incoming packets when a port using half-duplex is temporarily unable to receive incoming frames.

  • Page 6: Cable Specifications

    Straight-Through Cable Twisted Pair #1 Twisted Pair #2 Twisted Pair #3 Twisted Pair #4 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours) Technical Specifications For use with Transition Networks Model M/GE-PSW-xX-01 converters. Standards: Data rate: Dimensions: Weight: MTBF*: max: -4.0 dBm Packet size: max: -0.0 dBm...

  • Page 7: Troubleshooting

    1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides seminars via live web-based training. Log onto www.transition.com and click the Learning Center link.

  • Page 8: Declaration Of Conformity

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 9 All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2001-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic, or mechanical—without written permission from Transition Networks.
