Transition Networks DataBand EV User Manual page 20

20 DataBand E V User Manual

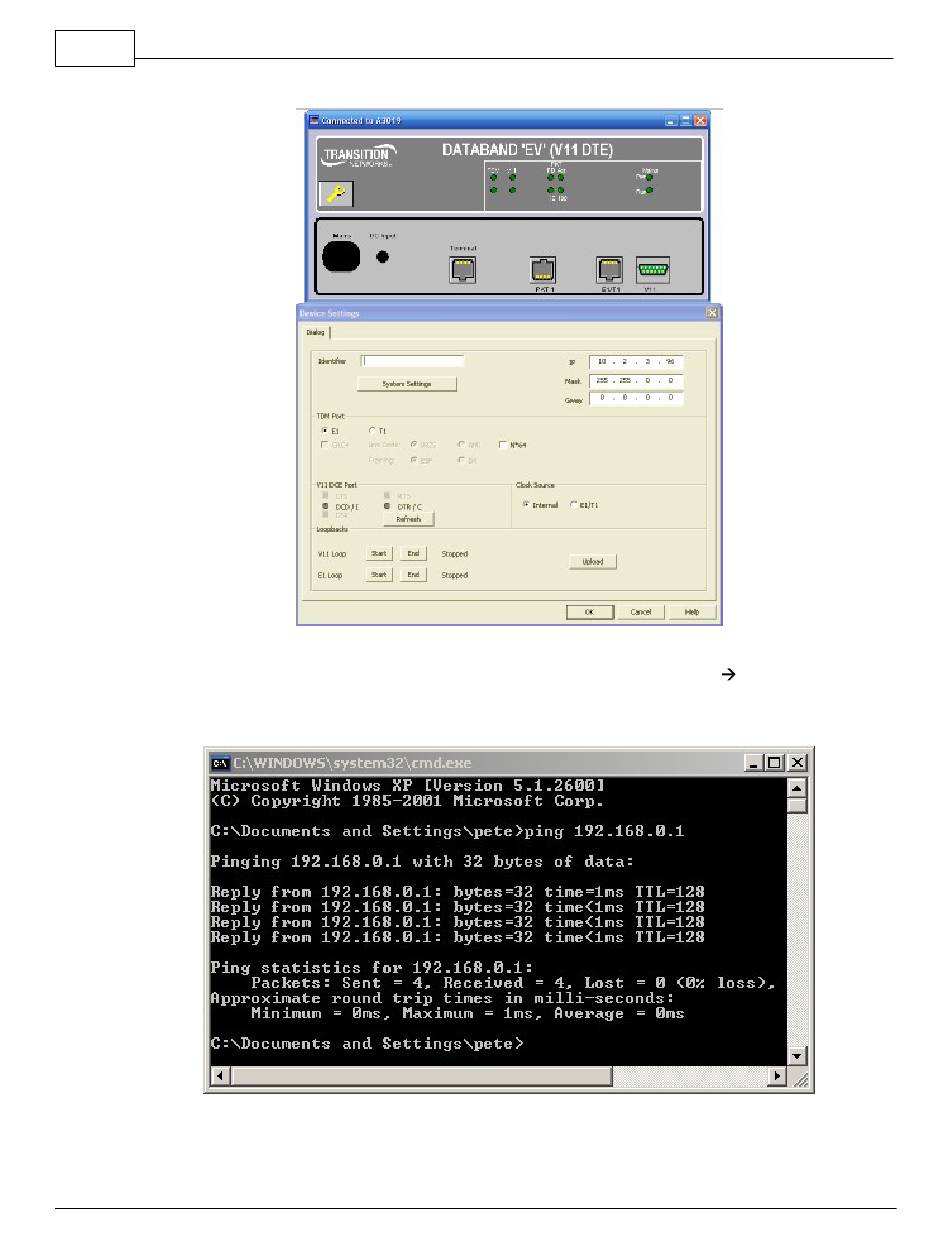

A l l con f i gu rat i on ch an ges are m ade f rom t h i s wi n dow. Th e port s di spl ayed m ay v ary depen di n g on m odel
5. If DbMgr does not connect, please try a ping test to see if the IP address is active. Go to Start
Return and the Command Prompt window will appear. Enter 'ping 192.168.0.1' and press Return. You will see replies if the
IP address is active.
6. Now try disconnecting the DataBand EV and retrying the test. If you see replies, a different device is using the same IP address as
the DataBand EV. Either connect to the unit via terminal to change the IP address or disconnect the other device. DataBand EV
A pi n g t est prov es t h at t h e P C can see t h e D at aBan d E V' s I P address
Run... and type 'cmd'. Press
© 2012 Patapsco Designs Ltd
