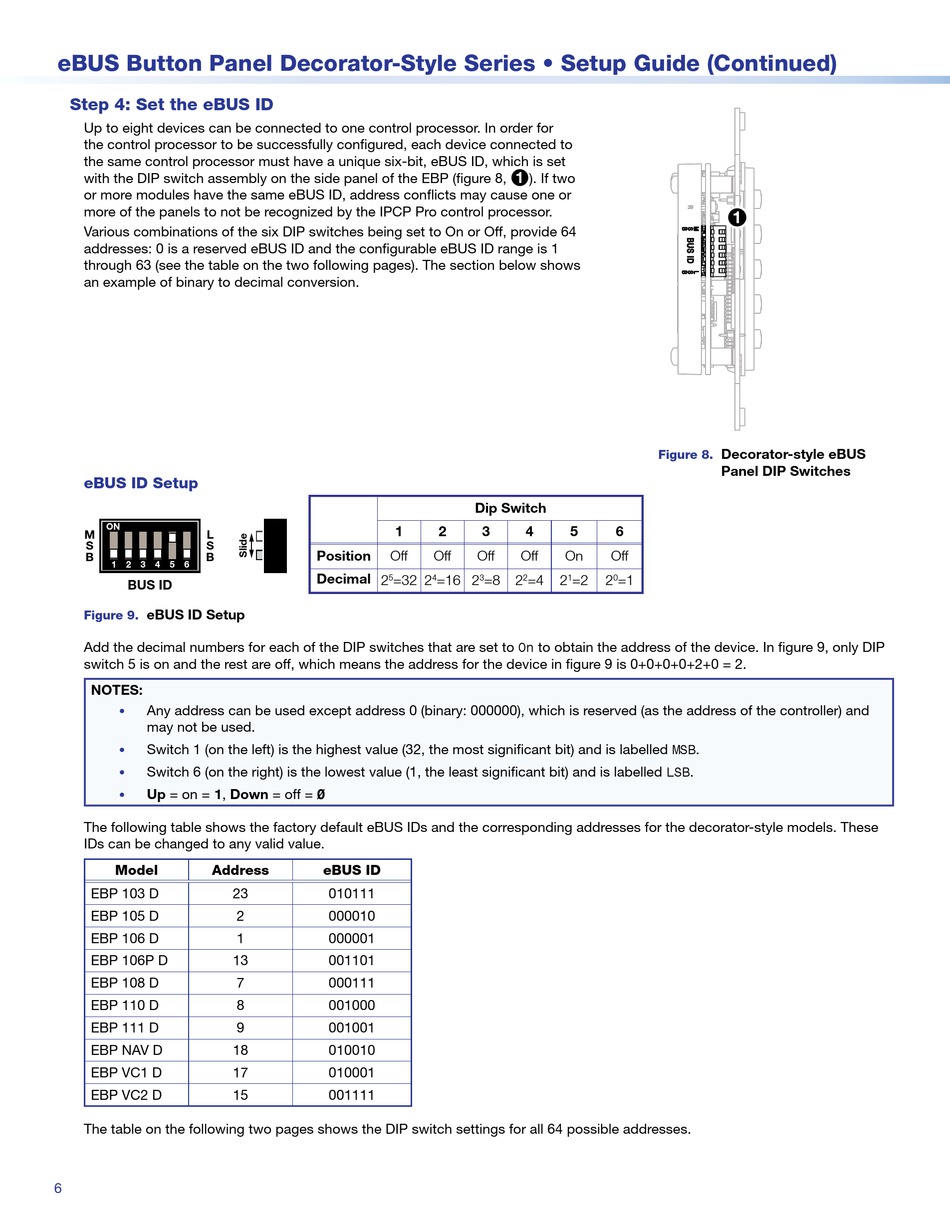

eBUS Button Panel Decorator-Style Series • Setup Guide (Continued)
Step 4: Set the eBUS ID
Up to eight devices can be connected to one control processor. In order for
the control processor to be successfully configured, each device connected to
the same control processor must have a unique six-bit, eBUS ID, which is set
with the DIP switch assembly on the side panel of the EBP (figure 8,
or more modules have the same eBUS ID, address conflicts may cause one or
more of the panels to not be recognized by the IPCP Pro control processor.
Various combinations of the six DIP switches being set to On or Off, provide 64
addresses: 0 is a reserved eBUS ID and the configurable eBUS ID range is 1
through 63 (see the table on the two following pages). The section below shows
an example of binary to decimal conversion.
eBUS ID Setup
ON
M
L
S
S
B
B
1 2 3 4 5 6
BUS ID
eBUS ID Setup
Figure 9.
Add the decimal numbers for each of the DIP switches that are set to
switch 5 is on and the rest are off, which means the address for the device in figure 9 is 0+0+0+0+2+0 = 2.
NOTES:
Any address can be used except address 0 (binary: 000000), which is reserved (as the address of the controller) and
•
may not be used.
Switch 1 (on the left) is the highest value (32, the most significant bit) and is labelled
•
Switch 6 (on the right) is the lowest value (1, the least significant bit) and is labelled
•
Up = on = 1, Down = off = 0
•
The following table shows the factory default eBUS IDs and the corresponding addresses for the decorator-style models. These
IDs can be changed to any valid value.
Model
Address
EBP 103 D
23
EBP 105 D
EBP 106 D
EBP 106P D
13
EBP 108 D
EBP 110 D
EBP 111 D
EBP NAV D
18
EBP VC1 D
17
EBP VC2 D
15
The table on the following two pages shows the DIP switch settings for all 64 possible addresses.
6
1
Position
Off
Decimal
2
=32
5
eBUS ID
010111
2
000010
1
000001
001101
7
000111
8
001000
9
001001
010010
010001
001111
1
). If two
Dip Switch
2
3
4
5
Off
Off
Off
On
2
=16
2
=8
2
=4
2
=2
4
3
2
1
On
to obtain the address of the device. In figure 9, only DIP
1 1
Decorator-style eBUS
Figure 8.
Panel DIP Switches
6
Off
2
=1
0
MSB
.
.
LSB
