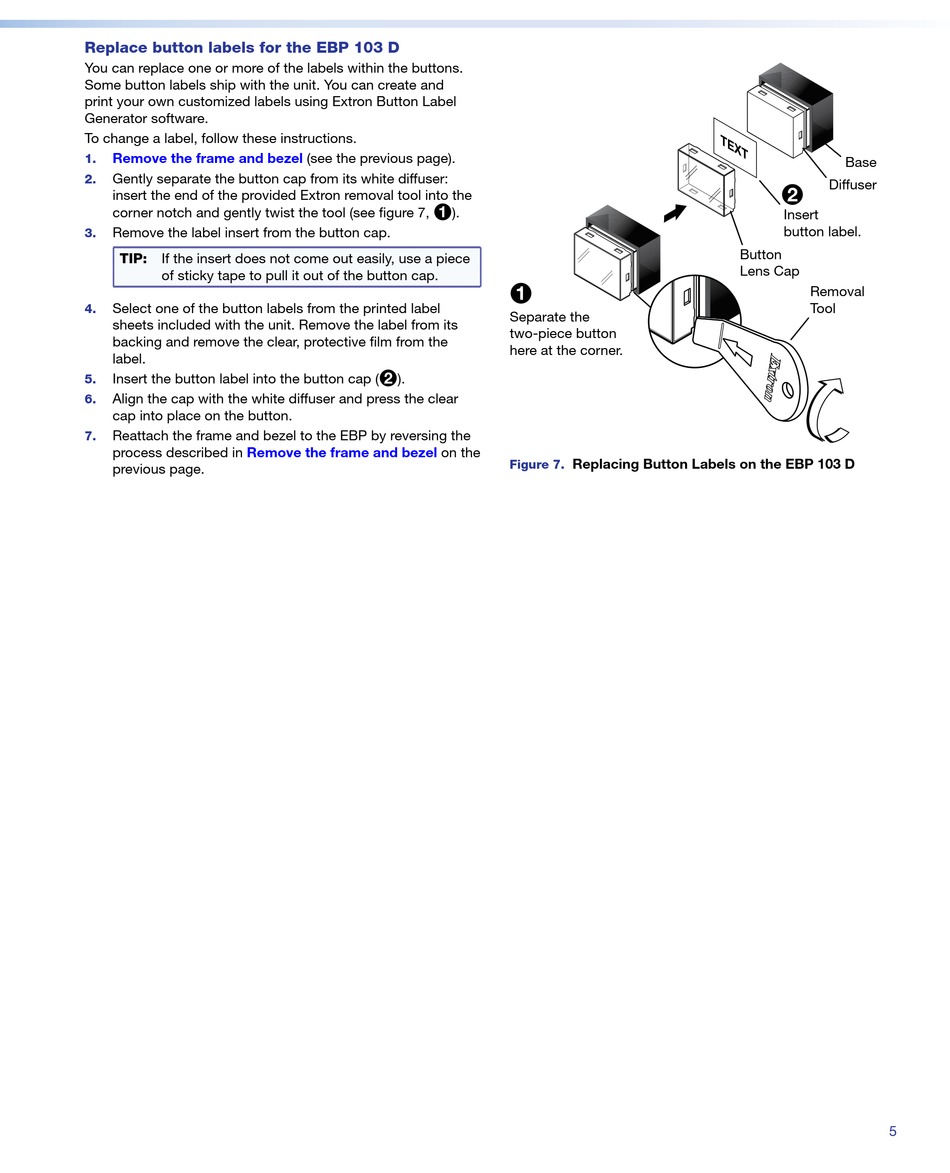

Replace button labels for the EBP 103 D
You can replace one or more of the labels within the buttons.
Some button labels ship with the unit. You can create and
print your own customized labels using Extron Button Label
Generator software.
To change a label, follow these instructions.
Remove the frame and bezel
1.
Gently separate the button cap from its white diffuser:
2.
insert the end of the provided Extron removal tool into the
corner notch and gently twist the tool (see figure 7,
Remove the label insert from the button cap.
3.
TIP: If the insert does not come out easily, use a piece
of sticky tape to pull it out of the button cap.
Select one of the button labels from the printed label
4.
sheets included with the unit. Remove the label from its
backing and remove the clear, protective film from the
label.
Insert the button label into the button cap (
5.
Align the cap with the white diffuser and press the clear
6.
cap into place on the button.
Reattach the frame and bezel to the EBP by reversing the
7.
Remove the frame and bezel
process described in
previous page.
(see the previous page).
1
).
2
).
on the
1
Separate the
two-piece button
here at the corner.
Replacing Button Labels on the EBP 103 D
Figure 7.
Product Category
T E
X T
Base
Diffuser
2
Insert
button label.
Button
Lens Cap
Removal
Tool
5
