PVG-EX 32 Proportional Valve Group
PVG-EX 32 Actuation
PVM Manual actuation
©
Danfoss | June 2019
The PVM variants are based on a generic platform with a selection of additional features, enabling you to
tailor the PVM to suit the demands of any hydraulic system, which includes the following main variants:
•
PVM manual actuation or override of a function
•
Spring centering cover without manual override (PVML)
‒
Optional with lever base
‒
Optional with lever base and lever
‒
Optional flow adjustment screws
The adjustment screws are intended for limiting the spool travel and thereby the maximum achievable
flow.

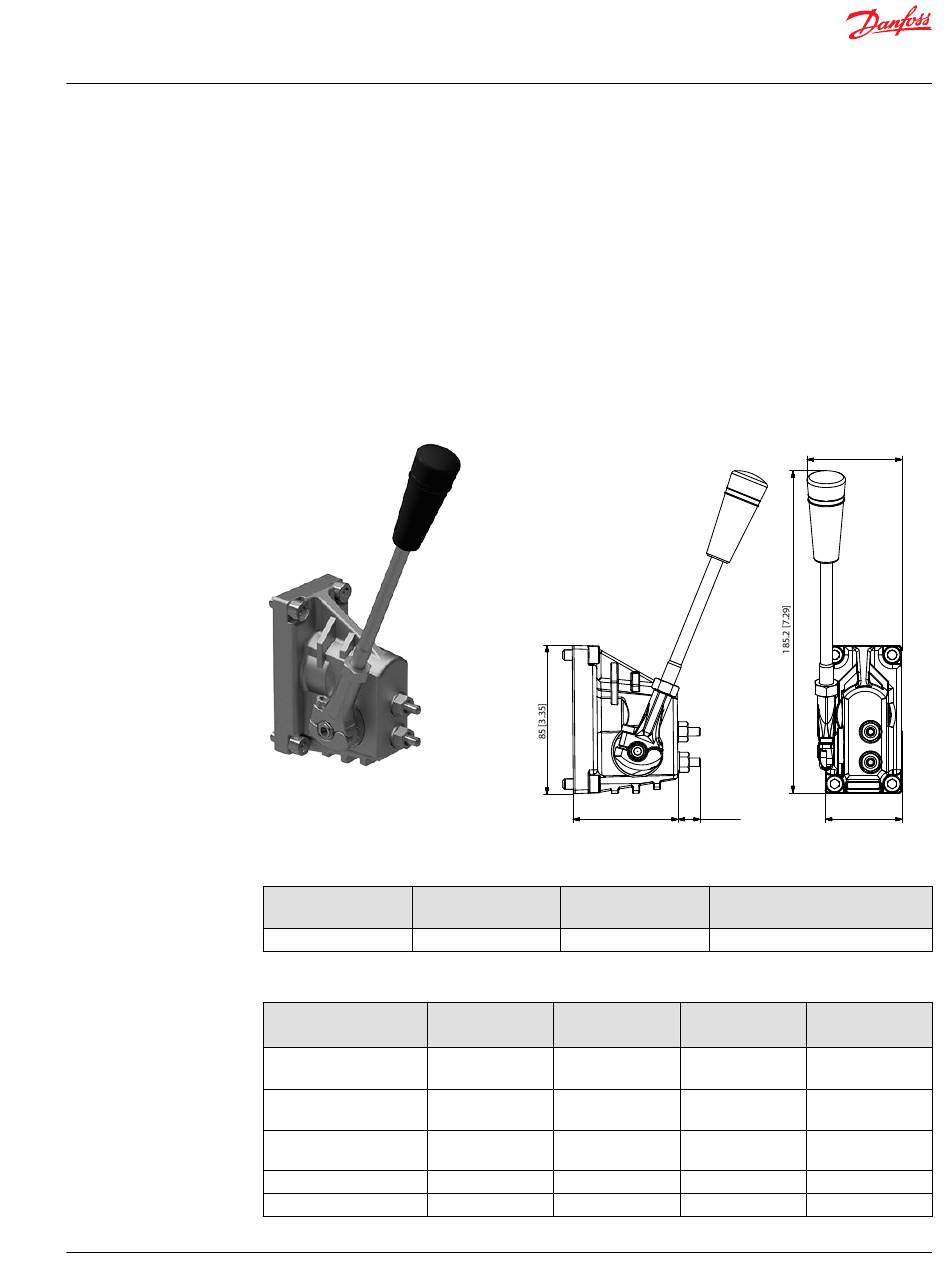

PVM cover
Control lever data
No lever position
Standard control
range
2 x 6
± 13.4°
PVM versions torque data
Spool displacement
PVM+PVMD
PVM+PVE
From neutral position
2.2 ±0.2 N•m
[19.5 ±1.8 lb•in]
Max. spool travel
2.8 ±0.2 N•m
[24.8 ±1.8 lb•in]
Into float position
–
Away from float position
–
From any other position
–
PVM dimensions
60 [2.36]
13 [0.51]
Control lever range
± 19.5°
PVM+PVH
PVM+PVMR
17 N•m [3.8 lb•in]
2.5 ±0.2 N•m
[22.1 ± 1.8 lb•in]
6.9 ±0.2 N•m
–
[61.0 ±1.8 lb•in]
–
–
–
–
–
8.5 N•m [73.3 lb•in]
54.3 [2.14]
44 [1.73]
Control lever range + float position
22.3°
PVM+PVMF
22 N•m [5.0 lb•in]
–
60 N•m
[13.5 lb•in]
28 N•m [6.3 lb•in]
–
