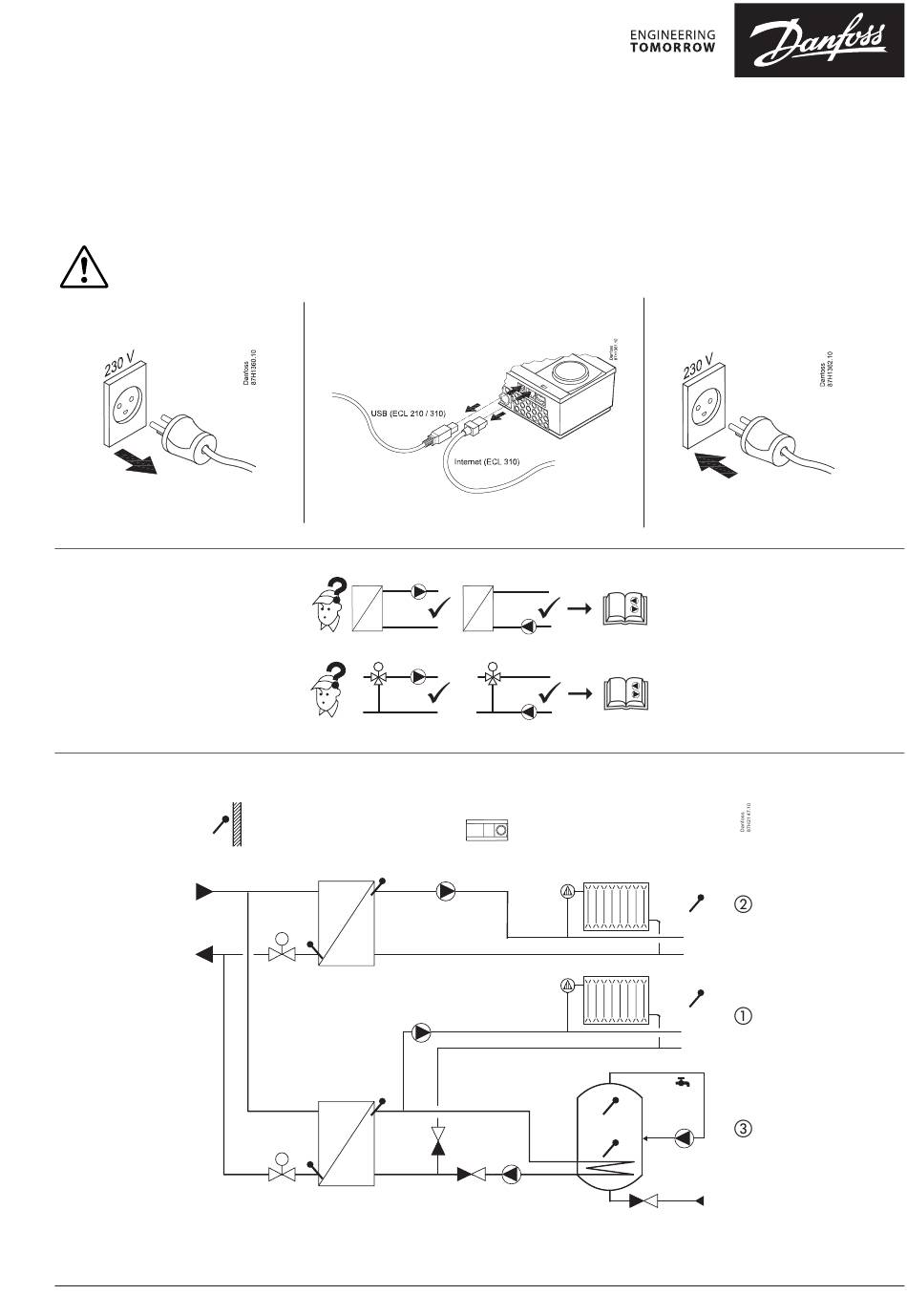

- Page 1 Installation Guide ECL Comfort 210 / 310, A267 (code no. 087H3816) A267.1 (ex. a): ECL 210 / (310) (S7) (S7) VI.GU.K3.00 | 1 © Danfoss | 2018.05...
- Page 2 Installation Guide, ECL Comfort 210 / 310, A267 A267.1 (ex. b): ECL 210 / (310) (S7) (S7) A267.1 (ex. c): ECL 210 / (310) (S7) (S7) 2 | © Danfoss | 2018.05 VI.GU.K3.00...
- Page 3 Installation Guide, ECL Comfort 210 / 310, A267 A267.1 (ex. d): ECL 210 / (310) (S7) (S7) A267.1 (ex. e): ECL 210 / (310) (S7) (S7) VI.GU.K3.00 © Danfoss | 2018.05 | 3...
- Page 4 Installation Guide, ECL Comfort 210 / 310, A267 ECL Comfort 210: 230 V a.c. 4 (2) A / 230 V a.c. 0,2 A / 230 V a.c. 230 V a.c. A267.1 ex. a, A267.1 ex. d: P2 A267.1 ex. b: A267.1 ex.
- Page 5 Installation Guide, ECL Comfort 210 / 310, A267 ECL Comfort 210: 24 V a.c. 4 (2) A / 24 V a.c. 1 A / 24 V a.c. 24 V a.c. A267.1 ex. a, A267.1 ex. d: P2 A267.1 ex. b: A267.1 ex.
- Page 6 Installation Guide, ECL Comfort 210 / 310, A267 230 V a.c. / 24 V a.c. safety thermostat 1-step closing ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 6 | © Danfoss | 2018.05...
- Page 7 Installation Guide, ECL Comfort 210 / 310, A267 230 V a.c. / 24 V a.c. safety thermostat 2-step closing ECL 210 / 310 ECL 210 / 310 VI.GU.K3.00 © Danfoss | 2018.05 | 7...
- Page 8 Installation Guide, ECL Comfort 210 / 310, A267 A267 (ECL 210) Pt 1000 (1000 Ω / 0 °C) ECL Comfort 210 / 296 / 310 ECL Comfort 210 / 296 / 310 230 V a.c. 230 V a.c. 8 | © Danfoss | 2018.05...
- Page 9 Installation Guide, ECL Comfort 210 / 310, A267 ECA 30 / 31 ECA 30 / 31 ECL 210 / 296 / 310 ESM-10 S.Gnd ECA 30 / 31 ESM-10 Master / slave VI.GU.K3.00 © Danfoss | 2018.05 | 9...
- Page 10 Installation Guide, ECL Comfort 210 / 310, A267 Modbus ECL 210 / 296 / 310 M-bus ECL 296 / 310 M-bus ECL 296 / 310 METER METER S.Gnd 10 | © Danfoss | 2018.05 VI.GU.K3.00...
- Page 11 Installation Guide, ECL Comfort 210 / 310, A267 Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271 1309 1000 1347 1385 1423 1461...
- Page 12 Installation Guide, ECL Comfort 210 / 310, A267 ECA 30 12 | © Danfoss | 2018.05 VI.GU.K3.00...
- Page 13 Installation Guide, ECL Comfort 210 / 310, A267 VI.GU.K3.00 © Danfoss | 2018.05 | 13...
- Page 14 Installation Guide, ECL Comfort 210 / 310, A267 14 | © Danfoss | 2018.05 VI.GU.K3.00...
- Page 15 Installation Guide, ECL Comfort 210 / 310, A267 VI.GU.K3.00 © Danfoss | 2018.05 | 15...
- Page 16 Installation Guide, ECL Comfort 210 / 310, A267 *087H9082* ECL Comfort 210 / 310, A267: www.heating.danfoss.com *VIGUK300* VI.GU.K3.00 16 | © Danfoss | DHS-SMT/DK | 2018.05...
