PVG-EX 32 Proportional Valve Group
General information

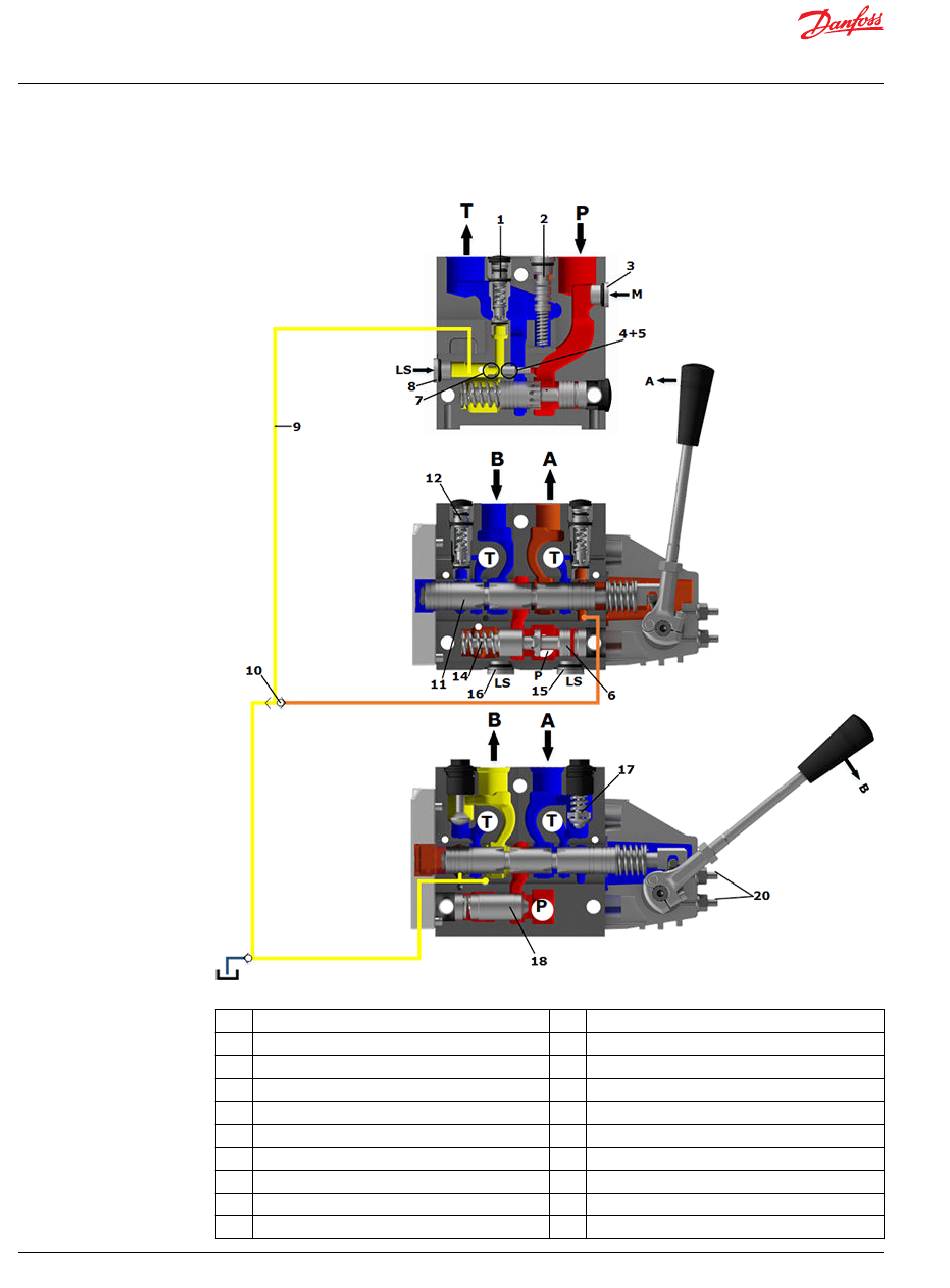

Sectional view
10 |
©
Danfoss | June 2019
1.
Pressure relief valve
2.
Pressure reduction valve for pilot oil supply
3.
Pressure gauge connection
4.
Plug, open center
5.
Orifice, closed center
6.
Pressure adjustment spool
7.
Plug, closed center
8.
LS connection
9.
LS signal
10.
Shuttle valve
11.
Main spool
12.
LS pressure limiting valve
13.
Shock and suction valve, PVLP
14.
Pressure compensator
15.
LS connection, port A
16.
LS connection, port B
17.
Suction valve, PVLA
18.
Load drop check valve
19.
Pilot oil supply for PVE
20.
Maximum oil flow adjustment screws for A/B ports
