Technical Information
PVG-EX 32 Proportional Valve Group
PVP Inlet Modules
© Danfoss | June 2019

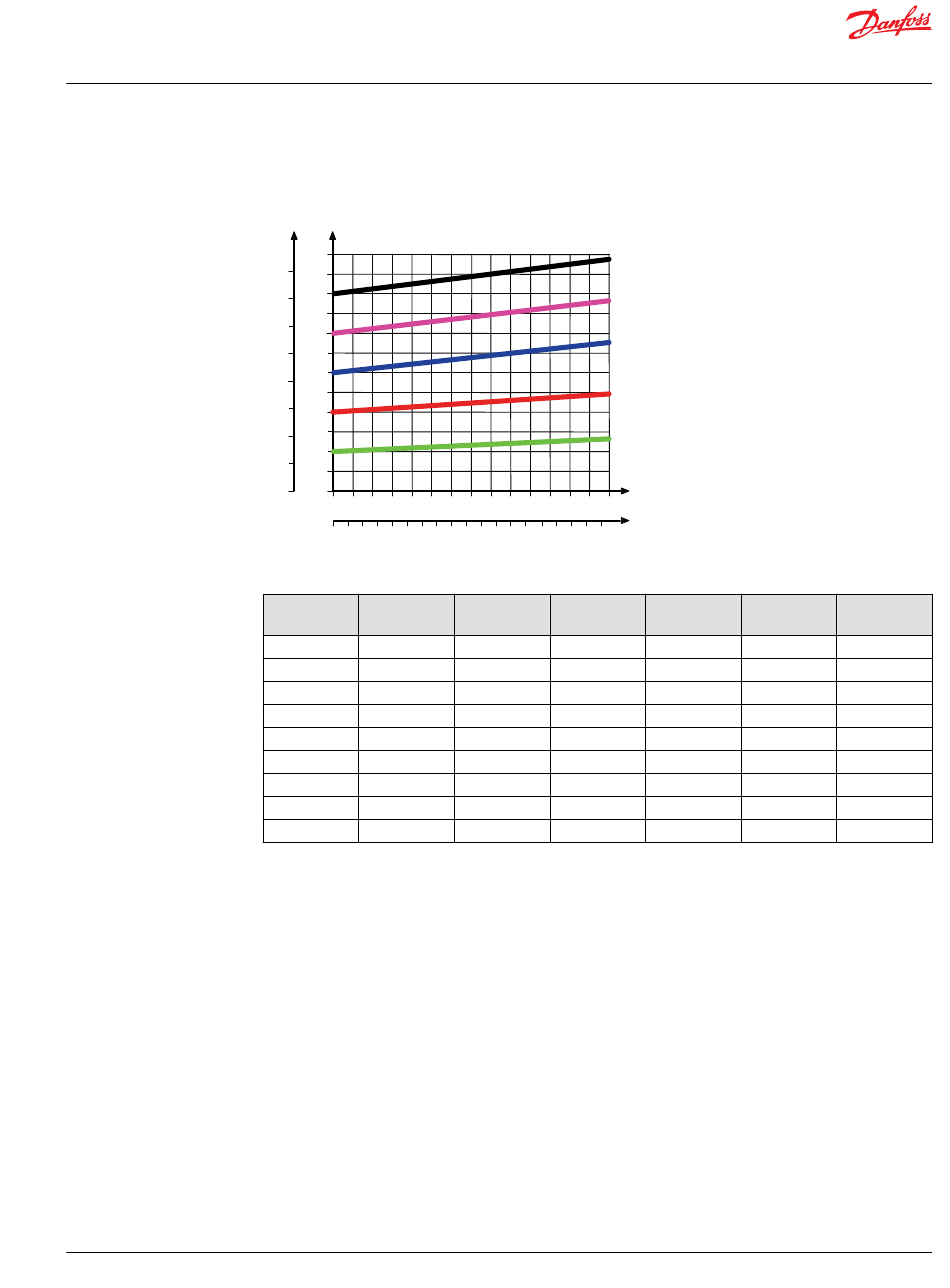

Theoretical Performance Graphs
Integrated LS pressure relief valve characteristics
P P
[psi] (bar)
300
4000
250
3000
200
150
2000
100
1000
50
0 0
0 20 40
0 4 8 12
Part numbers for Closed Center PVP
Part number P-port
11030683 G3/4
157B5001 G1/2
157B5101 G3/4
157B5201 7/8-14 UNF
157B5301 1 1/16-12 UNF
15B5907 1 1/16-12 UNF
157B5922 JIS 1/2
157B5927 JIS 3/4
157B5946 G1/2
**
LS1 is an extra LS-port
60 80 100 120 140
16 20 24 28 32 36
[US gal/min]
T-port LS-port
**
(LS1 )
G3/4 G1/4 (G1/4)
G3/4 G1/4
G3/4 G1/4
1 1/16-12 UNF 1/2-20 UNF
1 1/16-12 UNF 1/2-20 UNF
1 1/16-12 UNF 1/2-20 UNF
JIS 3/4 JIS 1/4
JIS 3/4 JIS 1/4
G3/4 G1/4 (G1/8)
Q
[l/min]
Q
M-port T0-port
G1/4 G1/4
G1/4 -
G1/4 -
1/2-20 UNF --
1/2-20 UNF -
1/2-20 UNF -
JIS 1/4 -
JIS 1/4 -
G1/4 -
