Picture display brightup
settings

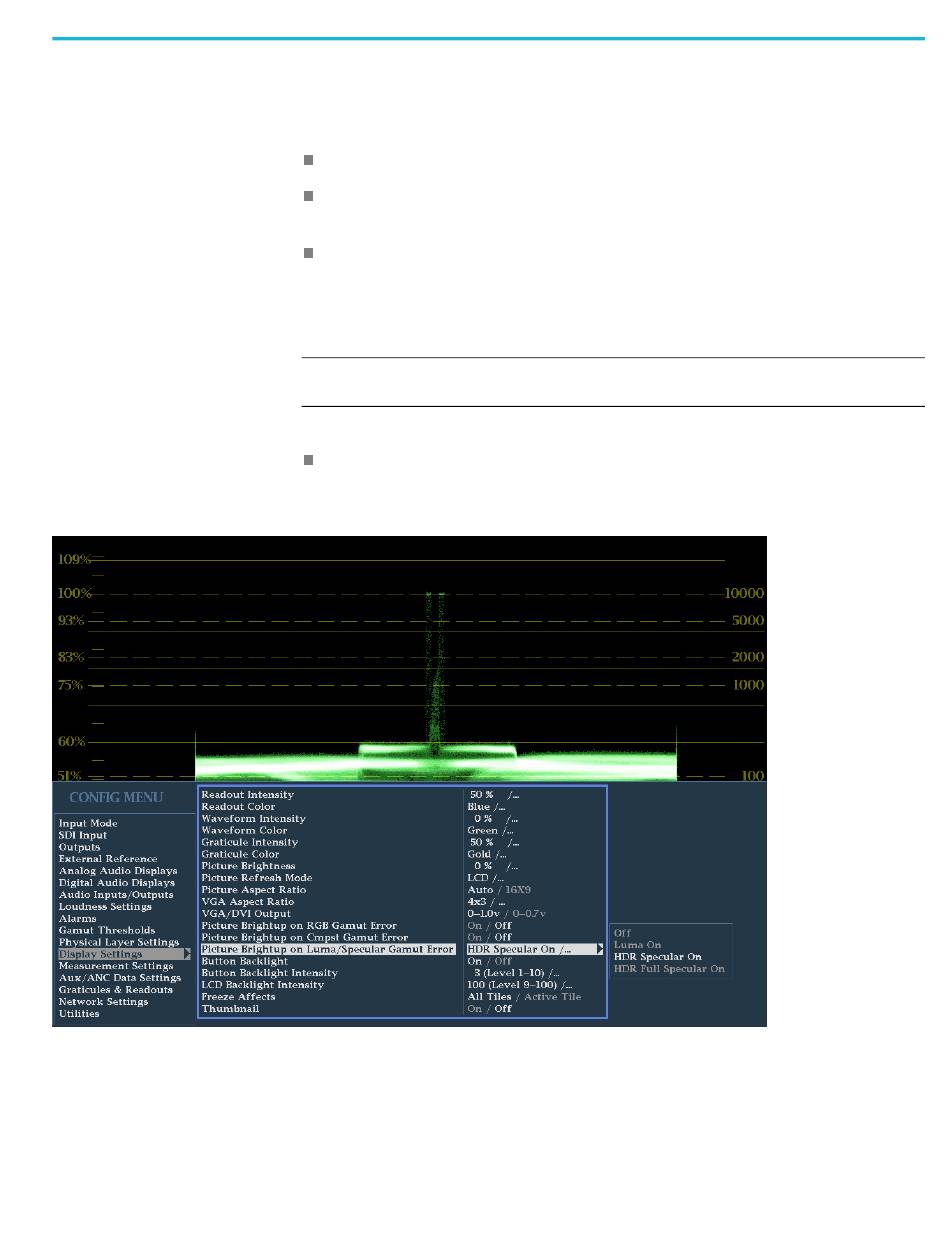

Figure 4: CONFIG menu showing the Picture Brightup on Luma/Specular Gamut Error selection
WFM5200 Series and WVR5200 Series Release Notes
The CONFIG > Display Settings > Picture Brightup on Luma/Specular Gamut
Error menu has new selections for HDR monitoring:
Off. For this setting, the highlight overlay is turned off in the picture display.
Luma. For this setting, the highlight overlay is turned on for Luma values
that exceed signal levels based on gamut thresholds for Luma settings.
HDR Specular On. For this setting, the highlight overlay is turned on for
selected HDR settings and produces HDR zebra highlights in the picture for
large areas of the trace that exceed 100 nits. HDR zebra highlighting allows
users to verify the location and the size of the specular highlights.
NOTE.
The Specular Gamut Error selection is only displayed on the Picture
Brightup menu when option PROD is installed.
HDR Specular Full On. For this setting, the highlight overlay is turned on
for HDR Full settings and produces HDR zebra highlights in the picture for
large areas of the trace that exceeding 100 Nits.
