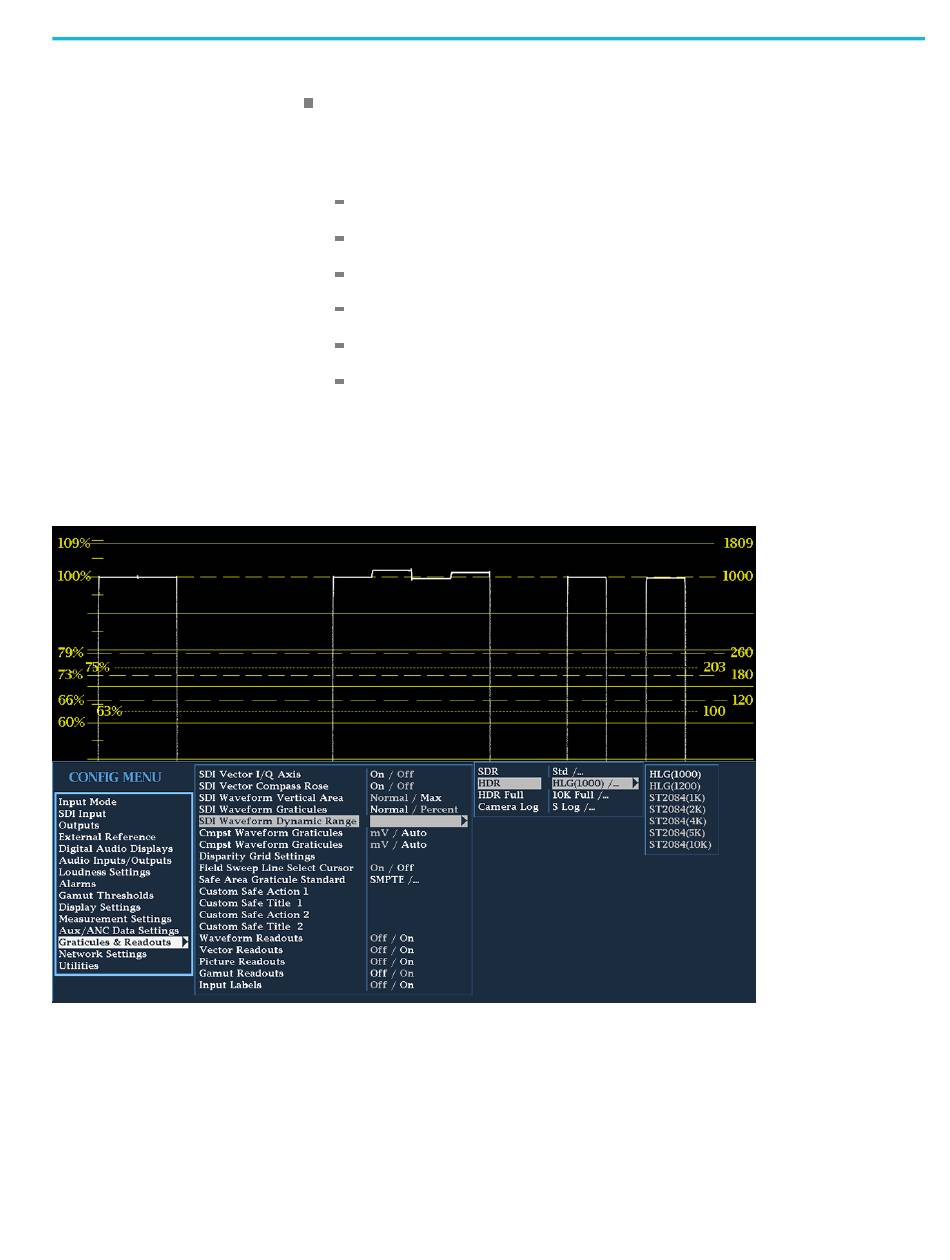

Figure 2: CONFIG menu showing the SDI HDR Waveform Graticule selection
WFM5200 Series and WVR5200 Series Release Notes
Camera Log. Use this setting to use a graticule with a curve based on the
camera manufacturers specification. When Camera Log is selected as the
dynamic range, the CONFIG > Graticules and Readouts menu contains the
following graticule settings:
S Log. This graticule uses the Sony S Log curve.
S Log2. This graticule uses the Sony S Log2 curve.
S Log3. This graticule uses the Sony S Log3 curve.
C Log. This graticule uses the Canon C Log curve.
Log C. This graticule uses the ARRI Log C curve at (ISO) El 800.
BT.709. This graticule uses the traditional ITU-R BT.709 representation.
HDR graticule selection. The CONFIG > Graticules and Readouts menu now
contains a setting for selecting the HDR graticule to be used by the Waveform
display: HLG(1000), HLG(1200), ST2084(1K), ST2084(2K), ST2084(5K), or
ST2084(10K).
Release notes
5
