LED OPERATION

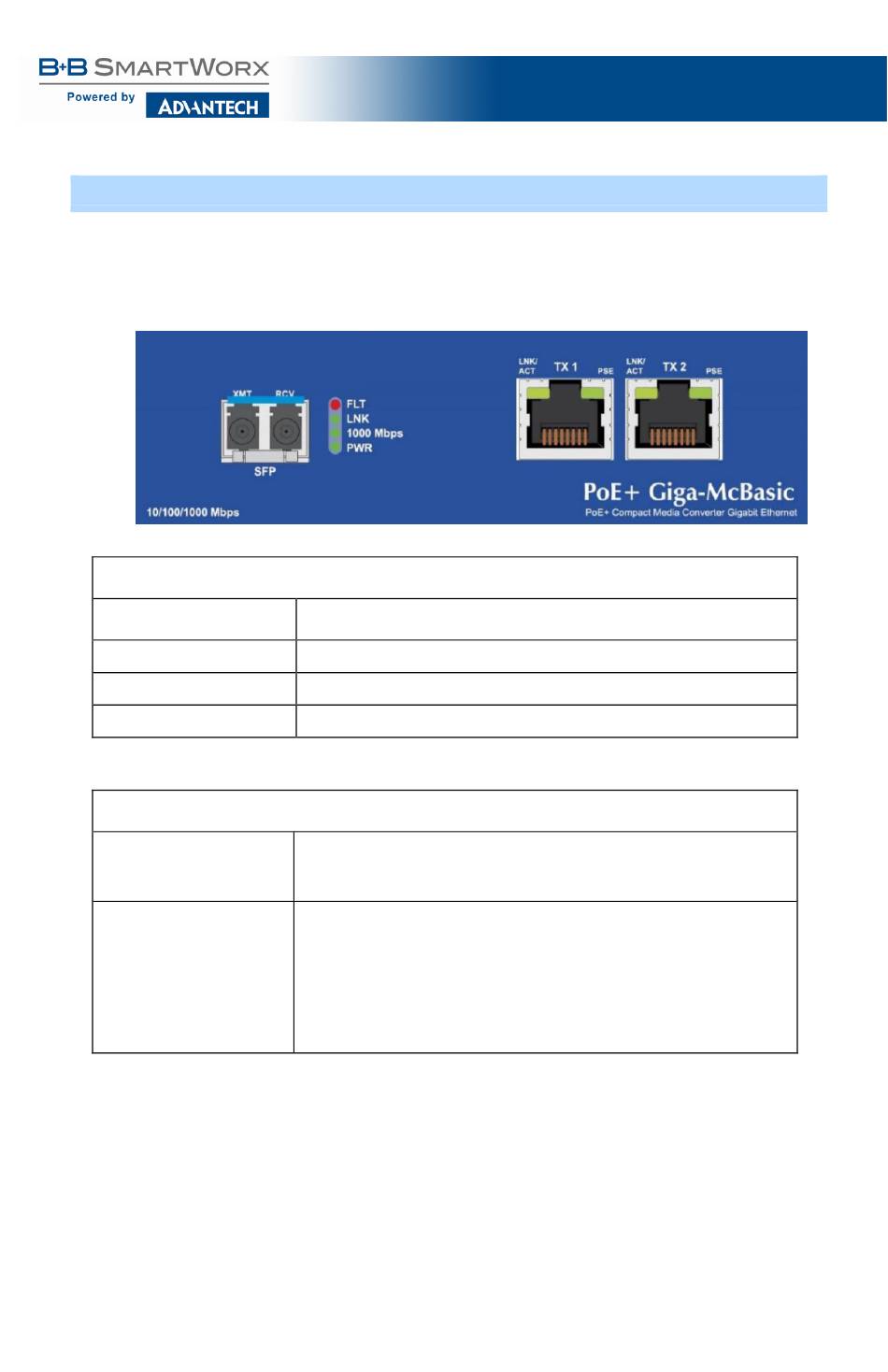

The PoE+ Giga-McBasic LFPT includes LEDs for three ports, as shown below:
PoE+ Giga-McBasic LFPT SFP
SFP LED Functions
FLT
LNK
1000 Mbps
PWR
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
PSE (TX1, TX2)
PoE & PoE+ Giga-McBasic
Glows red when a fault has been detected on the unit.
Glows green with a valid link.
Glows green when SFP is running at 1000Mbps.
Glows green when unit is powered.
Glows green with a valid link.
Blinks green when activity is detected.
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an
overload or short; 4 Hz flashes to indicate out-of-range voltage or
over-temperature.
Off if the port is not supplying power.
13
