TROUBLESHOOTING

If the PoE+ Giga-McBasic LFPT is not responding to the power provided to it,
the following conditions may be responsible:
• Blinks green during fault conditions: 1 Hz flashes indicating an overload
or short; 4 Hz flashes indicating out-of-range voltage or over-temperature.
The PSE LED should maintain solid green to indicate consistent power.
Check the PD device and its requirements.
• If the PoE injector has power that can be verified, but the PSE LED is Off,
then contact B+B SmartWorx Technical Support.

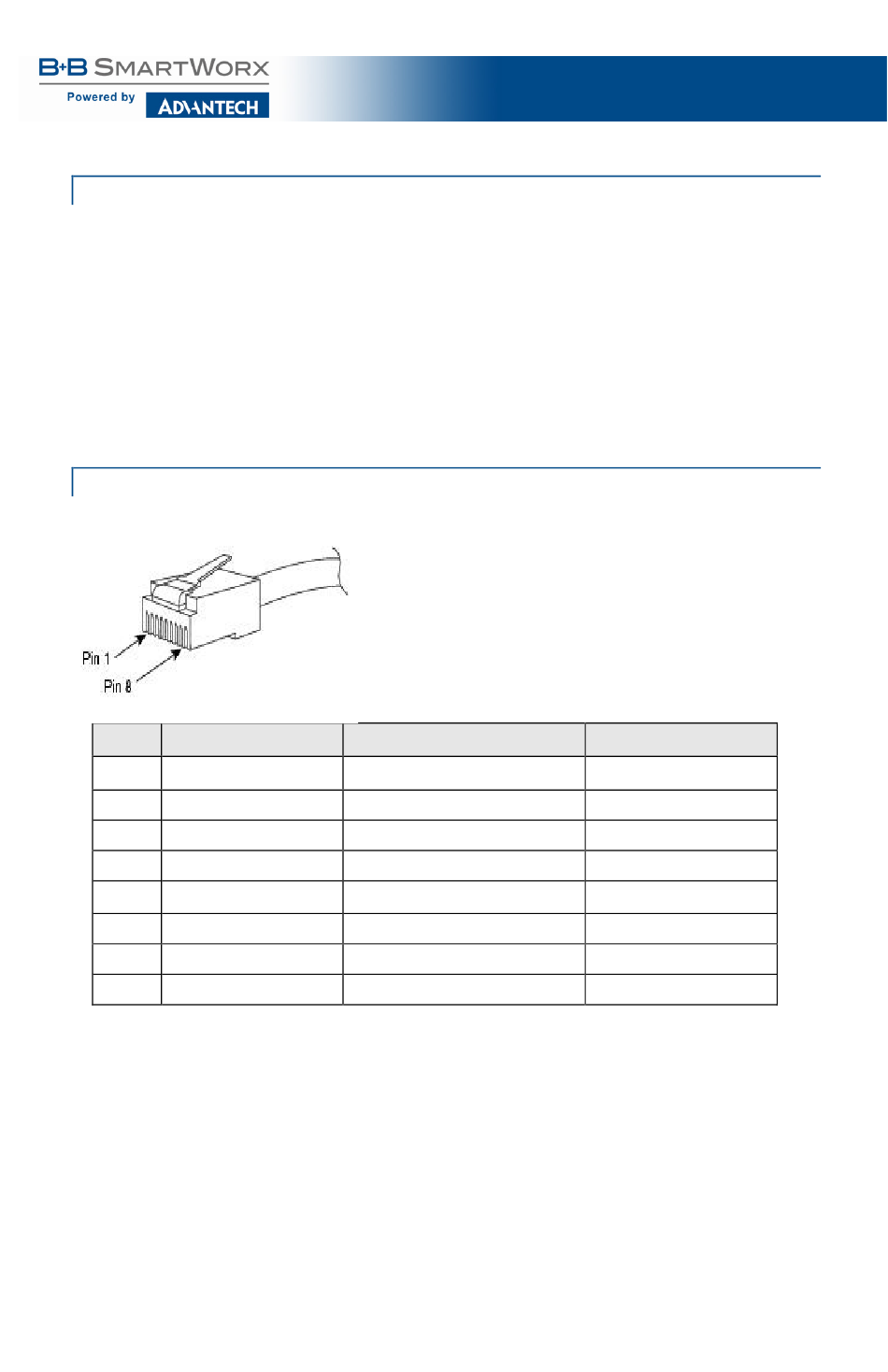

RJ-45 PINOUTS

The following table lists the pin configuration for the RJ-48 connector.
Pin# Signal Name 1000M
1 TXD1+
2 TXD1-
3 RXD2+
4 D3+
5
D3-
6 RXD2-
7 D4+
8 D4-
PoE & PoE+ Giga-McBasic
Signal Direction 10/100M
Out*
Out*
IN*
IN*
15
PoE & PoE+ (ALT-B)
+V
+V
-V
-V
LFPT
