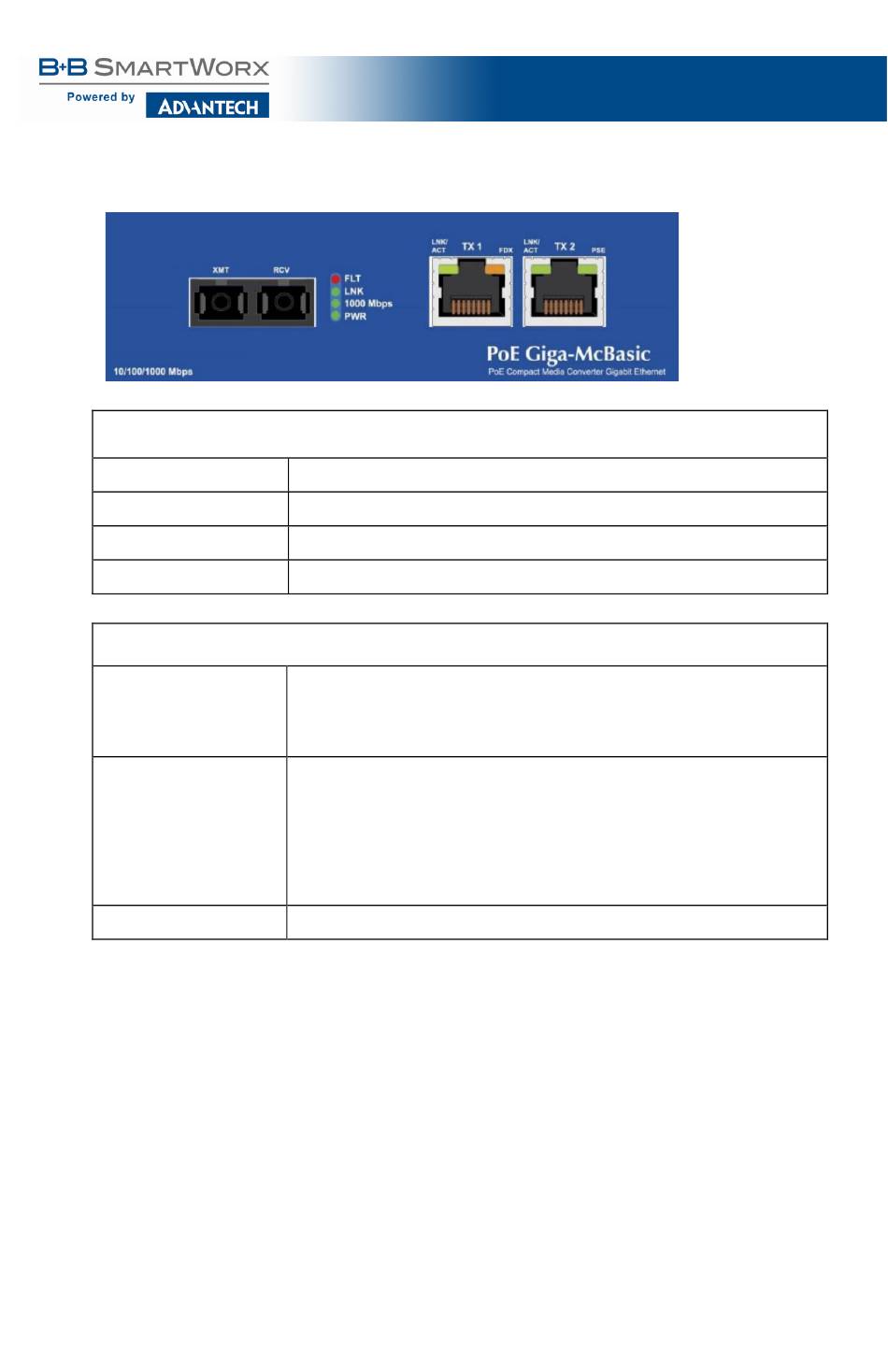

PoE Giga-McBasic LFPT 1x9
1x9 LED Functions
FLT
LNK
1000 Mbps
PWR
RJ-45 LED Functions
LNK/ACT (TX1, TX2)
PSE (TX2)
FDX (TX1)
NOTE: The fixed twisted-pair port labeled PSE is the only port capable of providing PoE.
PoE & PoE+ Giga-McBasic
Glows red when a fault has been detected on the unit.
Glows green with a valid link.
Glows green when is running at 1000Mbps.
Glows green when unit is powered.
Glows green with a valid link.
Blinks green when activity is detected.
Glows green when port is supplying PoE power.
Blinks green during fault conditions: 1 Hz flashes to indicate an
overload or short; 4 Hz flashes to indicate out-of-range voltage or over-
temperature.
Off if the port is not supplying power.
Glows amber when port is running full duplex.
