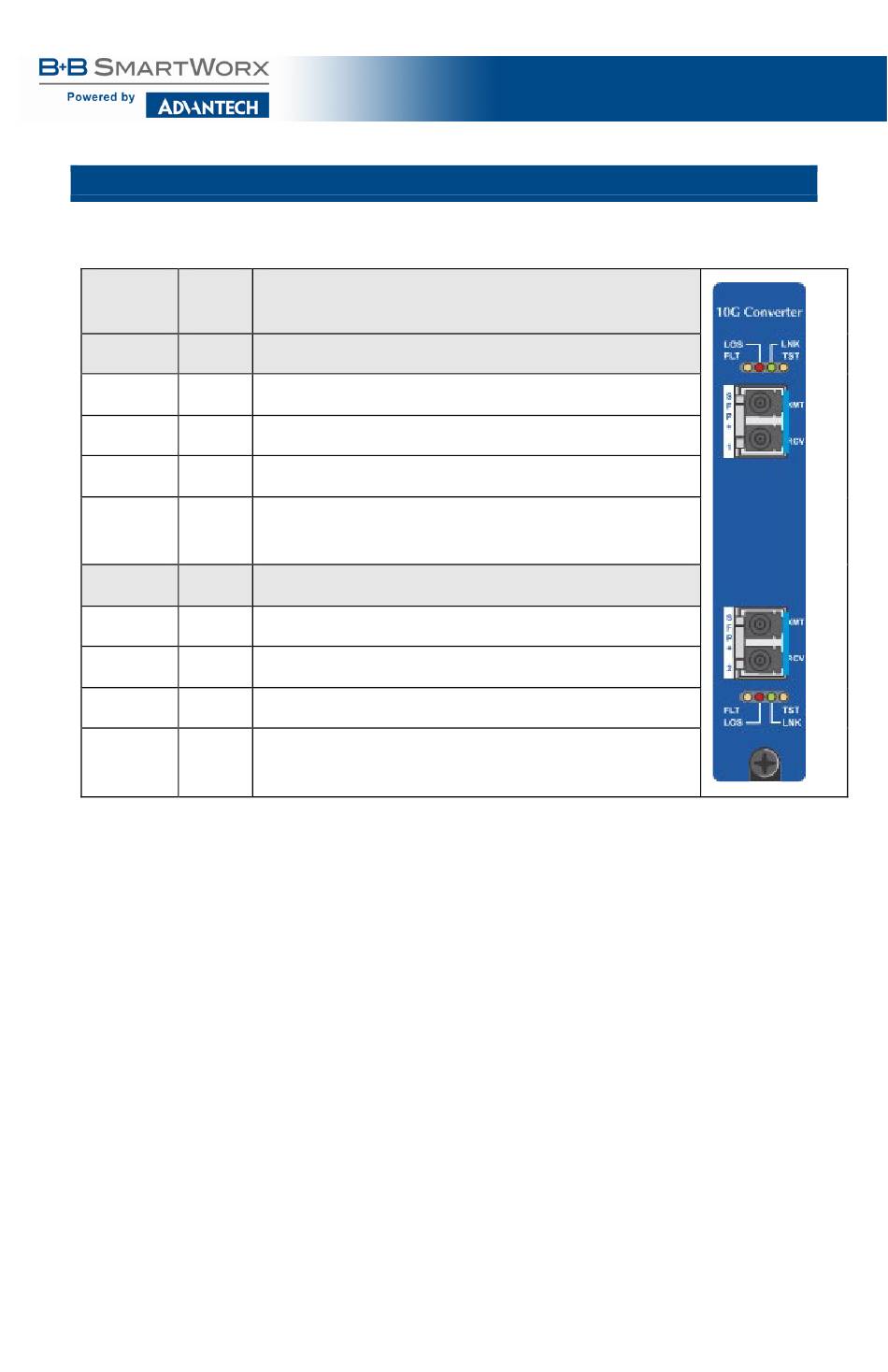

LED OPERATION

Each iMcV-10G-Converter SFP+/SFP+ features diagnostic LEDs that
provide information on features and ports.
Name Color
SFP+1
FLT Yellow
LOS
Red
LNK
Green
TST
Yellow
SFP+2
FLT
Red
LOS
Yellow
LNK Green
TST Yellow
NOTE: Regardless of whether an SNMP Management Card is installed in the chassis, or not, if you insert a
10G card with the SFP+ ports populated, the 10G card should go through a short initialization (boot-up). After
that occurs, the two LEDs on the left (LOS, FLT) will reflect Red, Amber, until you connect the SFP+ ports to
your switch or whatever END Device 10G product you have. The LNK LED will flash green until the ports are
synchronized and then remain a solid green.
iMcV-10G Fiber Mode Converter
ON when a DDMI fault is detected or SFP+ not installed.
ON when no link is detected.
ON when the Optical Link is good.
ON when Test Function is enabled;
"Blinks" if test pattern received has any errors.
ON when a DDMI fault is detected or SFP+ not installed.
ON when no link is detected.
ON when the Optical Link is good.
ON when Test Function is enabled;
"Blinks" if the test pattern received has any errors.
LED Operation
11
Function
SFP+/SFP+
