Ruijie RSR10-01G-T-I Series Hardware Installation And Reference Manual page 6

Hardware Installation and Reference Guide
1 FUNC button
3 SYS indicator
5 USB indicator
7 WiFi antenna port (ANT0)
9 Speed indicator of the FE port
11 WiFi antenna port (ANT1)
13 4G antenna port (ANT1)
15 Grounding hole
17 Position of the screw used for mounting
the router on the left

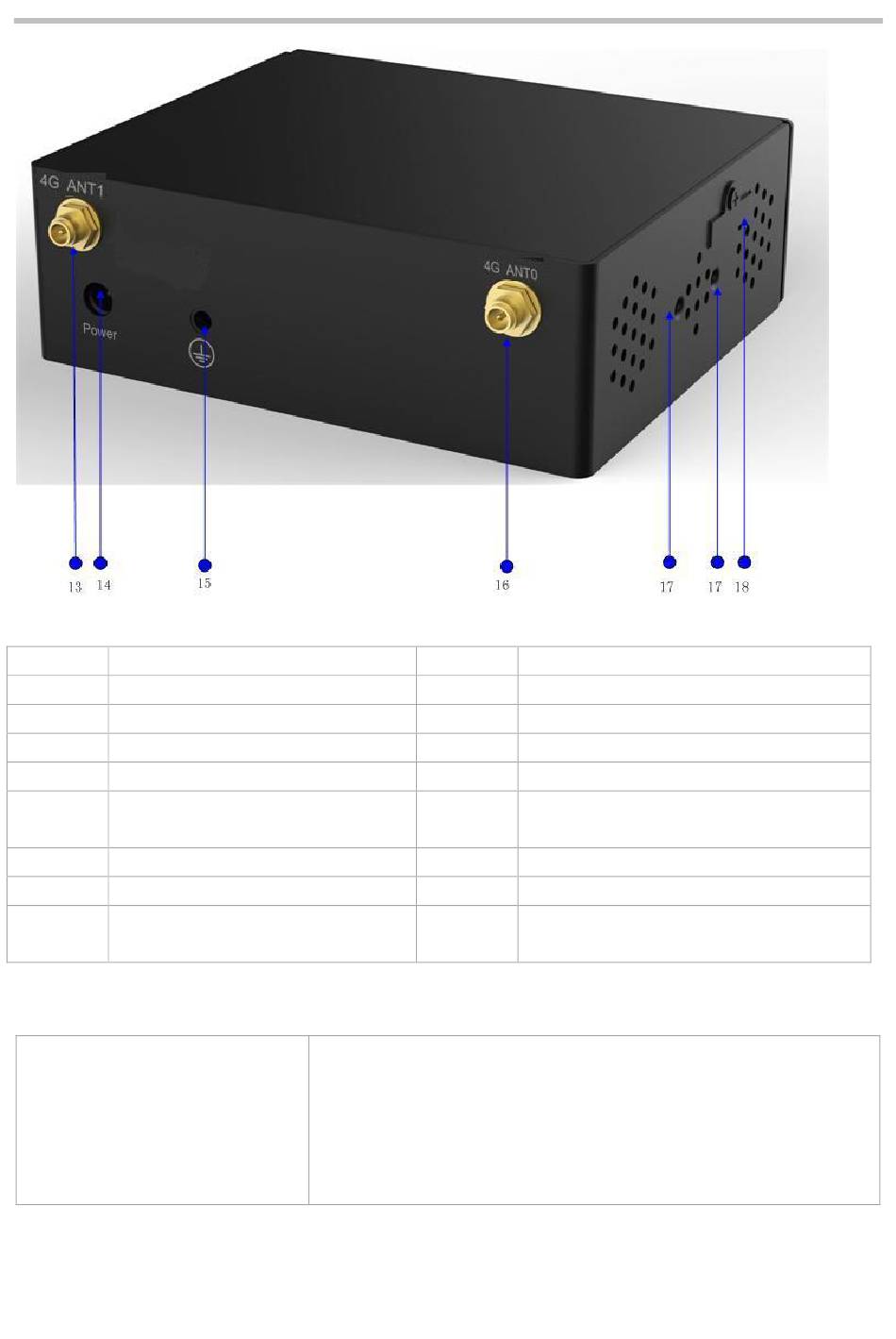

The following figure shows indicators on the front panel of the RSR10-01G-T(W)-I.
The indicators are described as follows:
SYS: system indicator
2
4
6
8
10
12
14
16
18
Off: The host is not powered on.
Blinking green: The supervisor module is powered on and the host is being
started.
Solid red: The supervisor module is powered on and the host is in abnormal
state.
Solid green: The supervisor module is powered on and startup is completed.
Product Overview
WiFi status indicator
Radio signal strength indicator
USB port
FE RJ45 port
LINK/ACT indicator of the FE port
Position of the screw used for mounting the
router on the right
Power port (connected to the power adapter)
4G antenna port (ANT0)
SIM card slot
