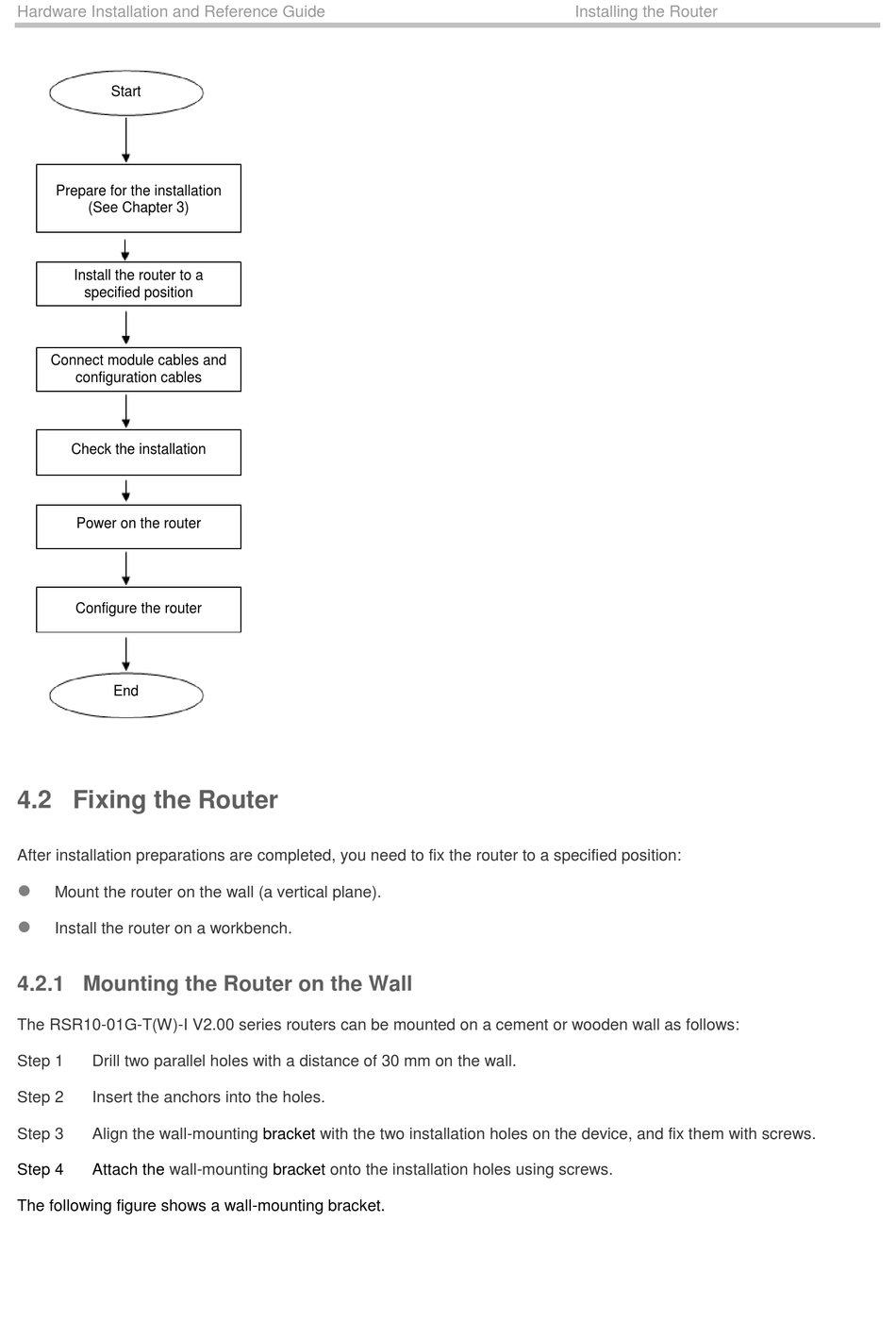

Hardware Installation and Reference Guide
Start
Prepare for the installation
(See Chapter 3)
Install the router to a
specified position
Connect module cables and
configuration cables
Check the installation
Power on the router
Configure the router
End
4.2 Fixing the Router
After installation preparations are completed, you need to fix the router to a specified position:

Mount the router on the wall (a vertical plane).

Install the router on a workbench.

4.2.1 Mounting the Router on the Wall

The RSR10-01G-T(W)-I V2.00 series routers can be mounted on a cement or wooden wall as follows:
Step 1 Drill two parallel holes with a distance of 30 mm on the wall.
Step 2 Insert the anchors into the holes.
Step 3 Align the wall-mounting
Step 4 Attach the wall-mounting
The following figure shows a wall-mounting bracket.
bracket with the two installation holes on the device, and fix them with screws.
bracket onto the installation holes using screws.
Installing the Router
