Hardware Installation and Reference Guide

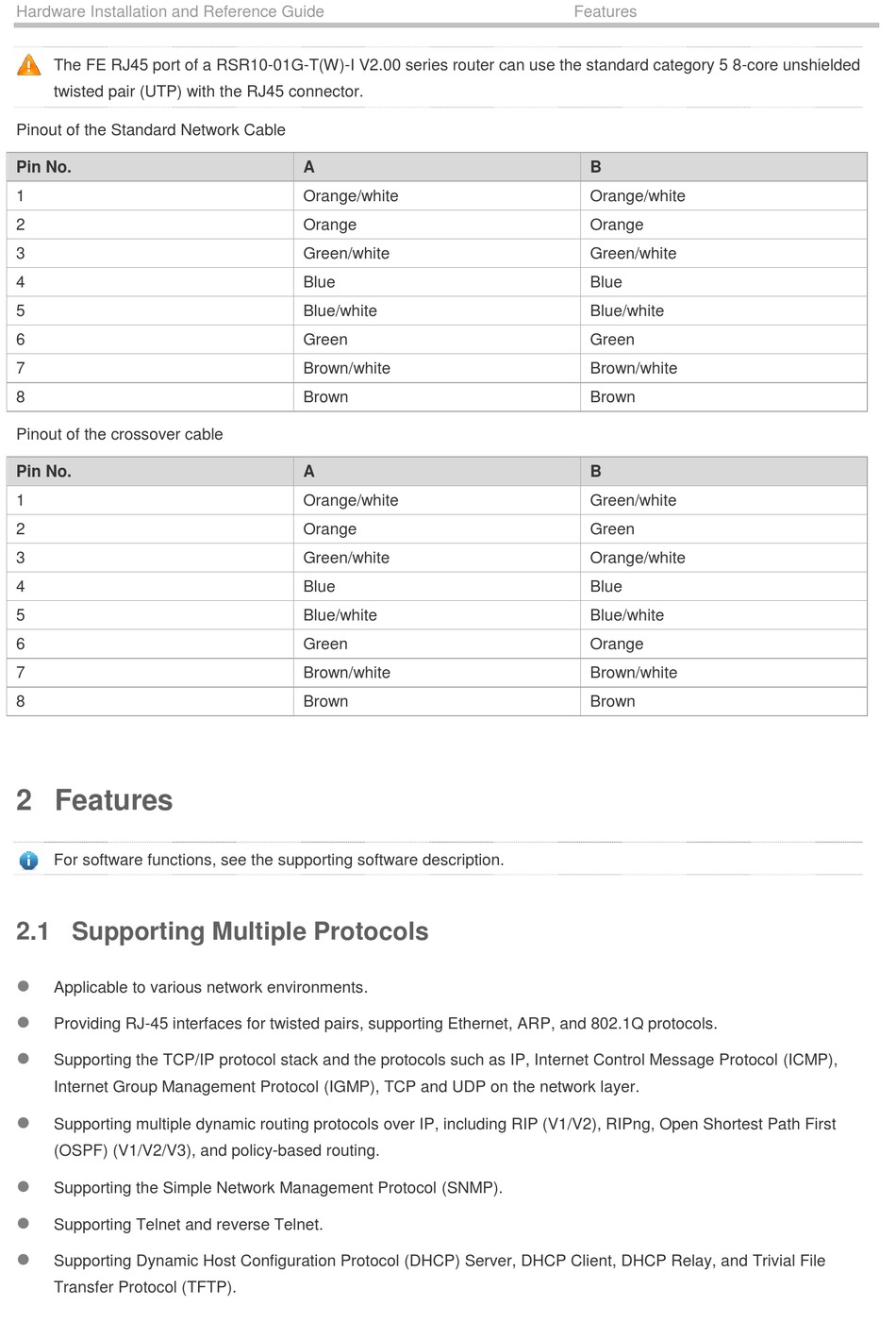

The FE RJ45 port of a RSR10-01G-T(W)-I V2.00 series router can use the standard category 5 8-core unshielded
twisted pair (UTP) with the RJ45 connector.
Pinout of the Standard Network Cable
Pin No.
1
2
3
4
5
6
7
8
Pinout of the crossover cable
Pin No.
1
2
3
4
5
6
7
8
2 Features
For software functions, see the supporting software description.

2.1 Supporting Multiple Protocols


Applicable to various network environments.

Providing RJ-45 interfaces for twisted pairs, supporting Ethernet, ARP, and 802.1Q protocols.

Supporting the TCP/IP protocol stack and the protocols such as IP, Internet Control Message Protocol (ICMP),
Internet Group Management Protocol (IGMP), TCP and UDP on the network layer.

Supporting multiple dynamic routing protocols over IP, including RIP (V1/V2), RIPng, Open Shortest Path First
(OSPF) (V1/V2/V3), and policy-based routing.

Supporting the Simple Network Management Protocol (SNMP).

Supporting Telnet and reverse Telnet.

Supporting Dynamic Host Configuration Protocol (DHCP) Server, DHCP Client, DHCP Relay, and Trivial File
Transfer Protocol (TFTP).
A
Orange/white
Orange
Green/white
Blue
Blue/white
Green
Brown/white
Brown
A
Orange/white
Orange
Green/white
Blue
Blue/white
Green
Brown/white
Brown
Features
B
Orange/white
Orange
Green/white
Blue
Blue/white
Green
Brown/white
Brown
B
Green/white
Green
Orange/white
Blue
Blue/white
Orange
Brown/white
Brown
