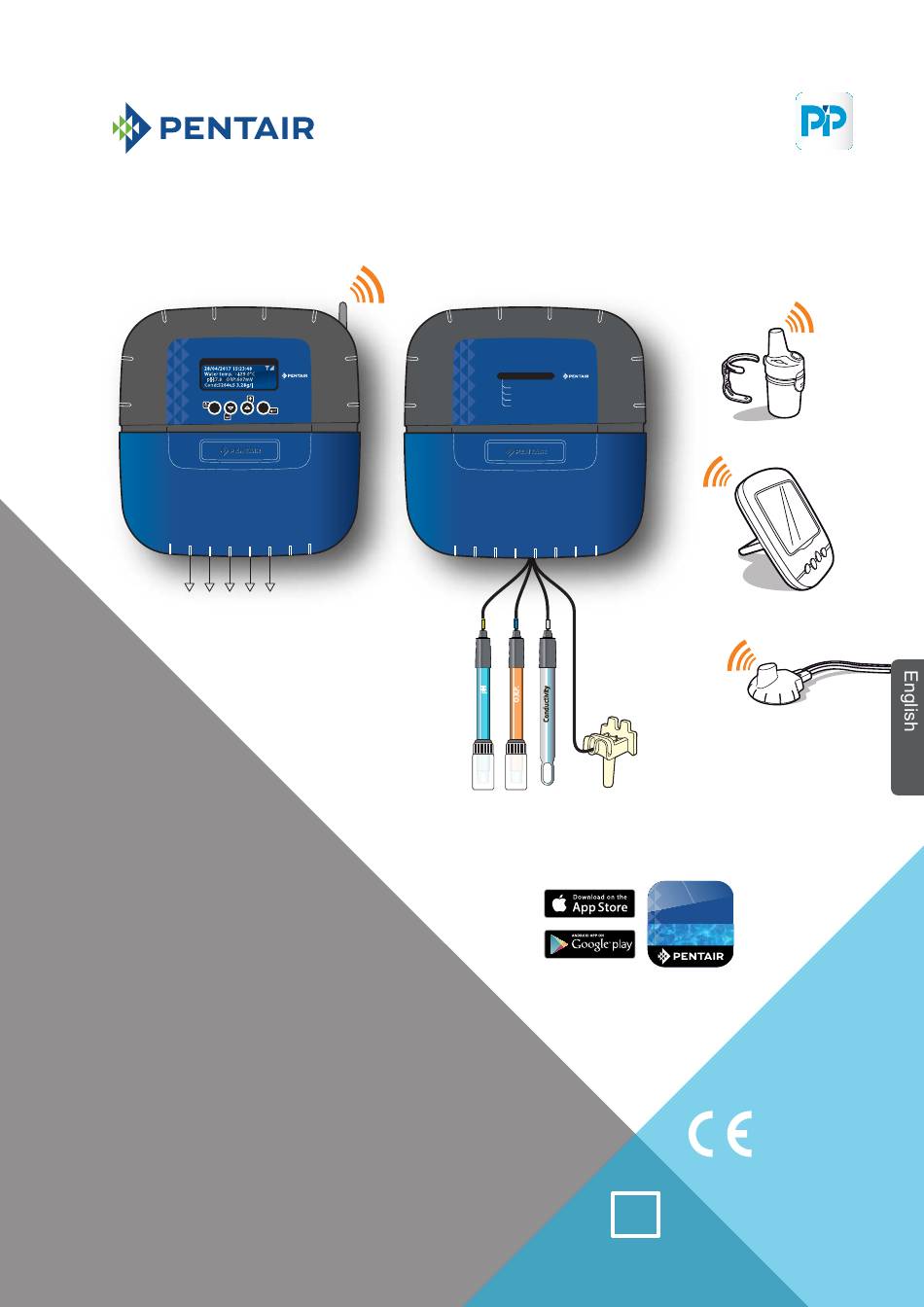

INTELLIPOOL
AUTOMATION
INTELLIPOOL
C
O
N
28/04/2017 15:23:48
Water temp. :+29.0°C
pH:7.8 ORP:607mV
Cond:5264uS 3.28g/l
ESC
1 2 3 4 5
INSTALLATION AND USER GUIDE
IMPORTANT SAFETY INSTRUCTIONS,
READ AND FOLLOW ALL OF THE INSTRUCTIONS,
KEEP THESE INSTRUCTIONS
PENTAIR WATER SOLUTIONS
SB-CU-IMP-027J
®
T
R
O
L
VALID
(Rev. 03/2019)
INTELLIPOOL
®
P R O B E
U N I T
Water temperature
pH
ORP
Conductivity
INTELLI
MAESTRO
POOL
INTP-1010B
EN
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliPool and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pentair IntelliPool

Summary of Contents for Pentair IntelliPool

  • Page 1 Cond:5264uS 3.28g/l Water temperature Conductivity VALID 1 2 3 4 5 INTELLI MAESTRO ® POOL ® INTP-1010B INSTALLATION AND USER GUIDE IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS PENTAIR WATER SOLUTIONS SB-CU-IMP-027J (Rev. 03/2019)
  • Page 2 A label with your confidential codes is affixed to the first page of the cover. This unique number (ID key) will be requested on creation of your free account (at www.intellipool.eu) An internet connection is required to access the remote management account.
  • Page 3 Trademarks and disclaimers: IntelliPool® and Pentair® are trademarks and/or registered trademarks of Pentair and/or its affiliated companies. Unless indicated otherwise, names and brands of others that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair. Those names and brands may be the trademarks or the registered trademarks of these parties, or others.
  • Page 4 IMPORTANT SAFETY GUIDELINES, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS GENERAL POINTS - DANGER - INSTALLERS, POOL SPECIALISTS AND OWNERS MUST CAREFULLY READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. - WARNING - Most countries regulate the construction, installation and operation of public swimming pools and spas, and the construction of residential pools and spas. It is important to comply with these regulations, many of which directly regulate the installation and use of this product.
  • Page 5 > Calibration of a pH sensor p 37 > Calibration of a RedOx/ORP sensor p 38 > Correction of values from the IntelliPool account p 40 > Probe Unit: How to update the internal firmware p 41 > Control Center: How to update the internal firmware p 42 >...
  • Page 6 The result is a safer pool. IntelliPool® will also be able to make substantial savings in terms of operation of your pool. Its unique control of IntelliFlo®, a variable speed pump, assures the lowest possible consumption of power while maintaining the water quality with optimal filtration.
  • Page 7 However, for IntelliFlo® VSD, be sure to: - Disable the freezing prevention function in the pump - Set the minimum and maximum speeds at the same values as in the IntelliPool® menu to manually obtain similar protection during functioning of the pump.
  • Page 8 (PC or MAC), you have access to real time data and can also work on the settings and commands. Simply connect the internet relay to your internet "box" and connection to the Pentair server is automatic. By following the instructions, and after creating your free account at www.intellipool.eu, you can connect to your installation in a few minutes.
  • Page 9 The Probe Unit must be installed close to the by-pass (the pH, ORP and Conductivity probes have 50 cm long cables) 1 -In the analysis chamber (recommended, Pentair ref. XXX), install the pH, RedOx and Conductivity probes in accordance with the diagram below. The glass conductivity probe uses the gasket and the O-ring to ensure a perfect seal.
  • Page 10 Installation of the water temperature probe INTELLIPOOL is supplied with a temperature probe which is suitable for water. It is possible to mount a second temperature probe for the air temperature used to manage the frost protection process of heated technical rooms.
  • Page 11 VALID INTELLIPOOL Pool ID: 12 345 ID Key: 1A:2B:33:99 INTP-1010B SB-SE-TEC-003A QC Passed MADE IN ITALY Pentair International Sarl Mfg Year 1234ABCD1234ABCD1234ABCD01 SCAN Avenue de Sévelin 18 230 V 50 Hz~ / IP64 / 16 W Apr-2019 433.445 MHz CH-1004 Lausanne, Switzerland Disassembly of the orange cover of the Control Center To respect the current electrical standards, a safety cover which cannot be unclipped without a tool is positioned above the connectors which guide the voltage.
  • Page 12 Control Center Hygiene of Control Center electrical connections - The device must be installed by a qualified technician according to valid local regulation - This device is permanently connected. - The power supply to the device is cut by its interrupter, which must be close and must remain accessible at all times. - The device needs to be connected to the earth and its power supply needs to be protected by 16A 30 mA differential protection.
  • Page 13 1 - Connect the 230 V. ® 2 - Connect the IntelliFlo ref 350122/10 m length cable supplied with IntelliPool 3 - Connect the green cable to Datas+ and connect the yellow cable to Datas-. Cables connected to RS-485 must remain within the building.
  • Page 14 Connection of an IntelliChlor salt chlorinator 1 - Connect the 230 V. ® 2 - Connect the IntelliFlo ref 350122/15-m cable supplied with IntelliPool 3 - Connect the green cable to Datas+ and connect the yellow cable to Datas-. ®...
  • Page 15 Connection of a pH pump to the Control Center 1 - Connect pH pump and the pH corrector level sensor as described below. 5-230 V~ AUX1 CL 230 V ~ NEUTRAL (N) EARTH Chlorine level sensor is normally open. PHASE (L) (Closed switch = empty tank) If an installation includes a pH pump and a chlorine pump, the pool's two chlorine level sensors must be...
  • Page 16 Connection of the lighting to the Control Center 1 - Connect the lighting in accordance with the power as described below Total power of lighting is lower than 1,600 W 5-230 V~ AUX1 CL 230 V ~ PHASE (L) 12 V <...
  • Page 17 9B: The air temperature is not transmitted (necessary for adding a second radio relay, see p31). SB-SE-PER-003C MADE IN ITALY 4 x LR6 / IP65 433.445 MHz Pentair International LLC, Av de Sevellin 18, CH-1004 LAUSANNE, Switzerland T°ext = ON T°ext = OFF Only use high-quality alkaline batteries resistant to temperatures above +70 °...
  • Page 18 Radio relay The radio relay may be exposed to very high temperatures. Using high-quality alkaline batteries resistant to temperatures up to +70 °C (for example DURACELL PROCELL) is necessary. 1 - Remove the pot by pulling on the tab 2 - Install the 4 AA batteries (supplied) 3 - Re-connect the battery support 4 - The red LED flashes.
  • Page 19 Menu Lighting Manual / Program / Off Colour: 0 The settings of the rotation speeds of the IntelliFlo can be Schedule settings accessed via the IntelliFlo menu at www.intellipool.eu Filtration menu Auto /On / Off / Program Shock Filtration setting...
  • Page 20 Special settings (restricted) This menu enables the installer to customise the settings in accordance with the particularities of an installation. Modifying these parameters may have critical consequences for the pool. We advise you to have the modified settings checked by a professional. Access the SETTINGS MENU and simultaneously press ESC &...
  • Page 21 Statuses/current values/activity from previous days This menu displays the current values and values from the previous 64 days of each of the parameters and the operating duration of each connected element (daily average). Alternative display ¥ ¥ 07/12/2013 15:23:48 - M e n u S e t t i n g s I nte l l i Fl o I nte l l i C hl o r Water temp.
  • Page 22 Lighting/filtration/AUX1 menus Menus for controlling filtration, lighting and AUX1. - M e nu S e t t i n gs 0 7 / 1 2 / 2 0 1 3 1 5 : 2 3 : 4 8 - M e nu L i ght i ng Wate r te m p .
  • Page 23 /language/time menu IntelliPool® is factory pre-set to the recommended Pentair value. These parameters can be modified. - M e nu S et ting s S E T TIN G S M ENU - M e nu L ig htin g -pH/D is i n fec t.
  • Page 24 Alert messages Meaning of alert messages. !! !! ! !! ! !! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! L ighti ng s e t ! Ant i -fre ez i n g m od e ! to O...
  • Page 25 7 - To access your system, enter the login and password that you have created and click “connect” INTELLIPOOL Pool ID: 12 345 ID Key: 1A:2B:33:99 At www.intellipool.eu, create an account by completing the required fields REMOTE ADMINISTRATION User identi cation Password >...
  • Page 26 Menus at www.intellipool.eu Summary menu The summary menu is the main menu. It is a dashboard which displays all the parameters of the current situation Pool cover deployed Date and time of the last piece of...
  • Page 27 Set point menu This menu makes it possible to fix all the set points of the connected equipment. Some parameters can only be accessed according to the type of account Set points: 45000 Set the Control Center to the time of the Heating pump value to be achieved in AUTO computer Synchronise time...
  • Page 28 IntelliFlo® pump equipped with a variable frequency VS, VF or VSD reader. Before setting the speed in the menu in IntelliPool®, we advise you to launch an operational test with the aim of establishing the most functional speed settings. You can do this before the actual installation or by disconnecting the IntelliFlo® communication cable. In this way, you can use the pump keypad to quickly change speeds on the pump.
  • Page 29 Email and alarm menus These two menus make it possible to configure different alarms which may differ from the indoor display alarms. The alarm values also determine the display of the ticks and the crosses in the SUMMARY and HISTORY menus. Green = active configuration Grey = inactive configuration Emails: 45000...
  • Page 30 History menu The history menu is a powerful tool that allows you to analyse and compare data from your installation. In many situations, this tool will permit a professional to resolve problems without needing to visit the site. The data is available for 10 years. Cursor can be moved by 1 hour/1 day/1 month segments.
  • Page 31 Indoor display The remote indoor display provides information on all the parameters (updates every 15 minutes) of the water quality and comfort. Intended for internal use, pre-programmed alerts make it possible to check the chemical balance of the water at a glance without needing to perform cumbersome analyses at the edge of the tank.
  • Page 32 MADE IN ITALY 4 x LR6 / IP40 REFRESHING OF VALUES 433.445 MHz Pentair International LLC, One full cycle (ON > CALIB > ON or ON > ALARM > ON) Av de Sevellin 18, CH-1004 LAUSANNE, Switzerland “refreshes” the values on the screen after 20 seconds...
  • Page 33 Radio signal strength The radio range of the IntelliPool network depends on the geographical installation of the radio relay and the indoor display (a long distance, a pool which is raised in relation to the house and the presence of a perimeter wall are detrimental), the house material (reinforced concrete and a metallic building are detrimental) and the radio relay support (a metal stake or galvanised rainwater downpipe are detrimental ).
  • Page 34 Conductivity/Salt concentration Ability of the water to permit passage of an electrical current; the conductivity is proportional to the concentration of dissolved minerals (which partially come from water treatment products). The µS value reveals “the age of your pool's water”. The conductivity unit (µS or g/l) is selected by the calibration mode/unit change (see p34).
  • Page 35 pH value The pH is a scale (without any units) measuring the acidity (0 to 7) or the alkalinity (7 to 14) of the pool. The pH is the concentration of the hydrogen ions. For a swimming pool, the ideal pH which is generally advised is close to 7.3 (to be confirmed by your swimming pool supplier according to your installation).
  • Page 36 Re-learning of the original indoor display The elements which constitute a set are paired with a unique radio code which prevents any risk of interference with other IntelliPool units (in the vicinity, several pools close together) as a factory setting.
  • Page 37 ALARM MODE - Modification of the alarm set point values This mode makes it possible to modify the set point value of: - The upper pH alarm (factory setting 7.9) - The lower pH alarm (factory setting 6.7) - The upper conductivity alarm (factory setting 1,200 µS) - The lower conductivity alarm (factory setting 50 µS) - The upper RedOx alarm (factory setting 800 mV) - The lower RedOx alarm (factory setting 500 mV)
  • Page 38 1 - Put the switch in Calib. mode (on the back of the indoor display) 2 - Follow the procedure. 3 - When the modifications are approved, put the switch back in ON mode. This correction only influences the indoor display, not the values read on the Intellipool.eu server calib on alarm...
  • Page 39 CALIB MODE - Calibration of a pH sensor Due to its nature, a pH probe needs to be regularly re-calibrated (ideally before the season). If this has been forgotten, a “probe check” message will appear on the screen of the Control Center. Its service life is approximately 2 years. For this operation, equip yourself with the pH probe, some DOMOK and the supplied pH4 and pH7 calibration bottles.
  • Page 40 CALIB MODE - Calibration of a RedOx probe The RedOx probe can be re-calibrated. By nature, a RedOx probe only drifts a little and only needs to be re-calibrated in exceptional cases. This is why RedOx calibration solutions are not supplied and their storage is not allowed to exceed 2 years. The service life of a RedOx probe is approximately 5 years.
  • Page 41 Correction of values from the IntelliPool account Despite calibration of the measurement sensors, a value may be out of step with another measurement marker (usual thermometer, etc.). For this, you have the option of voluntarily correcting certain values and/or air and water temperature units (pre-set in the factory at °C) and the conductivity (pre-set in the factory in µS).
  • Page 42 Probe Unit: How to update the internal firmware The Probe Unit can be updated or reflashed. This procedure is reserved for qualified professionals with good IT knowledge 1.1 - Unzip the MAESTRO Probe UnitXXX.zip file to obtain the Pxxxo.bin. file. 1.2 - Copy the Pxxxo.bin file to the main folder of the USB stick formatted to FAT 16 or FAT 32.
  • Page 43 Control Center: How to update the internal firmware The Control Center can be updated or reflashed. This procedure is reserved for qualified professionals with good IT knowledge. The update file is available at Intellipool.eu/téléchargement. 1 - Preparation of the PC - Make sure to have a surface to place the laptop on.
  • Page 44 Probe Unit: Cleaning of the pH or ORP probe. Deposition of scale or suspended elements in the pool may occur. The probes are fragile measuring parts, they need to be carefully cleaned. In particular, do not scratch the platinised surfaces of the electrodes of the conductivity probe. - Protective glasses and gloves must be worn for these cleaning operations.

  • Page 45: Spare Parts

    Spare parts The original spare parts required to maintain your Pentair device are available from your dealer. USE OF PARTS OTHER THAN GENIUS PENTAIR PARTS INVALIDATES THE WARRANTY.
