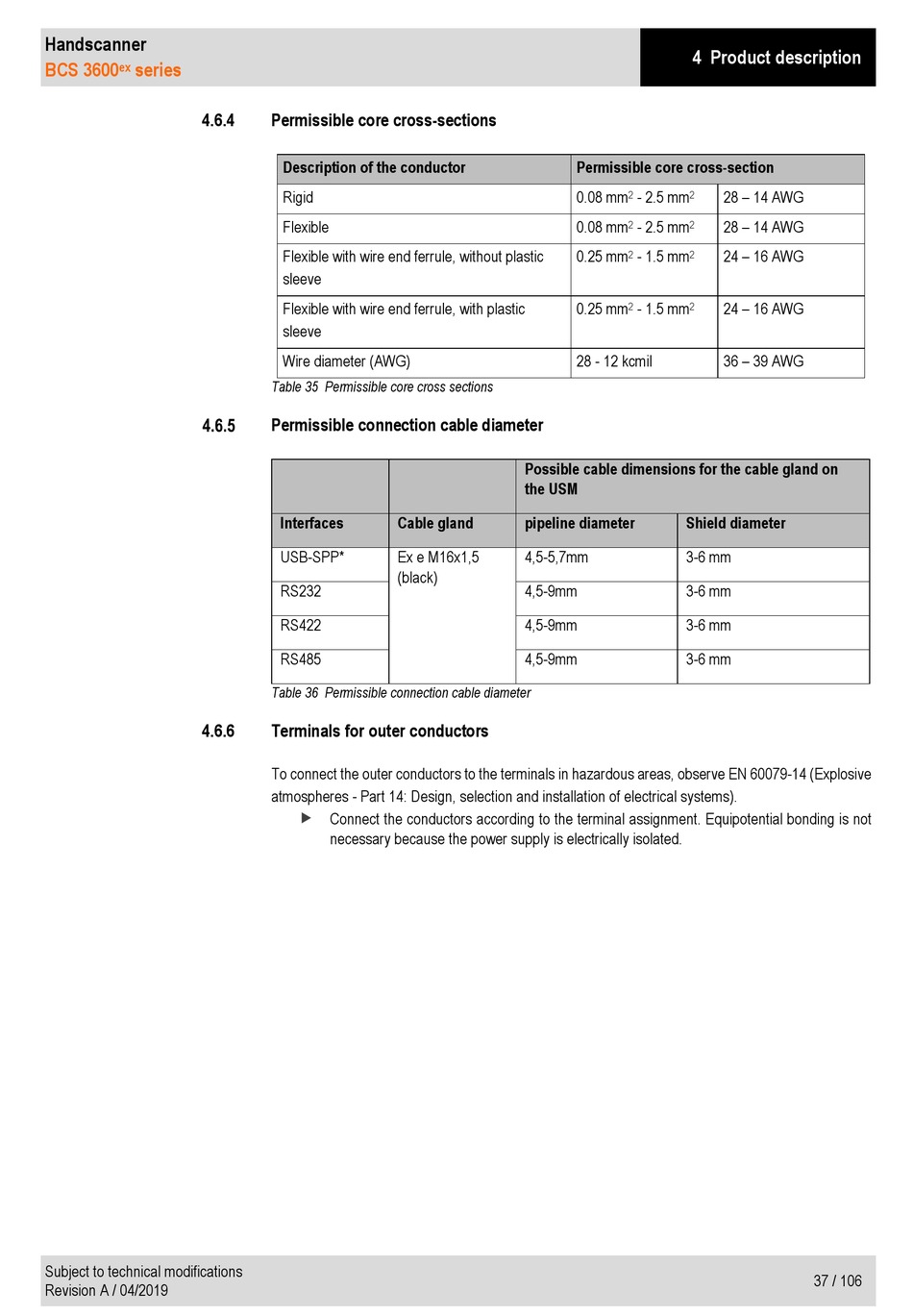

Permissible core cross-sections

Description of the conductor
Rigid
Flexible
Flexible with wire end ferrule, without plastic
sleeve
Flexible with wire end ferrule, with plastic
sleeve
Wire diameter (AWG)
Table 35 Permissible core cross sections

Permissible connection cable diameter

Interfaces Cable gland
USB-SPP* Ex e M16x1,5
(black)
RS232
RS422
RS485
Table 36 Permissible connection cable diameter

Terminals for outer conductors

To connect the outer conductors to the terminals in hazardous areas, observe EN 60079-14 (Explosive
atmospheres - Part 14: Design, selection and installation of electrical systems).
Connect the conductors according to the terminal assignment. Equipotential bonding is not

necessary because the power supply is electrically isolated.
4 Product description
Permissible core cross-section
0.08 mm - 2.5 mm
2 2
0.08 mm - 2.5 mm
2 2
0.25 mm - 1.5 mm
2 2
0.25 mm - 1.5 mm
2 2
28 - 12 kcmil
Possible cable dimensions for the cable gland on
the USM
pipeline diameter Shield diameter
4,5-5,7mm 3-6 mm
4,5-9mm 3-6 mm
4,5-9mm 3-6 mm
4,5-9mm 3-6 mm
28 – 14 AWG
28 – 14 AWG
24 – 16 AWG
24 – 16 AWG
36 – 39 AWG
